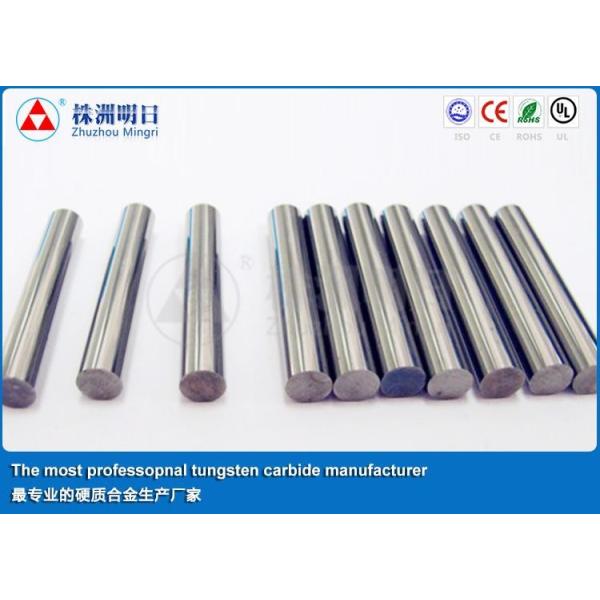

K10 K20 K30 K40 Tungsten Carbide Rod for End Mill and Drill
K10 K20 K30 K40 Tungsten Carbide Rod for End Mill and Drill
Specifications
Brand Name :
Ri Xin
Model Number :
Various
Certification :
ISO9001:2008 ISO14001:2004
Place of Origin :
china
MOQ :
5kg
Supply Ability :
30 ton per month
Delivery Time :
7-20 days depending on the quantity
Packaging Details :
First in small cartons filled with cotton, then in bigger cartons.
Product Name :
K10 K20 K30 K40 Tungsten Carbide Rod for End Mill and Drill from China
Material :
tungsten carbide
Grade :
K10, K20, K30, K40
Grain size :
Medium or fine
Type :
Solid Carbide Rods
Application :
End mill, drill
Description

K10 K20 K30 K40 Tungsten Carbide Rod for End Mill and Drill

Grade:

Grade

Density
g/cm3

T.R.S
MPα

Hardness
HRA

Properties & Applications

YL50

13.86

2060

1095

It is suitable for manufacturing punching dies and tools.

YU06

14.7

3000

2050

It is suitable for manufacturing milling cutters for machining PCB. It is also suitable for manufacturing various kinds of solid cemented carbide tools for machining glass fiber, wood, plastics, paper and brass, Al alloy etc.

YU08

14.56

4000

1900

It is suitable for manufacturing micro-drills with diameter less than 0.8mm for machining PCB. It is also suitable for manufacturing various kinds of solid cemented carbide tools for machining glass fiber, wood, plastics, paper and brass, Al alloy etc.

YU09

14.36

3900

1950

It is suitable for manufacturing micro-drills for machining PCB. It is also suitable for manufacturing various kinds of solid cemented carbide tools for machining glass fiber, wood, plastics, paper and brass, Al alloy etc.

YU12

14.05

4000

1750

It is suitable for manufacturing solid cemented carbide tools for machining steels that are corrosion and heat resistant steel, stainless steel, titanium alloy, and non-ferrous metals.

YF06

14.86

3800

1800

It is suitable for manufacturing drills with big diameters of 3.2-6.3mm for machining PCB, drills of 0.8-3.2mm and mills, and it is also suitable for making solid carbide tools for machining aluminum alloy, plastic, PTFE and compound materials, such as carbon fiber, etc.

YF08

14.55

3900

1800

It is suitable for manufacturing micro-drills for machining PCB. It is also suitable for manufacturing various kinds of solid cemented carbide tools for machining glass fiber, wood, plastics, paper and brass, Al alloy, etc.

YG6X

14.8

1800

1550

It is suitable for manufacturing solid carbide tools and wear parts.

YG8

14.6

2400

1400

It is suitable for manufacturing carbide core rods and wear parts.

YL10.2

14.5

4000

1550

It is suitable for manufacturing various kinds of solid cemented carbide tools for machining heat-resistant alloys and Ti alloy etc. It is also suitable for manufacturing micro-drills for machining PCB.

Size and drawing:

Solid carbide rod

K10 K20 K30 K40 Tungsten Carbide Rod for End Mill and Drill

(Unit):mm

Diameter

Tolerance

Length

Tolerance

D≤5

0-0.3

330<L

0-6.0

5<D≤20

0-0.4

20<D

0.1-0.6

310mm or 330mm

(Unit):mm

Diameter

Tolerance

Diameter

Tolerance

1.2


+0.20

16.7


+0.50

1.7

17.2

2.2

17.7

2.7

18.2


+0.60

3.2

18.7

3.7

19.2

4.2

19.7

4.7

20.2

5.2

20.7

5.7


+0.25

21.2

6.2

21.7

6.7

22.2

7.2

22.7

7.7

23.2

8.2


+0.30

23.7

8.7

24.2


+0.70

9.2

25.2

9.7

25.7

10.2

26.2

10.7

27.2

11.2


+0.35

28.2

11.7

29.2

12.2

30.2

12.7


+0.45

31.2

13.2

32.2

13.7

33.2

0.80

14.2


+0.50

34.2

14.7

35.5

15.2

36.2

15.7

382

16.2

40.2

Description:

With high hardness and wear / corrosion resistance, suitable for the manufacturing of various kind of

solid cemented carbide tools for the machining of heat-resistant alloy and Ti alloy,also suitable for

the manufacturing of micro drills used for machining PCB.

--ground and unground;

--with one coolant hole or two coolant holes or without coolant hole;

--Dimension: diameter from 3-25mm, length from 38-330mm;

Applications:

Used in welding/ making the drill bits/ endmills / reamers .automobile special cutters, printed circuit board

special cutters, engine special cutters, Horologe processing special cutters, integral vertical milling cutter,

graver and etc. Besides, they can bu used for making of cemented carbide stamping head, Core

bar and perforation tools.

End mills and drills:

K10 K20 K30 K40 Tungsten Carbide Rod for End Mill and Drill
