Tungsten Carbide Tooling for making Punching Dies and Heading Dies
Tungsten Carbide Tooling for making Punching Dies and Heading Dies
Specifications
Brand Name :
none
Model Number :
many
Certification :
ISO9001:2008 ISO:14001:2004
Place of Origin :
Zhuzhou Hunan China
MOQ :
10kg
Supply Ability :
20 tons / month
Delivery Time :
2-3 weeks
Packaging Details :
Packed in small cartons firstly, then in big cartons or wood cases
Product Name :
Cemented carbide pellets
Application :
Cold heading dies, puching dies
Grade :
GT55/YG25C
Components :
WC 75%, Co 25%
Hardness :
HV:855-950, HRA:84.5~85.5
Transverse Rupture Stress :
2800 N/mm Square
Surface :
polished or sandblasted
Description

Tungsten Carbide Tooling for making Punching Dies and Heading Dies

Description:

  1. Cemented carbide pellets are widely used in cold heading dies and punching dies for maufacturing nuts, bolts and many other products.
  2. The grade GT55/YG25C is the most widely used material in making carbide pellets. It has excellent properties which lead to good performance and long service time.
  3. Except for the standard sizes, nonstandard sizes of carbide pellets can also be produced according to customer's requirements. You have our promise for good qualityand good pre-sale & after-sale service.
  4. All carbide pellets inspected strictly with ultrasonic flaw detector to avoid ones with blowholes or cracks leaving the factory.

Applications:

Cemented carbide pellets are widely used in cold heading dies and punching dies for maufacturing nuts, screw caps, bolts, cans and many other products.

Specifications:

Including but not limited to the following types.

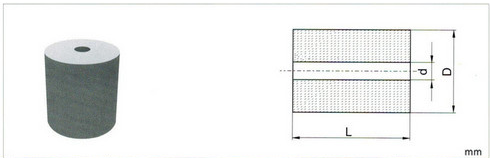

Tungsten Carbide Tooling for making Punching Dies and Heading Dies


Type
Dinension
Appllcable
d D L
Range of L
BDP00710- 0.7 10 12.0-20.0 M1
BDP01010- 1.0 10 12.0-20.0 M1.5-M2
BDP01013- 1.0 13 15.0-40.0 M1.5-M2
BDP01213- 1.2 13 15.0-40.0 M1.5-M2
BDP01510- 1.5 10 12.0-25.0 M2
BDP01516- 1.5 16 15.0-45.0 M2
BDP01813- 1.8 13 12.0-45.0 M2.5
BDP01816- 1.8 16 20.0-45.0 M2.5
BDP02113- 2.1 13 15.0-30.0 M3
BDP02116- 2.1 16 25.0-45.0 M3
BDP02316- 2.3 16 15.0-45.0 M3
BDP02522- 2.5 22 20.0-60.0 M3
BDP02813- 2.8 13 15.0-30.0 M4
BDP02816- 2.8 16 25.0-40.0 M4
BDP02818- 2.8 18 20.0-50.0 M4
BDP02820- 2.8 20 20.0-50.0 M4
BDP02822- 2.8 22 20.0-60.0 M4
BDP02825- 2.8 25 20.0-60.0 M4
BDP03216- 3.2 16 15.0-45.0 M4
BDP03218- 3.2 18 15.0-50.0 M4
BDP03616- 3.6 16 20.0-50.0 M5
BDP03618- 3.6 18 20.0-60.0 M5
BDP03822- 3.8 22 20.0-40.0 M5
BDP03830- 3.8 30 50.0-60.0 M5

Other sizes can be supplied according to customer’s requirements.
