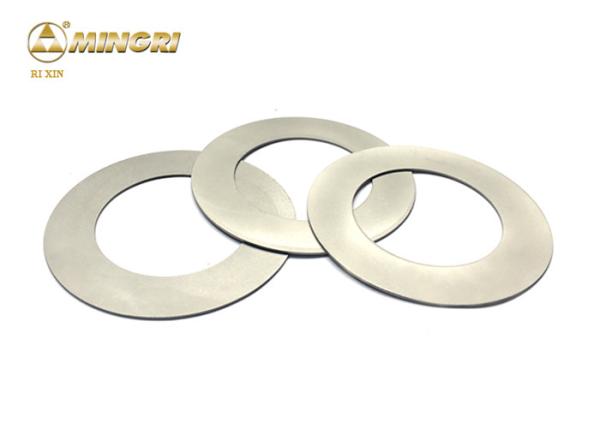

High Precision Circular Tungsten Carbide Products Round Knife For Cutting Battery Film
High Precision Circular Tungsten Carbide Products Round Knife For Cutting Battery Film
High Precision Circular Tungsten Carbide Products Round Knife For Cutting Battery Film
High Precision Circular Tungsten Carbide Products Round Knife For Cutting Battery Film
Specifications
Brand Name :
RI XIN
Model Number :
K10,K20,K30,K05,K40
Certification :
ISO9001:2008 ISO14001:2004
Place of Origin :
ZHUZHOU,HUNAN,CHINA
MOQ :
5KG
Price :
As per specific requirements
Payment Terms :
L/C, D/A, D/P, T/T
Supply Ability :
50 Tons per month
Delivery Time :
7-20 days
Packaging Details :
First in small cartons filled with cotton, then in bigger cartons.
Material :
WC,Cobalt
Grade :
SH6A,SH10A,SH25,SH30,SH35
Application :
Metal And Wood Cutting
Surface Treatment :
Polishing,sand-blasting
Size :
Customer Requst
Features :
High hardness,Good impact resistance,High wear resistance
Hardness :
90-93 HRA
TRS :
2400-3600
Description

Tungsten Carbide Blade For cutting Battery Foil Cutting round knives

§.Advantages of zhuzhou mingri cemented carbide battery cutting blade
>>1.Improved durability and wear-life, up to 600% better than standard steels;
>>2.Greater productivity and less down time due to fewer blade changes;
>>3.Cleaner and more precise cuts due to reduced friction;
>>4.Reduction in start-up and end of line waste;
>>5.Better overall cutting performance in high heat and high speed cutting environments.

Applications:

Tungsten carbide disc cutter is suitable for semifinishing the chilled cast iron, nonferrous

metal and its alloy. It is also suitable for semifinishing and finishing the hardened steel

and alloy steel.

Grade and Applications:

Grade

Density

g/cm3

T.R.S

MPα

Hardness

HRA

 Properties & Applications

Approx

Grades

in China

 ISO
SH6A 14.9 1850 92

Fine grain alloy, good wear resistance. It is suitable for machining the chilled cast iron, nonferrous metal and its alloy. It is also suitable for semifinishing and finishing the hardened steel and alloy steel.

 YG6A K10
SH10A 14.8 2450 90.5

High wear resistance and bending strength, suitable for disc cutters in electronics industry.

 _ K20-K30
SH25 14.8 2200 89.5

Higher strength, impact and shock resistance than SH6A, but lower in wear resistance and cutting speed. It is suitable for rough machining cast iron, nonferrous metal and its alloy as well as non metallic materials at low cutting speed.

 YG8 K20
SH30 14.7 2320 89.5

Higher strength, impact and shock resistance than SH25, but lower in wear resistance and cutting speed. It is suitable for rough machining cast iron, nonferrous metal and its alloy as well as non metallic materials at low cutting speed.

 YG8 K20
SH35 14.5 2200 91

Fine grain alloy with good wear resistance. It is suitable for machining hard wood, plywood,PCB, PVC and metals.

 YG10X K10-K20
SH40 14.5 2480 92

Fine grade alloy with high wear resistance, bending strength, bonding resistance and thermal strength. It is suitable for machining plywood, PCB, PVC,refractory alloys, stainless steel and high manganese steel etc.

 YS2T K10-K20
SH50 14.3 2420 90

Moderate wear resistance and bending strength ,suitable for machining steel alloy etc.

 _

K20-K30

Common size:OD*ID*T(mm)

Description Size Standard Chamfer degree

Non standard

Chamfer degree

 Burr requirement
Continuous up cutter 130*88*1.0 30 degree 26degree Vertical 0.007-0.01
Continuous down cutter 130*70*3.0 90 degree Horizontal 0.007-0.01
Continuous up cutter 130*97*0.7 Vertical 0.007-0.01
Continuous down cutter 130*95*4.0 Horizontal 0.007-0.01
Continuous up cutter 130*97*1.0 Vertical 0.007-0.01
Continuous down cutter 130*95*5.0 Horizontal 0.007-0.01

Characteristic :The blade has good appearance,high consistency and wear resisitance,the cutting edge can pass the inspection of enlarging 200 times without chips on it.Guranteed cutting quality,long working life,also the frequency of replacing blades is very low with high cost performance

High Precision Circular Tungsten Carbide Products Round Knife For Cutting Battery Film

1, Soon after the order is confirmed, tungsten carbide steel knife products will start to prepare the RTP powder as per customer’s requirement with our wet-grinding machine

2, Before mass production, we need to do a trial pressing and sintering using every mould, and we check the appearances and the sizes of tungsten carbide steel knife samples with micrometer, projectors etc. to ensure that the requirements of the drawings can be met before batch production

3, Bulk production ,press the raw materials to shape blanks,and all tungsten carbide steel knife blanks must be passed by semi finished inspection,


4, Then sinter blanks to finish (HIP) and finished products inspection, we have 10 sets of vacuum sintering furnace and 2 sets of HIP in the factory ensure the best quality and production capacity.

Packing and delivery:

1. Rubber protector for cutting edges, blade in bubble pack, carton case.

Max 10 pcs blades in one carton case

2. Exterior packaging: carton or wooden case

3. Other packaging upon your request

4. We also have the professional agents shipping our products to the customers.

High Precision Circular Tungsten Carbide Products Round Knife For Cutting Battery Film

After service

Enquiry: We will respond all enquiries within 24 hours (enquiries with drawings or samples) and provide quotation within 48 hours.


Order: When the order is confirmed, all the drawings and samples will be converted into CAD drawing. We will arrange time schedule for producing customer order after design drawings are confirmed by both parties. During the producing period, we will update tracking and recording progress and feedback to customers regularly.


Inspection: The inspecting work will run through the production. There is also a second inspection before delivery, in order to make sure our products are in good condition.

Packaging: All knives are packed with anti-rust paper and edge protection rubber. Corrugated paper carton will be used. Big knives will be protected by wood case with bolts. Ensure products are 100% safe and sound during delivery.

Delivery: We are the first choose UPS, TNT, DHL, FEDEX as the shippment, You can trace delivery status timely.

After-sale service: We are responsible for every piece of knife of our company. We have the ability to examine all of your cutting applications and offer you the very best solutions to help improve your performance and accuracy.
