Rotary WC Tungsten Carbide Buttons 90.3HRA For Percussion Drilling
Rotary WC Tungsten Carbide Buttons 90.3HRA For Percussion Drilling
Rotary WC Tungsten Carbide Buttons 90.3HRA For Percussion Drilling
Rotary WC Tungsten Carbide Buttons 90.3HRA For Percussion Drilling
Rotary WC Tungsten Carbide Buttons 90.3HRA For Percussion Drilling
Rotary WC Tungsten Carbide Buttons 90.3HRA For Percussion Drilling
Rotary WC Tungsten Carbide Buttons 90.3HRA For Percussion Drilling
Rotary WC Tungsten Carbide Buttons 90.3HRA For Percussion Drilling
Rotary WC Tungsten Carbide Buttons 90.3HRA For Percussion Drilling
Rotary WC Tungsten Carbide Buttons 90.3HRA For Percussion Drilling
Specifications
Brand Name :
JWE
Model Number :
JK10.2/JK10.2T/JK30.4
Certification :
ISO 9001:2015
Place of Origin :
MADE IN CHINA
MOQ :
20.00 KGS
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
1000 tons per year
Delivery Time :
10-20 WORKING DAYS
Packaging Details :
41cm*20cm*12cm/ CUSTOMIZED
Materials :
WC Tungsten Carbide
Grade :
JK10.2/JK30.4/JK20.8
Type :
CUSTOMIZED
Process :
HIP SINTERED
Description

JK10.2T, JK20.8/JK30.4 Tungsten Carbide Buttons 90.3HRA Mining, Quarrying, Construction Cutting bits

Introduction:

The carbide button is sintered by coarse-grained cemented carbide, with properties of high hardness and good transverse-rupture strength, as well as corrosion resistance, resistance to acid and alkali, long service life.

These kinds of carbide buttons can be classified as follows:

1.cutting tips used by cold pavement milling-planing machine,

2.cutting tips used by coal digging machine,

3.cutting tips used by roadway and tunnel boring machine,

4.cutting tips used by trench excavator, etc.

They are widely used for crushing or milling rocks, concrete, soil mulching, etc.

* Application:

It is suitable for percussion drilling, rotary prospecting bits to cut soft and medium-hard formations, and medium-hard drilling bits, also used for hardwood, non-ferrous metal, granite, and marble.

* Recommend grades for tungsten carbide buttons bits:

Grade Cobalt Corecivity Density Hardness

JK10.2T 5.4 6.0 11.6 13.2 14.86 15.05 89.8 90.8
JK20.8 7.5 8.5 3.7 4.3 14.60 14.75 85.3 86.8
JK25.5N 7.3 8.2 3.8 4.8 14.50 14.70 85.0 86.5
JK25.8 8.0 9.0 3.6 4.2 14.55 14.70 85.0 86.5
JK30.4 8.6 10.0 3.8 4.8 14.45 14.60 85.5 87.0

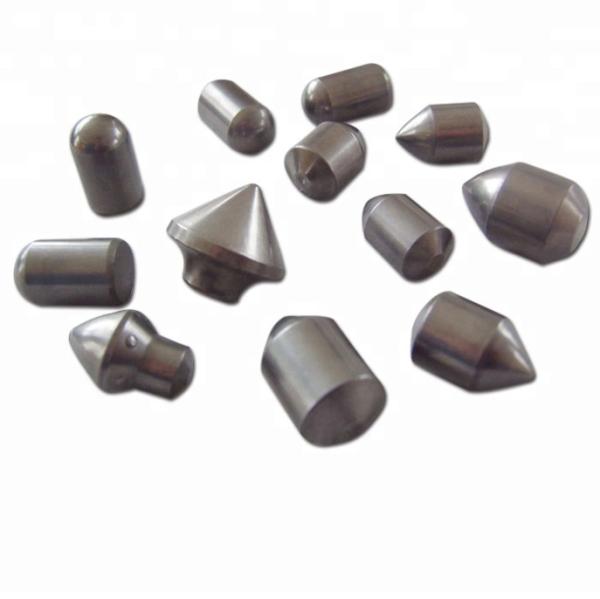

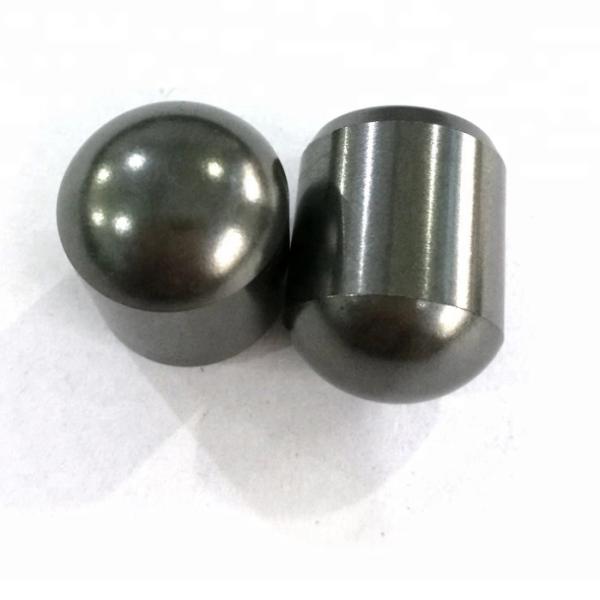

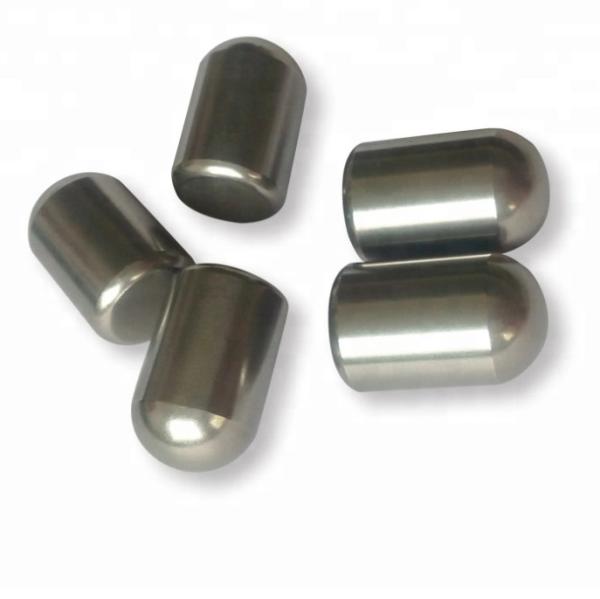

Product Demonstration:

Rotary WC Tungsten Carbide Buttons 90.3HRA For Percussion Drilling

Rotary WC Tungsten Carbide Buttons 90.3HRA For Percussion Drilling

Rotary WC Tungsten Carbide Buttons 90.3HRA For Percussion Drilling

Rotary WC Tungsten Carbide Buttons 90.3HRA For Percussion Drilling

Rotary WC Tungsten Carbide Buttons 90.3HRA For Percussion Drilling

Rotary WC Tungsten Carbide Buttons 90.3HRA For Percussion Drilling

Rotary WC Tungsten Carbide Buttons 90.3HRA For Percussion Drilling

FAQ
Q: Are you a trading company or manufacturer?
A: We are a professional factory for 15 years.
Q: Trade Assurance?
A: We have joined the Trade Assurance on Alibaba to protect your payment to make sure that we deliver on time and manufacture quality products as required.
Q: How to send an inquiry?
A: It's better to send us detailed specifications of products, it's better attaching some photos for better understanding, You
can:-Send us an inquiry from the Alibaba.com platform.-Send email to us directly, salespersons always wait for service at work.
Q: How do you guarantee your quality?
Firstly, we do a quality test during every process. And we use production instruction cards when one process finished, the work will be signed on the production instruction cards. Secondly, we will collect all comments on our products from customers in time. And try our best to improve quality all the time.
Q: Do you offer samples?
A: Yes, we do offer samples. However, buyers need to pay for the freight charge. In addition, whether samples are free or not depends on the quantity you buy.
Q: What kinds of payment do you accept?
A: In addition to the patterns of payment shown above, you can discuss with us in which way you would like to pay.
