L 10mm 89.8HRA Tungsten Carbide Turning Tips For Making End Tools
L 10mm 89.8HRA Tungsten Carbide Turning Tips For Making End Tools
L 10mm 89.8HRA Tungsten Carbide Turning Tips For Making End Tools
L 10mm 89.8HRA Tungsten Carbide Turning Tips For Making End Tools
Specifications
Brand Name :
JWE
Model Number :
A3
Certification :
ISO9001-2015
Place of Origin :
Zhuzhou, China
MOQ :
1KG
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
50T per month
Delivery Time :
5-15 days
Packaging Details :
Carton Box
Material :
Tungsten Carbide
Product Name :
Carbide BrazedTips
Grade :
YG8 / Customized
Hardness :
89.8HRA/88.8HRA
Package :
Carton Box
Stock :
available
Description

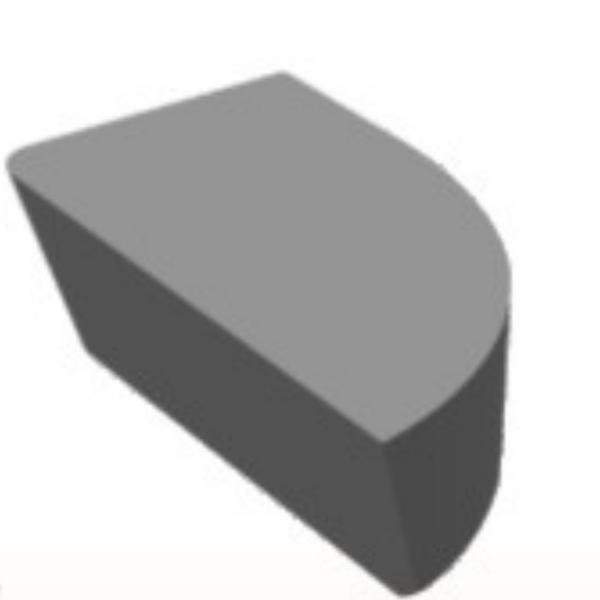

Tungsten Carbide Brazed Tips A3

Application: For Making End And Periphery Turning Tools

Type Dimension(mm)
R.H. L.H. L t S R r e a a1
A310 - 10 6 3 6 1 - 0 0
A312 A312Z 12 7 4.0 7 1 0.8 14 5
A315 A315Z 15 9 6 9 1 0.8 14 5
A320 A320Z 20 11 7.0 11 1 0.8 14 5
A325 A325Z 25 14 8.0 14 1 0.8 14 5
A330 A330Z 30 16 9.5 16 1 0.8 14 5
A340 A340Z 40 18 10.5 18 1 1.2 14 5


Drawings as below:

L 10mm 89.8HRA Tungsten Carbide Turning Tips For Making End Tools

Production and test of Carbide Brazed Tips:
1)Carbide Brazed Tips will start to prepare the powder as per customer’s requirement with our wet-grinding machine


2) Before mass production, we need to do a trial pressing and sintering, and we check the appearances and the sizes of the samples with micrometer to ensure that the requirements of the drawings can be met before batch production


3) Bulk production, press the raw materials to shape blanks, and carbide tips must be passed by semi finished inspection.

4) sinter blanks to finish (HIP) and finished products inspection to ensure the best quality and production capacity.
