8mm Tungsten Carbide Insert Cemented Carbide Tips For End Turning Tools
8mm Tungsten Carbide Insert Cemented Carbide Tips For End Turning Tools
8mm Tungsten Carbide Insert Cemented Carbide Tips For End Turning Tools
8mm Tungsten Carbide Insert Cemented Carbide Tips For End Turning Tools
Specifications
Brand Name :
JWE
Model Number :
A2
Certification :
ISO9001-2015
Place of Origin :
Zhuzhou, China
MOQ :
1KG
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
50T per month
Delivery Time :
5-15 days
Packaging Details :
Carton Box
Material :
Tungsten Carbide
Product Name :
Carbide BrazedTips
Grade :
YG8 / Customized
Sample :
Avilable
Package :
Carton Box
Stock :
available
Description

Tungsten Carbide Brazed Tips A2 For Making Boring Tools And End Turning Tools

Application: For Making Boring Tools And End Turning Tools

Type Dimension(mm)
R.H. L.H. L t S R r e a
A208 - 8 7 2.5 7 0.5 - 0
A210 - 10 8 3.0 8 1.0 - 0
A212 A212Z 12 10 4.5 10 1.0 0.8 14
A216 A216Z 16 14 6.0 14 1.0 0.8 14
A220 A220Z 20 18 7.0 18 1.0 0.8 14
A225 A225Z 25 20 8.0 20 1.0 0.8 14

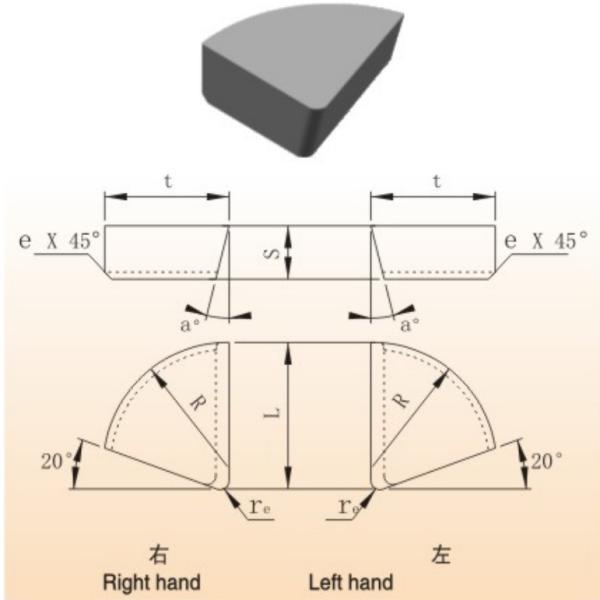

Drawings as below:

8mm Tungsten Carbide Insert Cemented Carbide Tips For End Turning Tools

Production and test of Carbide Brazed Tips:
1)Carbide Brazed Tips will start to prepare the powder as per the customer’s requirement with our wet-grinding machine


2) Before mass production, we need to do a trial pressing and sintering, and we check the appearances and the sizes of the samples with a micrometer to ensure that the requirements of the drawings can be met before batch production


3) Bulk production, press the raw materials to shape blanks, and carbide tips must be passed by semi-finished inspection.

4) sinter blanks to finish (HIP) and finished products inspection to ensure the best quality and production capacity.
