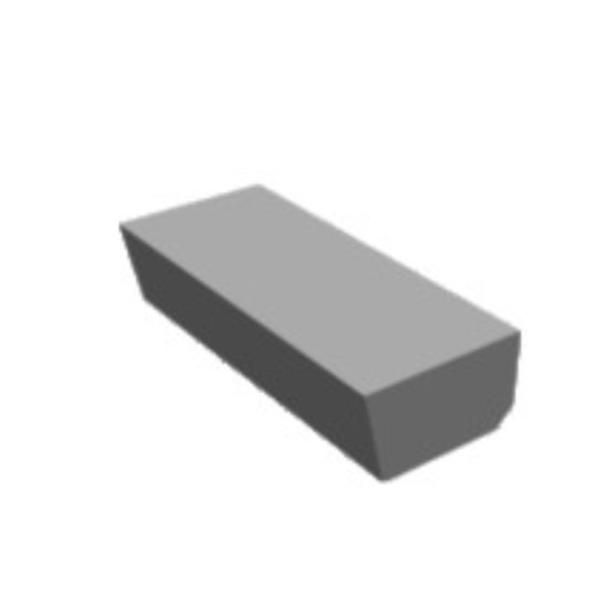

JWE 5mm Cemented Carbide Tool Tips For Boring Tools
JWE 5mm Cemented Carbide Tool Tips For Boring Tools
JWE 5mm Cemented Carbide Tool Tips For Boring Tools
JWE 5mm Cemented Carbide Tool Tips For Boring Tools
Specifications
Brand Name :
JWE
Model Number :
A1
Certification :
ISO9001-2015
Place of Origin :
Zhuzhou, China
MOQ :
1KG
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
50T per month
Delivery Time :
5-15 days
Packaging Details :
Carton Box
Material :
Tungsten Carbide
Product Name :
Carbide BrazedTips
Grade :
YG8 / Customized
Sample :
Avilable
Package :
Carton Box
Stock :
available
Description

Tungsten Carbide Brazed Tips A1

Application: For Making Periphery Turning Tools Boring Tools And Grooving Tools

Type Dimension(mm)
L T S e a
A106 6 5 2.5 - 0
A108 8 7 3 - 0
A110 10 6 3.5 0.8 14
A112 12 10 4 0.8 14
A114 14 12 4.5 0.8 14
A116 16 10 5.5 0.8 14
A118 18 12 7 0.8 14
A118A 18 16 6 0.8 14
A120 20 12 7 0.8 14
A122 22 15 8.5 0.8 14
A122A 22 18 7 0.8 14
A125 25 15 8.5 0.8 14
A125A 25 20 10 0.8 14
A130 30 16 10 0.8 14
A136 36 20 10 0.8 14
A140 40 18 10.5 1.2 14
A150 50 20 10.5 1.2 14
A160 60 22 10.5 1.2 14
A170 70 25 12 1.2 14

Drawings as below:

JWE 5mm Cemented Carbide Tool Tips For Boring Tools

JWE 5mm Cemented Carbide Tool Tips For Boring Tools

Production and test of Carbide Brazed Tips:
1)Carbide Brazed Tips will start to prepare the powder as per customer’s requirement with our wet-grinding machine


2) Before mass production, we need to do a trial pressing and sintering, and we check the appearances and the sizes of the samples with micrometer to ensure that the requirements of the drawings can be met before batch production


3) Bulk production, press the raw materials to shape blanks, and carbide tips must be passed by semi finished inspection.

4) sinter blanks to finish (HIP) and finished products inspection to ensure the best quality and production capacity.
