ø9mm Tungsten Carbide Silver Gray Buttons For Low Air Pressure DTH, Rock Drilling In Medium Hard Rock Layers

Features:

This type of button, usually called bullet nose (BN) buttons, are mainly used in quarrying, excavating, water well drilling, and oil & gas industry. It has been made of fine grain size of raw material-mixture of tungsten and cobalt powders and 100% virgin materials. The average grain size is between 1.6 to 2.0 um, with hardness ranging from 89.5 to 90.5 HRA.

The bullet shape carbide buttons can be divided to ball shape and parabolic shape. The ball-shaped ones have good compressive strength and wear resistance properties, and suited to mostly hard rocks. The parabolic shaped ones are relatively good compressive strength, usually used in medium hard conditions, but has high excavation efficiency. The main physical properties are as follows:

Products:

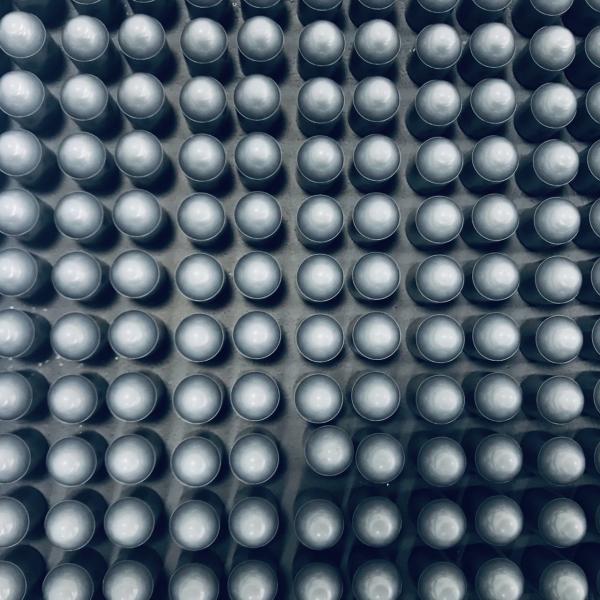

The carbide buttons pressed out on shelf waiting for next process - sintering.

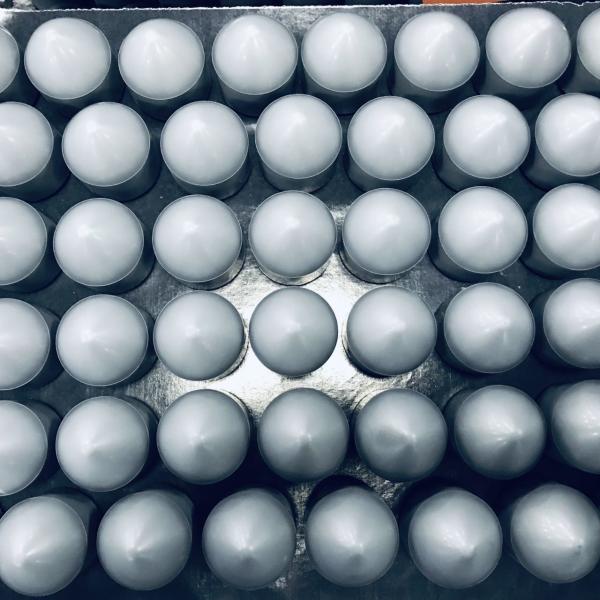

The bullet nose carbide buttons blanks without sintered.

The carbide button on the pallet before sintering process.

Blanks not be sintered on the shelves.

Workshop:

HIP sinter furnace with tons of capacity in a month

Sinter furnace during the quick cooling stage, the temperature goes down from more than a thousand Celsius to three hundred.

HIP sinter furnace under work in the workshop of HIP sinter furnace compartment for carbide buttons sintering.

The sintering furnace is under working-vacuum sintering with 1360 Celsius.

Test & Inspection:

metallography Phase Inspection Apparatus in our research and inspection laboratory:

Hardness Inspection apparatus - Electronic Hardness Tester:

Package:

Qualified products packing in finished products packaging workshop.

Qualified products package - all products will be plastic bag sealed with same quantities before leaving the quality inspection workshop

Shipment:

Products (ready to be delivered) to East Europe.

A pallet carbide buttons well-packed for delivery.

51 Cartons of carbides waiting for shipment.

Products store in the warehouse, ordered products to be shipped and common types for prompt delivery to overseas customers.

Logistics-delivery to worldwide by highly developed logistic service in Zhuzhou City Hunan, Chia.

Q&A:

1. The lead time of our production.

All of our products can be dispatched within 20 day, if stock available, 3 days after payment received.

2. The payment terms of your business.

We accept the main-stream payment terms for international trade, L/C, T/T, Western Union, Alipay, etc.

3. Sample and trial order.

We accept and welcome all the client set or place a sample or trial order before a formal and robust and long-term cooperation.

4. Terms of delivery.

FOB, CIF, ExW, DAP, with our many choices.

5. Logistic

We build strategic partnership with the main freight forwarders, such as DHL, FedEx, UPS, and others.
