ø16-22mm Cemented Carbide Buttons Low Air Pressure Hard Rock Drilling Water Well Minerals Exploration

Features:

The buttons are made of JK10.2 Grade of carbide.

The main application scenarios are of quarrying, excavating, water well drilling.

Oil & gas industry is another domain of these buttons' application, such as Tricone Bits, percussion Bits, etc.

All the buttons made of 100% virgin materials - powder of tungsten carbide and cobalt.

The average grain size is between 1.6 to 2.0 um, with hardness ranging from 89.5 to 90.5 HRA.

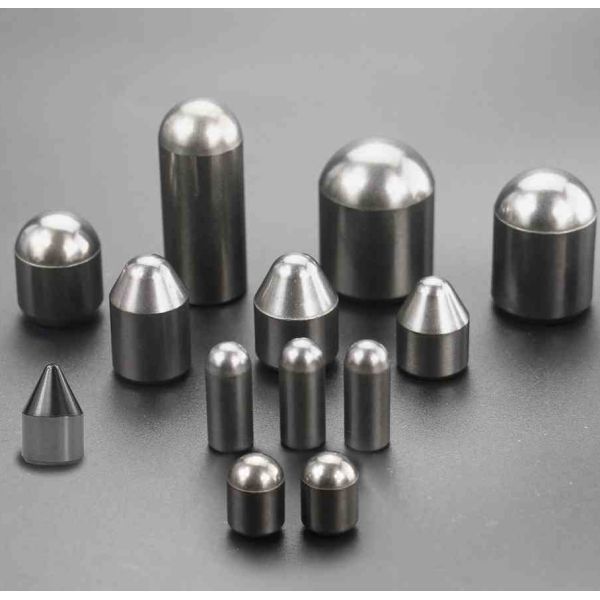

Divided by the shapes of the crown of the buttons, there are ball-shaped buttons and parabolic shaped buttons.

The former is good at compressive strength and high impact strength, are usually used in hard rock formations.

The latter has high excavation efficiency, are usually used in medium hard conditions.

The main physical properties are as follows:

Products:

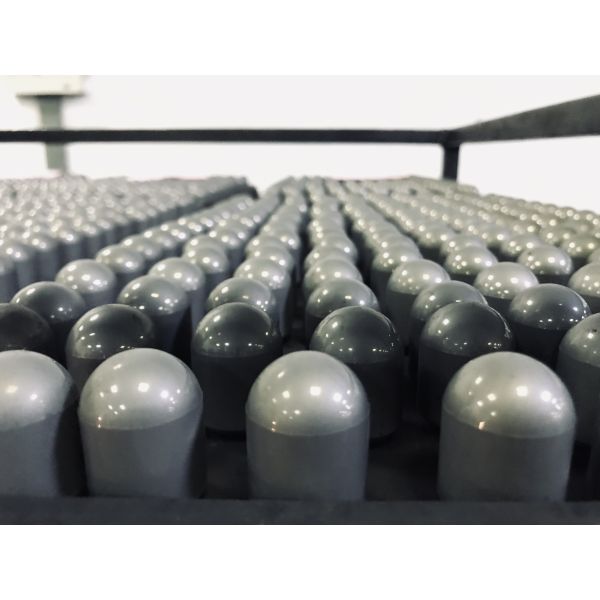

The carbide buttons pressed out on shelf waiting for next process - sintering.

The bullet nose carbide buttons blanks without sintered.

The carbide button on the pallet before sintering process.

The fininshed products line-ups.

Workshop:

The grinding process of the raw materials mixing in the Ball Mill Workshop.

TAP press machine is used for carbide blanks‘ consolidation moulding.

Sinter furnace during the quick cooling stage, the temperature goes down from more than a thousand Celsius to three hundred.

HIP sinter furnace under work in the workshop of HIP sinter furnace compartment for carbide buttons sintering.

The sintering furnace is under working-vacuum sintering with 1360 Celsius.

The HIP Vacuum Sintering Furnace is under working by Ar air protection.

Test & Inspection:

metallography Phase Inspection Apparatus in our research and inspection laboratory:

Hardness Inspection apparatus - Electronic Hardness Tester:

Package:

Qualified products packing in finished products packaging workshop.

Qualified products package - all products will be plastic bag sealed with same quantities before leaving the quality inspection workshop

Shipment:

Products (ready to be delivered) to East Europe.

A pallet carbide buttons well-packed for delivery.

51 Cartons of carbides waiting for shipment.

Products store in the warehouse, ordered products to be shipped and common types for prompt delivery to overseas customers.

Logistics-delivery to worldwide by highly developed logistic service in Zhuzhou City Hunan, Chia.

Q&A:

1. The lead time of our production.

All of our products can be dispatched within 20 day, if stock available, 3 days after payment received.

2. The payment terms of your business.

We accept the main-stream payment terms for international trade, L/C, T/T, Western Union, Alipay, etc.

3. Sample and trial order.

We accept and welcome all the client set or place a sample or trial order before a formal and robust and long-term cooperation.

4. Terms of delivery.

FOB, CIF, ExW, DAP, with our many choices.

5. Logistic

We build strategic partnership with the main freight forwarders, such as DHL, FedEx, UPS, and others.
