Length in 330 mm Unground Tungsten Carbide Rods For End Mill, Tunring, Reamers
Length in 330 mm Unground Tungsten Carbide Rods For End Mill, Tunring, Reamers
Length in 330 mm Unground Tungsten Carbide Rods For End Mill, Tunring, Reamers
Length in 330 mm Unground Tungsten Carbide Rods For End Mill, Tunring, Reamers
Length in 330 mm Unground Tungsten Carbide Rods For End Mill, Tunring, Reamers
Length in 330 mm Unground Tungsten Carbide Rods For End Mill, Tunring, Reamers
Length in 330 mm Unground Tungsten Carbide Rods For End Mill, Tunring, Reamers
Length in 330 mm Unground Tungsten Carbide Rods For End Mill, Tunring, Reamers
Specifications
Brand Name :
JWE
Model Number :
JI10/JF10/JF12
Certification :
ISO9001
Place of Origin :
China
MOQ :
5 Kilograms
Price :
$52/kgs
Payment Terms :
D/P, T/T, Western Union
Supply Ability :
1000 Tons per year
Delivery Time :
10-15 work days
Packaging Details :
41cm*20cm*12cm
Material :
100% Virgin Tungsten Carbide
Grade :
ISO K10-K40
Surface :
Unground or H6 Ground
Application :
End mill, Drill, Reamer
Feature :
Durable, Long Lasting, Wear Resistance
Warranty :
More than 5 years
Color :
Silver Gray
Chemical composition :
Co-WC
Description

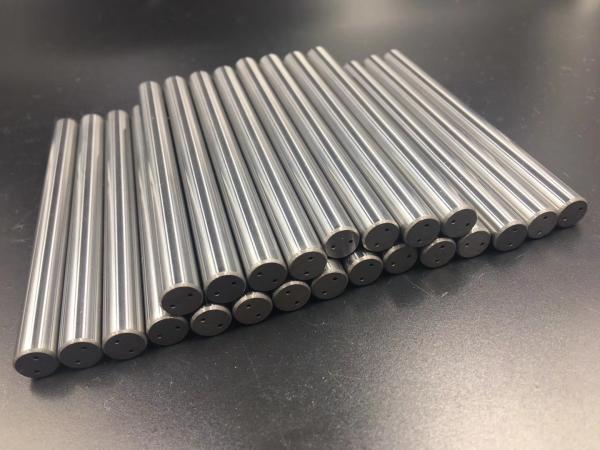

Unground Tungsten Carbide Rods With Two Straight Coolant Hole ISO K10-K40 for End Mill

Product Introduction


The Tungsten Carbide Rods, are used in high quality carbide cutting tools for the machining of heat-resistant alloys and Ti alloy, such as end mill, drill, reamer.

1. Grade: ISO K10-K40
2. Diameter: 3 mm-26 mm
3. Length: 330 mm
4. Surface: Unground or H₆ Ground

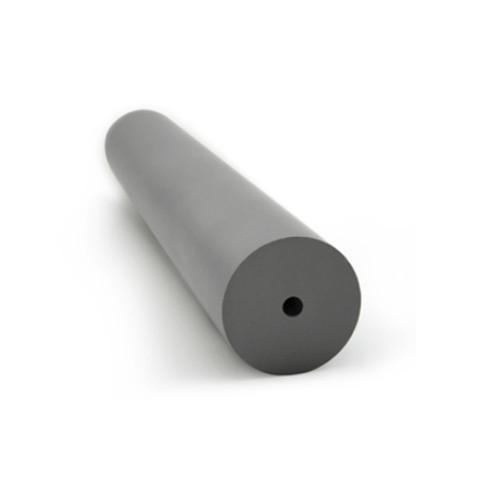

Carbide Rod With One Straight Hole

Unit: mm

Other custom-sized rods could be tailor-made.

D L B Tolerance
3.0 300/310/330 0.3 ±0.1
4.0 300/310/330 0.6 ±0.1
6.0 300/310/330 1 ±0.15
8.0 300/310/330 1.3 ±0.15
10.0 300/310/330 2 ±0.2
12.0 300/310/330 2 ±0.2
14.0 300/310/330 2 ±0.2
16.0 300/310/330 2 ±0.2
18.0 300/310/330 3 ±0.25
20.0 300/310/330 3 ±0.25
22.0 300/310/330 3 ±0.25
24.0 300/310/330 4 ±0.3
26.0 300/310/330 4 ±0.3
28.0 300/310/330 4 ±0.3
30.0 300/310/330 5

±0.35

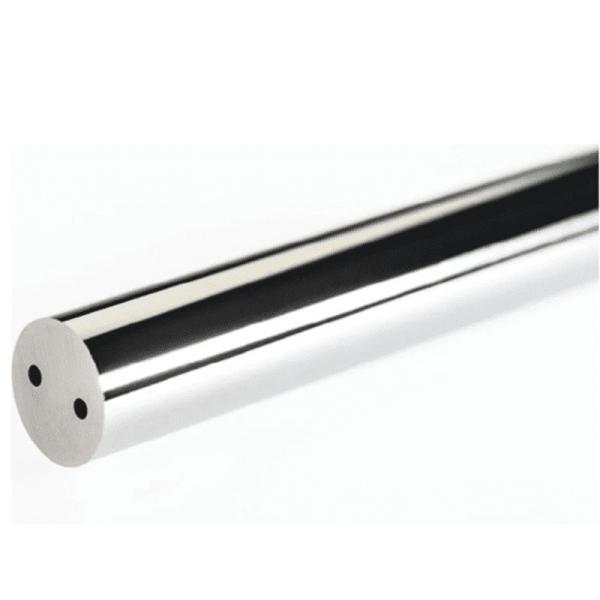

Carbide Rod With Two Straight Coolant Hole

Unit: mm

D L B Tolerance TK Tolerance
3.0 300/310/330 0.4 ±0.1 1.52 ±0.08
4.0 300/310/330 0.8 ±0.1 1.72 ±0.08
5.0 300/310/330 0.8 ±0.1 1.92 ±0.08
6.0 300/310/330 1.0 ±0.1 2.90 ±0.1
7.0 300/310/330 1.0 ±0.15 3.40 ±0.1
8.0 300/310/330 1.0 ±0.15 3.85 ±0.15
9.0 300/310/330 1.4 ±0.15 3.85 ±0.15
10.0 300/310/330 1.4 ±0.15 4.85 ±0.15
11.0 300/310/330 1.4 ±0.15 4.85 ±0.15
12.0 300/310/330 1.8 ±0.15 5.85 ±0.15
13.0 300/310/330 1.8 ±0.15 5.85 ±0.15
14.0 300/310/330 1.8 ±0.15 6.85 ±0.15
15.0 300/310/330 2.0 ±0.2 6.85 ±0.15
16.0 300/310/330 2.0 ±0.2 7.85 ±0.15
17.0 300/310/330 2.0 ±0.2 7.85 ±0.15
18.0 300/310/330 2.0 ±0.2 8.85 ±0.15
19.0 300/310/330 2.0 ±0.2 8.85 ±0.15
20.0 300/310/330 2.5 ±0.25 9.80 ±0.2
21.0 300/310/330 2.5 ±0.25 9.80 ±0.2
22.0 300/310/330 2.5 ±0.25 10.80 ±0.2
23.0 300/310/330 2.5 ±0.25 10.80 ±0.2
24.0 300/310/330 3.0 ±0.25 11.75 ±0.25
25.0 300/310/330 3.0 ±0.25 11.75 ±0.25
26.0 300/310/330 3.0 ±0.25 12.75 ±0.25

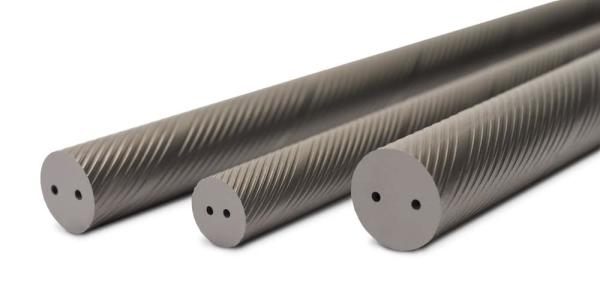

Carbide Rod With Two Helix Coolant Hole

Unit: mm

D L B Tolerance TK Tolerance Pitch
±0.5°
3.0 300/310/330 0.4 ±0.1 1.6 ±0.1 16.32
4.0 300/310/330 0.6 ±0.1 2.1 ±0.1 21.77
5.0 300/310/330 0.7 ±0.1 2.4 ±0.2 27.21
6.0 300/310/330 0.7 ±0.1 2.4 ±0.2 32.65
7.0 300/310/330 1 ±0.15 3.5 ±0.2 38.09
8.0 300/310/330 1 ±0.15 3.8 ±0.2 43.53
9.0 300/310/330 1.4 ±0.15 4.5 ±0.3 48.97
10.0 300/310/330 1.4 ±0.15 4.5 ±0.3 54.41
11.0 300/310/330 1.4 ±0.15 4.9 ±0.4 59.86
12.0 300/310/330 1.4 ±0.15 5.85 ±0.4 65.3
13.0 300/310/330 1.75 ±0.2 6.1 ±0.4 70.74
14.0 300/310/330 1.75 ±0.2 6.7 ±0.4 76.18
15.0 300/310/330 1.75 ±0.2 7.3 ±0.4 81.62
16.0 300/310/330 1.75 ±0.2 7.9 ±0.4 87.06
17.0 300/310/330 1.75 ±0.2 8.5 ±0.4 92.5
18.0 300/310/330 2 ±0.25 9.15 ±0.4 97.95
19.0 300/310/330 2 ±0.25 9.7 ±0.4 103.39
20.0 300/310/330 2 ±0.25 9.9 ±0.5 108.83
22.0 300/310/330 2 ±0.25 11.1 ±0.5 125.15
25.0 300/310/330 2 ±0.25 12.8 ±0.5 136.05

Length in 330 mm Unground Tungsten Carbide Rods For End Mill, Tunring, Reamers

Production and Test of Tungsten carbide Rods:


1. In the powder Mixing Workshop, raw material's mixtures will be prepared as per the customer’s requirement with our wet-grinding machine.
2. Before mass production, a trial pressing and sintering will be taken, and we check the appearances and the dimensions of the samples with a micrometer to ensure that the requirements of the drawings meet before batch production.
3. Bulk production, press the raw materials to shaped blanks, and the physical properties of the carbide must be passed by semifinished inspection.
4. Sintered blanks to finish products. The inspection of finished products to ensure the best quality and production capacity.

Quality Control:


1. Each rod will be a drop from a height of 1.2 m, called drop test.
2. All raw materials are tested in terms of density, hardness, and TRS before use.
3. Every piece of product goes through in-process and final inspection.
4. Every batch of products is traceable.
