Dia 0.7mm - 45mm Unground Solid Tungsten Carbide Rods With HRA 91.8 To 94.0
Dia 0.7mm - 45mm Unground Solid Tungsten Carbide Rods With HRA 91.8 To 94.0
Dia 0.7mm - 45mm Unground Solid Tungsten Carbide Rods With HRA 91.8 To 94.0
Dia 0.7mm - 45mm Unground Solid Tungsten Carbide Rods With HRA 91.8 To 94.0
Dia 0.7mm - 45mm Unground Solid Tungsten Carbide Rods With HRA 91.8 To 94.0
Dia 0.7mm - 45mm Unground Solid Tungsten Carbide Rods With HRA 91.8 To 94.0
Specifications
Brand Name :
JWE
Model Number :
JI10/JF10/JF12/JF12S/JU12
Certification :
ISO9001
Place of Origin :
China
MOQ :
5 Kilograms
Price :
Negotiable
Payment Terms :
D/P, T/T, Western Union
Supply Ability :
1000 Tons per year
Delivery Time :
10-15 work days
Packaging Details :
41cm*20cm*12cm / Customized
Material :
100% Virgin Tungsten Carbide
Grade :
ISO K30-K40
Surface :
Unground or H6 Ground
Application :
Drill, End mill, Reamer
Feature :
Durable, Long Lasting, Wear Resistance, Corrosion Resistance
Warranty :
More than 5 years
Color :
Silver Gray
Chemical composition :
Co-WC
Package :
Plastic Boxes
Description

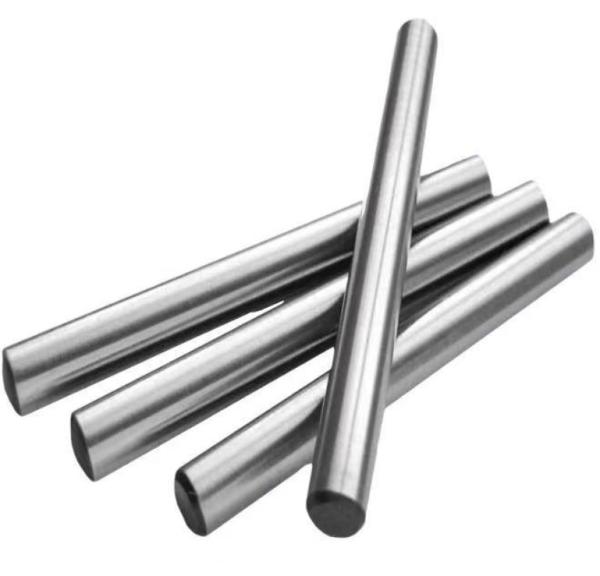

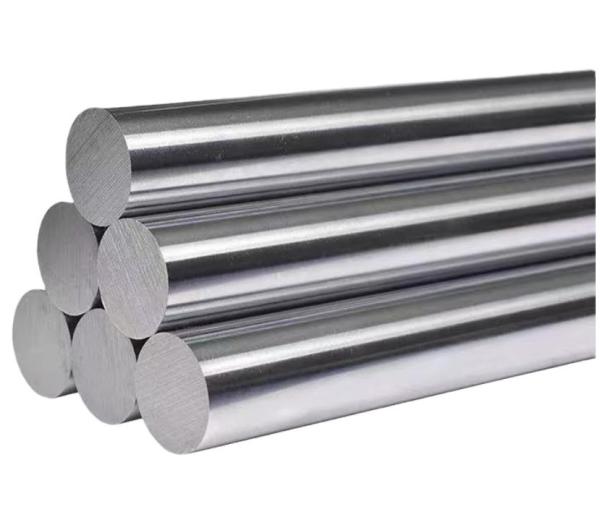

Unground Tungsten Carbide Rods

Product Introduction

Dia 0.7mm - 45mm Unground Solid Tungsten Carbide Rods With HRA 91.8 To 94.0

The Tungsten Carbide Rods, are used in high quality carbide cutting tools for the machining of heat-resistant alloys and Ti alloy, such as end mill, drill, reamer.

1. Grade: ISO K30-K40
2. Did: 0.7 mm-45 mm
3. Length: 330 mm
4. Surface: Unground or H6 Ground

Tungsten Carbide Rods Unground

Other custom size could be discussed.

TYPE DIAMETER(MM) TOLERANCE OF DIAMETER(MM) LENGTH(MM) TOLERANCE OF LENGTH(MM)
Ф0.7×330 0.7 +0.3/+0.15 330/310 -0~+5.0
Ф1.0×330 1.0 +0.3/+0.15 330/310 -0~+5.0
Ф1.2×330 1.2 +0.3/+0.15 330/310 -0~+5.0
Ф1.5×330 1.5 +0.3/+0.15 330/310 -0~+5.0
Ф1.6×330 1.6 +0.3/+0.15 330/310 -0~+5.0
Ф1.8×330 1.8 +0.3/+0.15 330/310 -0~+5.0
Ф2.0×330 2.0 +0.3/+0.15 330/310 -0~+5.0
Ф2.3×330 2.3 +0.3/+0.15 330/310 -0~+5.0
Ф2.5×330 2.5 +0.3/+0.15 330/310 -0~+5.0
Ф2.8×330 2.8 +0.3/+0.15 330/310 -0~+5.0
Ф3.0×330 3.0 +0.45/+0.25 330/310 -0~+5.0
Ф3.5×330 3.5 +0.45/+0.25 330/310 -0~+5.0
Ф4.0×330 4.0 +0.45/+0.25 330/310 -0~+5.0
Ф4.5×330 4.5 +0.45/+0.26 330/310 -0~+5.0
Ф5.0×330 5.0 +0.45/+0.25 330/310 -0~+5.0
Ф5.5×330 5.5 +0.45/+0.25 330/310 -0~+5.0
Ф6.0×330 6.0 +0.5/+0.3 330/310 -0~+5.0
Ф6.5×330 6.5 +0.5/+0.3 330/310 -0~+5.0
Ф7.0×330 7.0 +0.5/+0.3 330/310 -0~+5.0
Ф8.0×330 8.0 +0.5/+0.3 330/310 -0~+5.0
Ф8.5×330 8.5 +0.5/+0.3 330/310 -0~+5.0
Ф9.0×330 9.0 +0.5/+0.3 330/310 -0~+5.0
Ф10.0×330 10.0 +0.5/+0.3 330/310 -0~+5.0
Ф10.5×330 10.5 +0.5/+0.3 330/310 -0~+5.0
Ф11.0×330 11.0 +0.5/+0.3 330/310 -0~+5.0
Ф12.0×330 12.0 +0.5/+0.3 330/310 -0~+5.0
Ф13.0×330 13.0 +0.7/+0.3 330/310 -0~+5.0
Ф14.0×330 14.0 +0.7/+0.3 330/310 -0~+5.0
Ф15.0×330 15.0 +0.7/+0.3 330/310 -0~+5.0
Ф16.0×330 16.0 +0.8/+0.3 330/310 -0~+5.0
Ф17.0×330 17.0 +0.8/+0.3 330/310 -0~+5.0
Ф18.0×330 18.0 +0.8/+0.3 330/310 -0~+5.0
Ф19.0×330 19.0 +0.8/+0.3 330/310 -0~+5.0
Ф20.0×330 20.0 +0.8/+0.3 330/310 -0~+5.0
Ф21.0×330 21.0 +0.8/+0.3 330/310 -0~+5.0
Ф22.0×330 22.0 +0.8/+0.3 330/310 -0~+5.0
Ф23.0×330 23.0 +0.8/+0.3 330/310 -0~+5.0
Ф24.0×330 24.0 +0.8/+0.3 330/310 -0~+5.0
Ф25.0×330 25.0 +0.8/+0.3 330/310 -0~+5.0
Ф26.0×330 26.0 +0.8/+0.3 330/310 -0~+5.0
Ф27.0×330 27.0 +0.8/+0.3 330/310 -0~+5.0
Ф28.0×330 28.0 +0.8/+0.3 330/310 -0~+5.0
Ф29.0×330 29.0 +0.8/+0.3 330/310 -0~+5.0
Ф30.0×330 30.0 +0.8/+0.3 330/310 -0~+5.0
Ф32.0×330 32.0 +1.0/+0.3 330/310 -0~+5.0
Ф34.0×330 34.0 +1.0/+0.3 330/310 -0~+5.0
Ф36.0×330 36.0 +1.0/+0.3 330/310 -0~+5.0
Ф38.0×330 38.0 +1.0/+0.3 330/310 -0~+5.0
Ф40.0×330 40.0 +1.0/+0.3 330/310 -0~+5.0
Ф42.0×330 42.0 +1.0/+0.3 330/310 -0~+5.0
Ф45.0×330 45.0 +1.0/+0.3 330/310 -0~+5.0

Production Workshop:

Dia 0.7mm - 45mm Unground Solid Tungsten Carbide Rods With HRA 91.8 To 94.0

Dia 0.7mm - 45mm Unground Solid Tungsten Carbide Rods With HRA 91.8 To 94.0

Dia 0.7mm - 45mm Unground Solid Tungsten Carbide Rods With HRA 91.8 To 94.0

Dia 0.7mm - 45mm Unground Solid Tungsten Carbide Rods With HRA 91.8 To 94.0

Production and Test of Tungsten carbide Rods:


1. The mixture of carbide powders will start to prepare as per the customer’s requirement with our wet-grinding machine.
2. Before mass production, we need to do a trial pressing and sintering, and we check the appearances and the sizes of the samples with a micrometer to ensure that the requirements of the drawings can be met before batch production
3. Bulk production, press the raw materials to shape blanks, and carbide tips must be passed by semifinished inspection.
4. sinter blanks to finish (HIP) and finished products' inspection to ensure the best quality and production capacity.

Quality Control:


1. Each rod will be a drop from a 1.2 m high place.
2. All raw materials are tested in terms of density, hardness, and TRS before use.
3. Every piece of product goes through in-process and final inspection.
4. Every batch of product can be traced.

Dia 0.7mm - 45mm Unground Solid Tungsten Carbide Rods With HRA 91.8 To 94.0

Dia 0.7mm - 45mm Unground Solid Tungsten Carbide Rods With HRA 91.8 To 94.0
