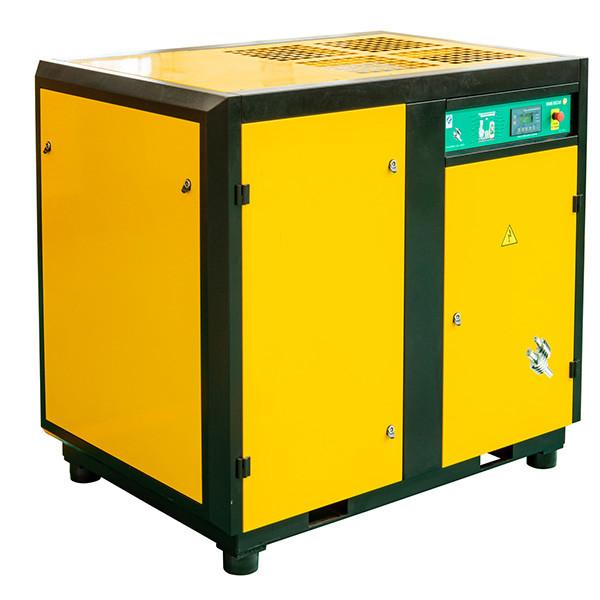

Lubricated 20.5m3/Min 90kw 7bar 2 Stage Air Compressor
Lubricated 20.5m3/Min 90kw 7bar 2 Stage Air Compressor
Specifications
Brand Name :
GooDSeaA
Model Number :
SE90AE-7
Certification :
ISO, CE, ASME
Place of Origin :
Shanghai, China
MOQ :
1pc
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
100pcs per month
Delivery Time :
30-60days
Packaging Details :
Wooden Box
Name :
90kw two stage compression air compressor
Lubrication Style :
Lubricated
Manufacture/Trader :
Manufacture / Factory
Power Source :
AC Power
Installation Type :
Stationary
Overseas Service :
Yes
Description

90kw 7bar Energy Saving Oil Injected Two Stage Screw Air Compressor

1. Specifications

90kw 7bar two-stage screw air compressor

Model

SE90AE-7

Note

Compressed stage

Two stage

Rotor 2+2

Free air delivery (m3/min)

20.5

Working pressure (bar)

7

0.7Mpa

Power (kw)

90

120hp

Noise level dB(A)

78

Cooling method

air cooling

Oil content (ppm)

1～3

Driver Motor

415V/3P/50Hz

can be customized

Protection degree

IP55, F

Driving mode

Direct Coupling

Control mode

Variable Speed Drive

optional

Control system

Intelligent PLC

Touch screen

Compressed air control method

Automatic(0-100%)

Discharge temperature

Ambient temp+8～10℃

Electrical components

ABB

Connection

DN 65

Dimension (mm)

2500x1800x1800

Weight (Kg)

2600

2. Advantages

  • Isothermal compression will not produce a lot of heat waste, so it has high energy utilization efficiency.

  • Internal Leakage Losses are Reduced
    Reduced pressure difference across each stage facilitates reduction in leakage losses.

  • Two stage air compressor airend has higher volume ratio, so it’s compressed air production is higher.
  • Save power consumption and operation cost.

3. Applications in pharmaceutical

  • Moving product on conveyor systems
  • Spraying coatings on pharmaceuticals
  • Maintaining pressure in mixing and holding tanks
  • Bottling and packaging products

4.More Models

Model

Power

(kw)

Pressure

(bar)

Air Flow

(m3/min)

Outlet connection

Weight

(kg)

Dimension

L*W*H mm

SEVSD22AE-7
SEVSD22AE-10
SEVSD22AE-12.5

22

7
10
12.5

0.7-4.20
0.5-3.80
0.4-3.20

Rp 1 1/4

680

1470x860x1340

SEVSD37E-7
SEVSD37AE-10
SEVSD37AE-12.5

37

7
10
12.5

1.6-7.10
1.3-6.60
1.0-5.80

Rp 1 1/2

920

1610x1000x1470

SEVSD55AE-7
SEVSD55AE-10
SEVSD55AE-12.5

55

7
10
12.5

2.4-11.60
2.0-11.20
1.5-9.10

Rp 2

1620

2100x1200x1680

SEVSD75AE-7
SEVSD75AE-10
SEVSD75AE-12.5

75

7
10
12.5

3.0-15.80
2.6-14.20
2.2-11.60

Rp 2

1980

2100x1200x1680

SEVSD90AE-7
SEVSD90AE-10
SEVSD90AE-12.5

90

7
10
12.5

3.9-20.50
3.5-17.60
2.8-14.20

DN 65

2600

2500x1800x1800

5. Uersite

Lubricated 20.5m3/Min 90kw 7bar 2 Stage Air Compressor
