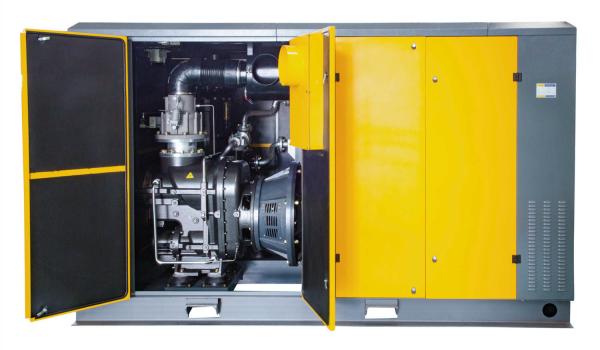

90kw 25bar Oil Injected Rotary High Pressure Screw Air Compressor
90kw 25bar Oil Injected Rotary High Pressure Screw Air Compressor
90kw 25bar Oil Injected Rotary High Pressure Screw Air Compressor
90kw 25bar Oil Injected Rotary High Pressure Screw Air Compressor
90kw 25bar Oil Injected Rotary High Pressure Screw Air Compressor
90kw 25bar Oil Injected Rotary High Pressure Screw Air Compressor
Specifications
Brand Name :
GooDSeaA
Model Number :
SE90W-25
Certification :
ISO,CE
Place of Origin :
Shanghai, China
MOQ :
1pc
Price :
USD34250/PC-USD35900/PCS
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
50pcs/month
Delivery Time :
35days -45days
Packaging Details :
standard export carton box
Name :
High Pressure Two Stage Compression Air Compressor
Type :
Medium-Pressure
Compression Stage :
Two Stage
Pressure :
25bar
Air Flow :
8.5m3/min
Power :
90kw/120hp
Outlet Connection :
DN40
Weight :
2750KG
Description

90kw 25bar Oil Injected High Pressure Customized Screw Air Compressor Two-Stage

GooDSeaA 2-stage Oil-injected rotary screw air compressors provide a reliable air supply of up to 20-30bar for high-pressure applications in the toughest working conditions, for example Bottle blowing (PET), Pharmaceutical industry, Food industry, Rubber tire manufacturing, Hydropower, Well drilling, Military, Biological and Chemical industry and many more applications.

Technical Data

High Pressure Screw Air Compressor

Model

SE90W-25

Note

Free air delivery (m3/min)

8.5

300cfm

Max working pressure (bar)

25

2.5Mpa

Power (kW)

90

120hp

Voltage (V/P/Hz)

380V/3P/50Hz

Voltage can be customized

Noise level dB(A)

78

Cooling method

Water cooling

air cooling is optional

Drive method

Coupling

Motor protection

IP55,F

Suction air temperature (℃)

≦50

Outlet temperature (℃)

Ambient Tem. + 8~10℃

Compressed air control method

Automatic(0-100%)

Control method

PLC Intelligent

English

Oil content

1~3ppm

Connection (mm)

DN 40

Dimensions (L×W×H) mm

2466*1900*1918

Weight (Kg)

2750

Features & Benefits

*high efficiency motor coupled to air end via non-lubricated, flexible coupling.

Flange-mounted for positive alignment;

*Heavy-duty inlet air filter

Two-stage, Oil-injected

Inside safety element

*Air-fluid separation

ASME psi rated tank

ASME pressure relief valve

Pleated air-fluid separator element for lower initial pressure drop

*Dependable, high-performance two-stage air end for maximum power savings.

*Cooling

Air-cooled units use mounted and piped aftercooler with quiet fan

Water-cooled units feature an air-in-shell, water-in-tube aftercooler design

*Intelligent Touch Screen Controller.

Easy pressure adjustment

Capacity modulation range 100 to 40%

Differential pressure indicator

More Models

MODEL

POWER

AIR FLOW

m3/min

PRESSSURE

bar

OUTLET

CONNECTION

WEIGHT

kg

DIMENSION

L*W*H mm

kw

hp

SE90W-20

SE90W-25

 90 120

9.2

8.5

20

25

 DN 40 2750 2466*1900*1918

SE110W-20

SE110W-25

 110 150

11.6

9.7

20

25

 DN 40 2900 2466*1900*1918

SE132W-20

SE132W-25

SE132W-30

 132 180

13.0

11.8

10.5

20

25

30

 DN 50 3200 2466*1900*1918
SE160W-20 160 220 15.5 25 DN 50 3850 2850*1950*1950

SE200W-20

SE200W-25

 200 270

21.0

18.8

20

25

 DN 65 4200 2980*2100*1950

SE250W-20

SE250W-25

 250 340

25.0

22.0

20

25

 DN 65 4500 3250*2250*2050

Note: the above listed are of our standard models. For different needs, the special design service is available. Welcome to pre-sales technical consultation at any time.

GooDSeaA Workshop

90kw 25bar Oil Injected Rotary High Pressure Screw Air Compressor

90kw 25bar Oil Injected Rotary High Pressure Screw Air Compressor

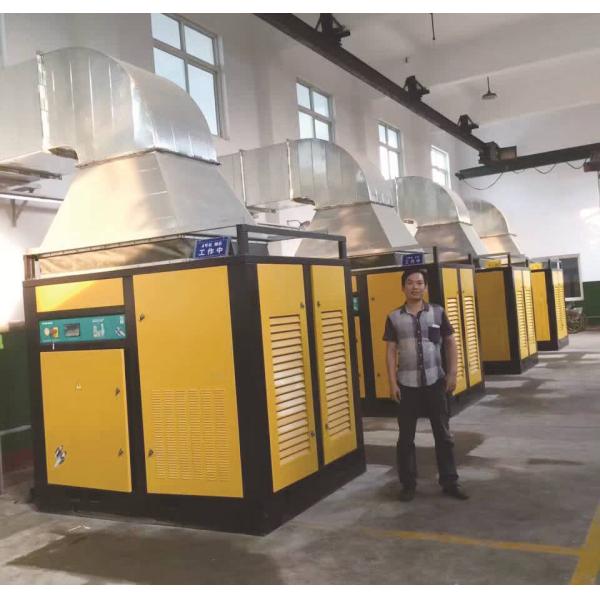

Job Site
