General Industry Electric AC Power 90kw 120hp Direct Drive Screw Air Compressor

1. Product Profiles

The direct driven screw air compressor transmits electric power to the airend through a flexible coupling, it consumes almost no energy in the transmit process, so that direct driven is the most efficient transmission mode.

2. Advantages

(1).There is no intermediate drive, so there is no energy loss.

(2).Larger rotors operate at lower speeds, so it is more efficient and further reducing energy consumption.

(3).It avoids some shortcomings of belt driven air compressor, such as unbalanced force, easy to generate heat, the belt is easy to break, frequent belt change, and need to re-adjust the level of the pulley and the tension of the belt frequently.

(4).Due to the coaxial transmission of the flexible coupling, the force is balanced and the vibration is reduced, which increases the reliability and reduces the maintenance cost.

3. Main Parts

1) Airend

Air end is equipped with lasted rotors with bigger diameter and low rotate speed, high –quality SKF over loading bearing and three special oil seals guarantee the high efficiency, reliability and durability.

2)PLC intelligent control system

Human-based English user interface: remote control and several compressors interconnected; running state; automatic protective alarm.

3)Automatic adjustment intake value

Adopting 0-100% inlet proportional intake valve which stable the work pressure and save energy.

4)Specific screw compressor motor

◆ IP54, F Class

◆ SKF over-loading bearing

◆ Service Factor: SF=1.2

◆ Low noise, long use life

◆ Voltage and Frequency can be customized

5)High-efficiency Filter System

◆ High-efficiency air filter, filter the air of dust and impurities, filtration come to 98.5%

◆ Branded oil filter, filter the air of oil, guarantee the long time use life of airend

◆Oil-Air Separator element, high-efficient separation, oil contact less than 3ppm

◆ Regular maintenance notice and alarm by PLC

6)Control System

◆ ABB brand electrical components, including breakers, AC contactors, reliable, easy to replace

◆ MICROCHIP with Standard 485 interface, it can achieve remote monitoring according via MODBUS communication protocol

◆Collection the signals of compressor electrical , exhaust, temperature , pressure to monitor the operational status , but also help for quick troubleshooting

7)High-efficiency Cooler

◆ Integrated design of air cooler and oil cooler, compacted structure, small size with lower weight

◆ high- efficient heat transfer, guarantee the best cooling effect

◆ Water cooling is available

4. Specifications

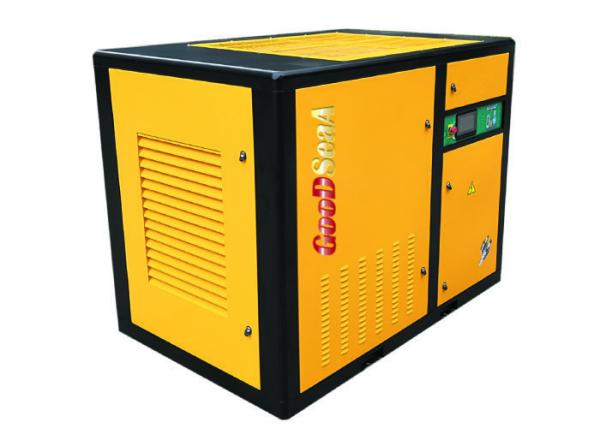

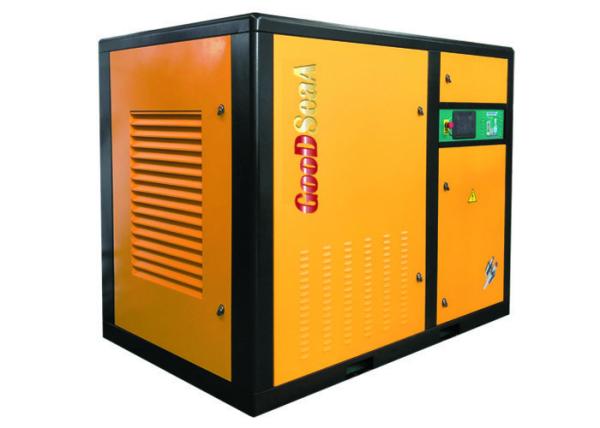

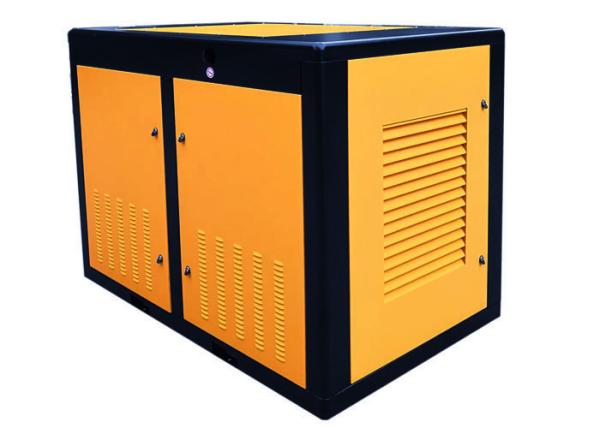

5. Product Pictures

6. FAQ

1. Q: Are you a factory or trading company?

A: We are the professional screw air compressor manufacturer established in 2004.

2. Q: Where is your company and factory located? How can I visit you?

A: Our overseas sales center is located in No.666,Xinbo Road, Maogang Industry Zone, Songjiang, Shanghai, China(201606). It takes about one hour from Shanghai Pudong airport or Hongqiao Airport. We warmly welcome all our clients from home or abroad to visit us!

3. Q: How does your company and factory do regarding quality control?

A: Quality is priority. GoodSeaA always attach great importance to quality controlling from beginning to the end.

Our factory comply with the IS09001 standard strictly.

4. Q: What is your after-sale service?

The guarantee period is 12 months from the date of the installation or 15 months from the day of delivery. We will take full responsibilities for the charges caused by the defects during the guarantee period.
