Mechanical Stainless Steel Turnstiles Retractable Swing Barrier Turnstile
Mechanical Stainless Steel Turnstiles Retractable Swing Barrier Turnstile
Mechanical Stainless Steel Turnstiles Retractable Swing Barrier Turnstile
Mechanical Stainless Steel Turnstiles Retractable Swing Barrier Turnstile
Specifications
Brand Name :
Turboo Euro
Model Number :
E343A
Certification :
CE, ISO9001
Place of Origin :
Shenzhen, China
MOQ :
1 pcs
Price :
Negotiate
Payment Terms :
L/C, T/T
Supply Ability :
1500+PCS PER MONTH
Delivery Time :
7-15 days
Packaging Details :
Wooden Case Package
Size :
1200*280*960mm
Material :
304 Stainless Steel
Input :
220V ,50Hz
Temperature :
30 Below Degree To 60 Degree
Transit Speed :
35 Persons/min
Reliability Of The Core :
3 Million ,no Fault
Time Needed For Opening :
0.2 Seconds
Infared Sensro :
5 Pairs
Description
Mechanical Stainless Steel Turnstiles Retractable Swing Barrier Turnstile For Access Control

Product Description

E343 are compatible with different identification systems cards, such as IC, ID card, fingerprint, QR Code and more.The gates models are space efficient security barriers, with a compact design, yet offer sufficient space to integrate any access control system.
They can be mounted with display, passage counter, card reader, token operation traffic lights, command console, alarm system against unauthorised entries, interfaced with a PC through a RS232(RS485,TCP-IP)line.
The unique swing arm feature provides a fail-safe safety solution in case of an emergency or power failure,providing egress in case of crisis evacuations. Durability with minimal maintenance means years and millions of trouble free passages. The gate creates a secure environment in. for example, a reception area.
Our gates are used in applications including stadiums and arenas, perimeter and interior security, recreation and amusement parks, retail crowd control, transit fare collection and lobby access control.

Product Parameters

Model Number: E343
Product Size: 1200*280*960mm
Pass Width: 600-1100mm
Net Weight: 50kg
Thickness: 1.0mm
Material: 1.0mm 304 SUS Hairline #400
IP: >44
Driver: Brushed Motor
Infrared Sensor: 4 pairs
Pass rate: 35 p/m
Power Supply: 100-240V(AC)
Operational Voltage: 24V(DC)
Max Power Consumption: 35w
Frequency: 50-60hz
Working Temperature: -25 to +70 ℃
MCBF: 5,000,000cycles

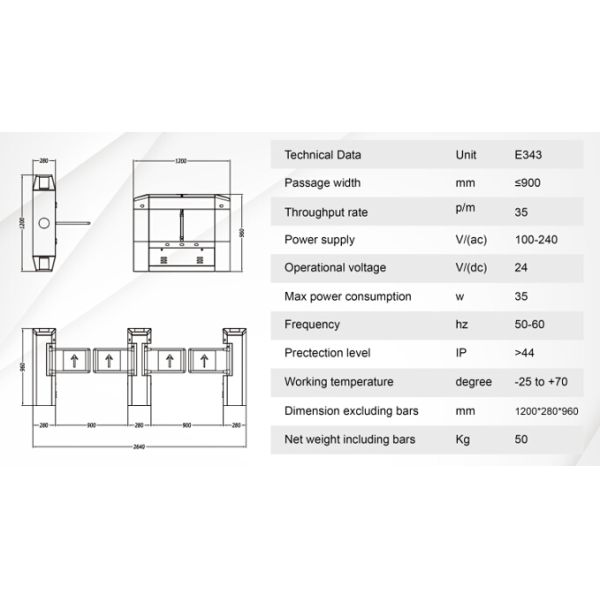

Dimension Diagram

Mechanical Stainless Steel Turnstiles Retractable Swing Barrier Turnstile

Features And Benefits:

• Use IC cards, ID cards, Bar code or magnetic cards as automatic identification system and achieve access, attendance fees or function.
• A direction indicator, showed that pedestrian access to the current status of, and guide pedestrians correct and smooth passage.
• Display has been in use for statistics and numbers
• A combination of infrared sensors and police anti-illegal entry into pedestrian access, the protection of pedestrians access smooth and the prevention of the channel following.

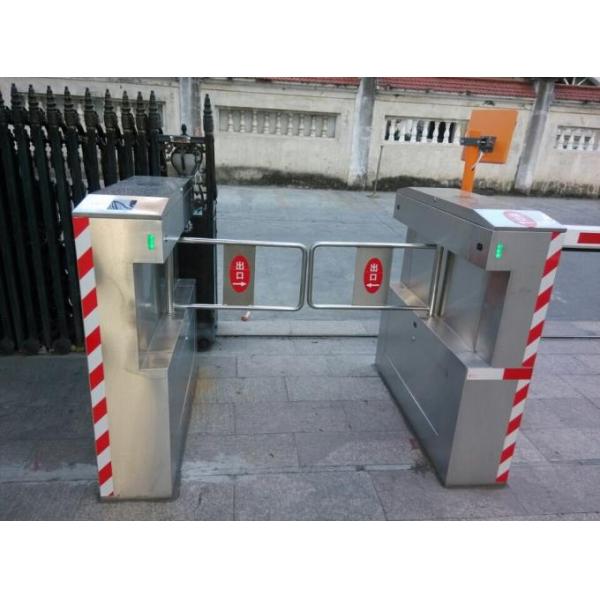

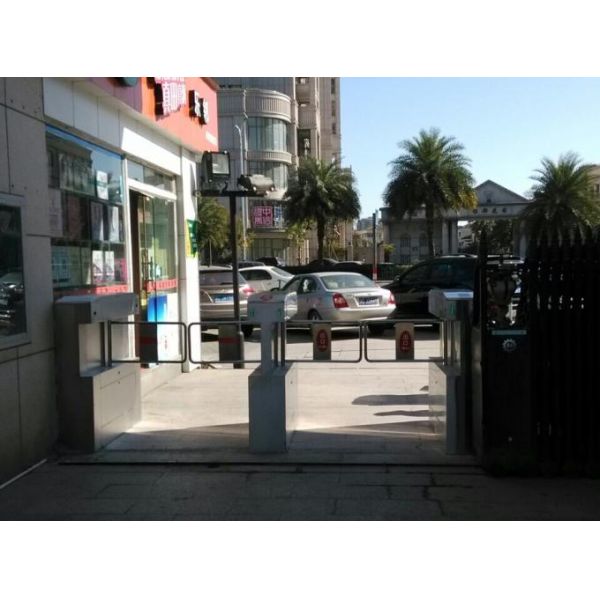

Projetc Case
Mechanical Stainless Steel Turnstiles Retractable Swing Barrier Turnstile
Mechanical Stainless Steel Turnstiles Retractable Swing Barrier Turnstile
Service And Shipping
Mechanical Stainless Steel Turnstiles Retractable Swing Barrier Turnstile

FAQ:
1. Do you have full automatic tripod turnstile?

Yes. All semi-automatic tripod can be changed to full automatic, there is extra costs to do it.

2. How about your company’s actual strength?
We are the top 3 in turnstile field in China. We have more than 200 employees, a R&D group with 50 people, 1 office and 2 factories. Factories and office buildings are more 20000 square meters in total.
3. How about the quality of your products?
We are in the highest level of quality with the most competitive price. We choose German, Japanese and domestic lead brand accessories to ensure product quality from the source. At factory, we implement 5S management to control production process.
4. How do you do after-sale service?
We provide life-time technology support on line, by emails, video, phone etc. We have engineer speaking English, convenient to communicate with you directly.
5. How about the lead time?
Normally we have stock for the hot sale models of standard products.
Regular products need 7-10 working days. The customized products need 15-20 working days.

Turboo new design tripod turnstile gate model E142, pedestrian automatic access control system waist height 304 stainless steel arm drop gate, with RFID card, fingerprint identification and face verification mode.Combined with infrared detector, temperature controller, revolving door series product design novel, can be widely used in subway, school, office, scenic area, gym, factory, residential, supermarket and other places.
