IC Card Reader Full Height Revolving Turnstile SUS304 For Bus Station

ID/IC Card Reader Full Height Turnstile Gate Revolving Gate For High Security


1.Quick Details

Power supply: 100V~240V (AC)
Control circuit: 24V DC
Power consumption: 30W
Operating temper range: -25~+70°C
Protection level: ≥44IP
Humidity: 95%
Hydraulic damper: Adjustable
Solenoid 24V 100% DC
Throughout 30 persons/per minute
Signal output: 12v pulse

Communication interface: RS485 or TCP IP
Passage width : ≤600mm
Frequency : 50 or 60Hz




2 Product description

1) materials & finishes

Stainless steel: all external fabricated materials are composed of #304 stainless steel
Powder coated: the powder if electro-statically applied, then baked to assure proper curing and adhesion. the color of choice(according to RAL) is available
Galvanized: all exterior tubing and sheet metal surfaces receive a coating of hot molten zinc(black, light,medium,dark statuary)

2) controls and interfaces

1. Biometric integration
2. Card readers

3. Metal detection

4. Electronic/LCD counters
5. Failopen or fail-secure
6. Push-button and wireless remotes
7. Manual key overide both directions
8. Indicator lights

3. Prodcut features

1) Bi-directional passage.
2) Electrical controls for both directions.
3) Integration with any identification or access control system.
4) Automatic reset of barrier wings after each passage.
5) Push button switch override controls for emergency sltuations.

6) Cable or wireless remote control.
7) Indoor and outdoor application.
8) Heavy. -duty high precision mechanism Nickel Plated for high corrosion resistance.

9) Mechanism designed not to lock at 45°.

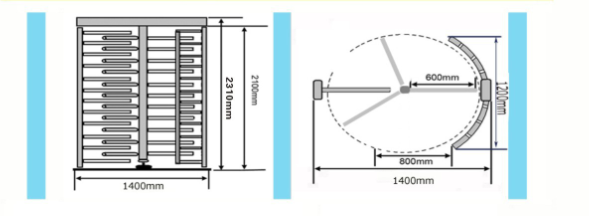

4. Dementions And Packing











5. FAQ

1)
Q: How about your company's actual strength?
A :We have more than 200 employees, a R&D group with 50 people,1 office and 2 factories. Factories and office buildings are more 20000 square meters in total.
2)
Q: How about the quality of your products?
A: We choose German, Japanese and Chinese lead brand accessories to ensure product quality from the source. At factory, we implement 5S management to control production process.
3)
Q: How do you do after-sale service?
A: We provide life-time technology support online, by emails, video, phone etc. We have engineer speaking English, convenient to communicate with you directly.
4)
Q: How about the lead time?
A: Regular products need 7-10 working days. The customized products need15-20 working days.
5)
Q: How long is your warranty period?
A: One-year guarantee & Life-time technology support.
