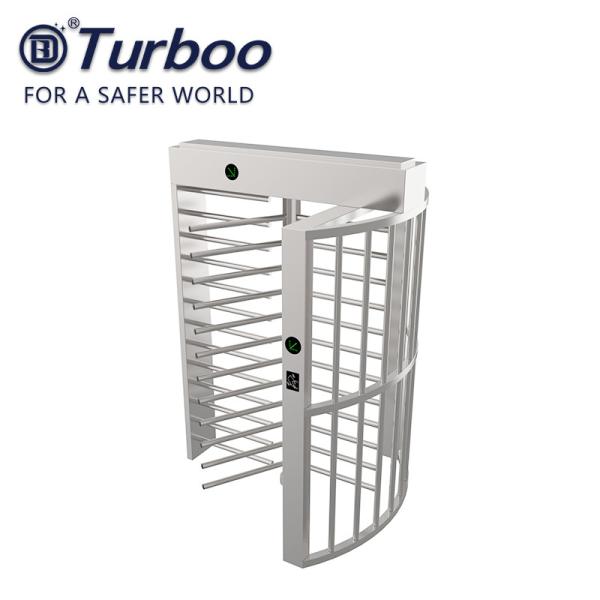

Durable Prison Full Height Turnstile Access Control System With Multi Mode
Durable Prison Full Height Turnstile Access Control System With Multi Mode
Durable Prison Full Height Turnstile Access Control System With Multi Mode
Durable Prison Full Height Turnstile Access Control System With Multi Mode
Durable Prison Full Height Turnstile Access Control System With Multi Mode
Durable Prison Full Height Turnstile Access Control System With Multi Mode
Specifications
Brand Name :
Turboo
Model Number :
G535
Certification :
CE, ISO9001
Place of Origin :
Shenzhen, China
MOQ :
1 PC
Payment Terms :
T/T, L/C
Supply Ability :
1000 units per month
Delivery Time :
7-15 working days
Packaging Details :
Wooden case package
Price :
Negotiable
Type :
Full height turnstile
Size :
1630*1500*2310mm
Pass width :
≤700mm
Material :
304 stainless steel
Reliability :
3 million ,no fault for the machine core
Environment temperature :
Minus 25 degree to 70 degree
Transit speed :
30 persons / min
Unlock time :
0.2s
Input :
220V ,50Hz
Net weight :
205kg
Package :
Wooden case package
Description

Super Quality Competitive Price Access Control System prison Full Height Turnstile made in China

Features and Benefits

1) Automatically low noise mechanism core equipped, highly cost-performance

2) Sense positioning, reducing mechanical impact make lifetime longer

3) Operating efficiency, 1~2 seconds open & close

4) Lowest Noise : No matter in operating or outside control, Noise control under 30db

5) Self-checking and Alarm warning for maintain

6) Resetting: System cancel authorized pass if passenger delayed pass

Anti-following : prevent illegal passing

Anti-clamp :The wings will stopped during in external block, the wings reset again after default delay

9) The rotary wings will be locked automatically if the system do not receive IR signal

10) Multi-passage for variety application demands , cover 99% needs on earth

11) Programmable signal separate control : pass time,pass speed etc. parameter

OPERATING MODES

• Single passage in the set direction

• Bi-directional single passage

• Free passage in the set direction

• Always free or locked

MATERIALS

• Housing: In stainless steel AISI 304 or AISI316.

• Barrier arm- stainless steel bar.

Technical Data Unit G535
Passage width mm <650
Throughput rate p/m 30
Power supply V(ac) 100-240
Operational voltage V(dc) 24
Max power consumption w 30
Frequency hz 50-60
prectection level ip >44
Working temperature degree -25 to +70
Dimension excluding bars mm 1500X1630X2310
Net weight including bars Kg 205

Durable Prison Full Height Turnstile Access Control System With Multi ModeDurable Prison Full Height Turnstile Access Control System With Multi ModeDurable Prison Full Height Turnstile Access Control System With Multi ModeDurable Prison Full Height Turnstile Access Control System With Multi Mode
