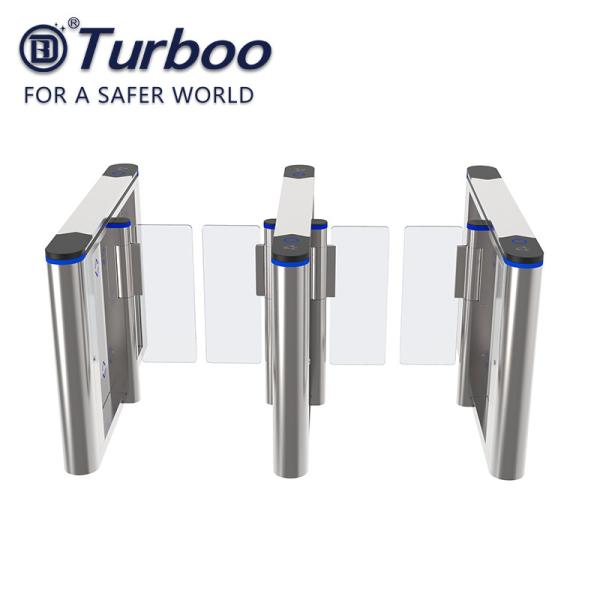

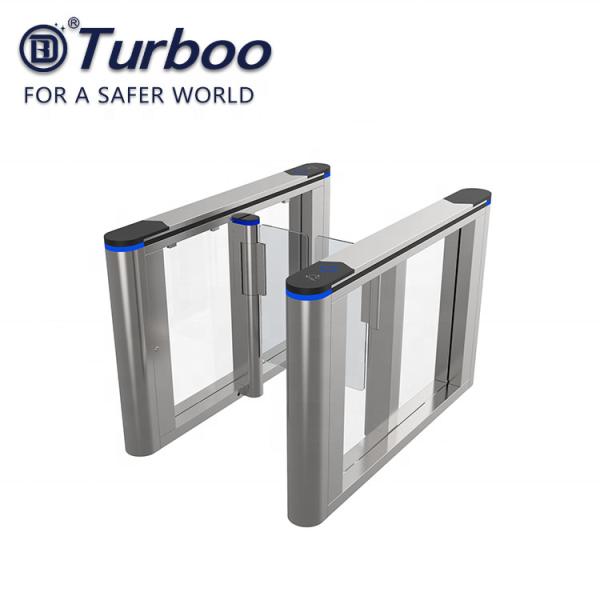

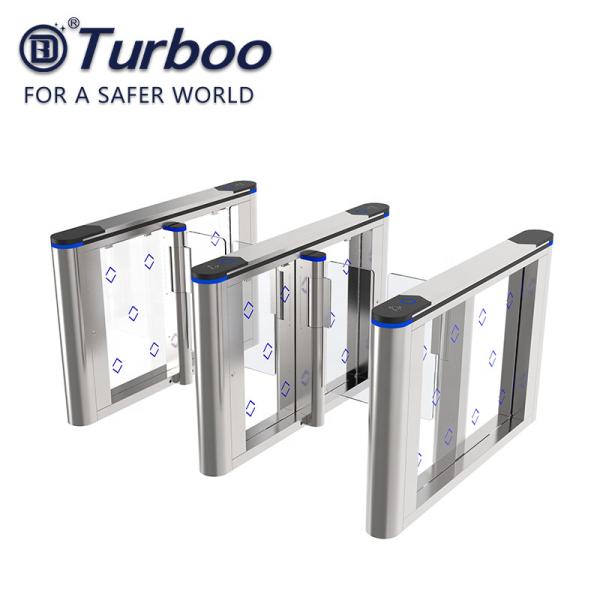

Automatic Access Control Pedestrian Turnstile , Security Swing Gate 100-240V
Automatic Access Control Pedestrian Turnstile , Security Swing Gate 100-240V
Automatic Access Control Pedestrian Turnstile , Security Swing Gate 100-240V
Automatic Access Control Pedestrian Turnstile , Security Swing Gate 100-240V
Automatic Access Control Pedestrian Turnstile , Security Swing Gate 100-240V
Automatic Access Control Pedestrian Turnstile , Security Swing Gate 100-240V
Automatic Access Control Pedestrian Turnstile , Security Swing Gate 100-240V
Automatic Access Control Pedestrian Turnstile , Security Swing Gate 100-240V
Specifications
Brand Name :
Turboo
Model Number :
B302
Certification :
CE ISO9001
Place of Origin :
Guangdong China(Mainland)
MOQ :
2 pcs
Price :
negotiate
Payment Terms :
L/C, T/T
Supply Ability :
1000 units per month
Delivery Time :
5 days
Packaging Details :
Wooden Case Package
Product Size :
1500*150*980mm
Pass Width :
<=900mm
N.W. :
65kg
Thickness :
1.5mm
Material :
SUS 304 Polish 400# Snow line
Top cover Material :
Acrylic+Metal plate
Input Voltage :
100-240V
Pass Rate :
35-40 persons/minute
Description

Automatic System Turnstile / Access Control Barrier Gate / SUS304 Speed Gate Turnstile

Description

B302 swing gate which is made of stainless steel and acrylic in a modern style, When the turnstile instantaneously encounter an impulse force that is beyond the safety range, the gates can be pulled away slowly and buffer the impact force towards mechanism and the reverse impact force towards user.It can sensitively detect users' passing status so as to protect users from hitting, meanwhile, prevent illegal intrusion and tail-gating passing.

Model Number: B302
Product Size: 1500*150*980mm
Pass Width: <=900mm
Net Weight: 65kg
Thickness: 1.5mm
Material: SUS304,Polish 400# Snow Line
Top cover Material: Acrylic+Metal plate
Filling Panel Material: 10mm Transparent Acrylic+Light bar
Arm Material: 10mm Transparent Acrylic
Driver: Servo Motor
Infrared Sensor: 6pairs
Pass rate: 35-40p/m
Power Supply: 100-240V(AC)
Operational Voltage: 24V(DC)
Max Power Consumption: 100w
Frequency: 50-60hz
Working Temperature: -25 to +70 ℃
MCBF: 5,000,000cycles

Feature:

  • Traffic light indicating passenger access

  • Automatic detection for malfunctions

  • Input interface available for dry contact and switch signal connection

  • Adjustable auto-delay closing

  • Infrared photocells for safety access

  • Alarm for unauthorized access and no access

  • Auto-closing when power on

  • Free access when power off

  • Adjustable access directions

  • Emergency interface available

Our advantage:

1. 90% of production processes are developed by ourselves so we can control the costs and provide the competitive price correspondingly.

2. We use Baoxin Stainless steel, the best brand in China.

3. Our power supply is the best brand from Taiwan “Mingwell” or “Fujia”.

4. We take 3M glue imported from American instead of the glass glue which other counterparts use.

5. Germany “Optibelt” and American “Gates” is the belt we are using now
