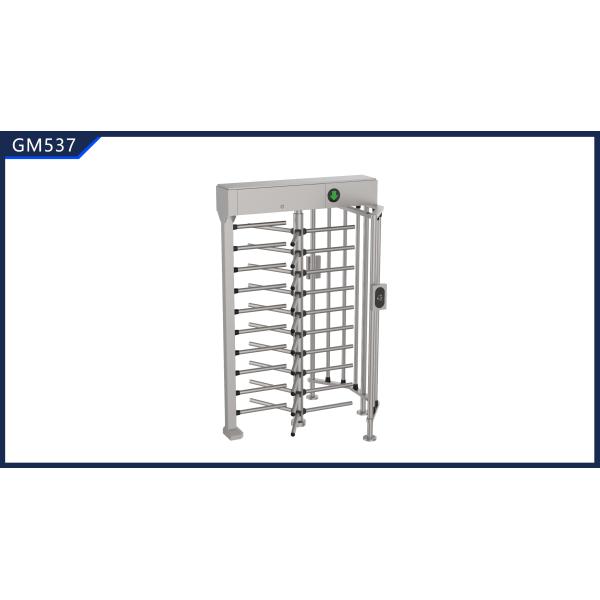

Full Height Rotor Turnstile Pedestrian Revolving Gate Access Control System Full Height Gate
Full Height Rotor Turnstile Pedestrian Revolving Gate Access Control System Full Height Gate
Full Height Rotor Turnstile Pedestrian Revolving Gate Access Control System Full Height Gate
Full Height Rotor Turnstile Pedestrian Revolving Gate Access Control System Full Height Gate
Full Height Rotor Turnstile Pedestrian Revolving Gate Access Control System Full Height Gate
Full Height Rotor Turnstile Pedestrian Revolving Gate Access Control System Full Height Gate
Specifications
Brand Name :
Turboo
Model Number :
GM537
Certification :
CE
Place of Origin :
Guangdong
MOQ :
1 PC
Price :
Negotiation
Payment Terms :
L/C, T/T
Supply Ability :
1000 units per month
Delivery Time :
7-10 days
Packaging Details :
Wooden box
Product Size: :
1400*1300*1130MM
Pass Width: :
600mm
Net Weight: :
240kg
Thickness: :
1.2mm
Material： :
SUS304
Operating Temperature： :
-25 to +70
Pass rate :
35p/m
Power Supply: :
100-240V(AC)
Operational Voltage: :
24V(DC)
Max Power Consumption: :
50w
Description

Full Height Rotor Turnstile Pedestrian Revolving Gate Access Control System Full Height Gate

Full height security turnstiles is suitable for robust access control, well suited to exterior and interior use at football
stadiums, sport facilities and high risk sites. The Turboo turnstile full height gate is an economical version of a robust turnstile. The full height gate has a light-weight steel dimensional construction with high quality, trouble-free and simple operation. It’s ideal for high security applications where the fully automatic and unmanned identification of pedestrians are required

Features and Benefits

  • Reasonable and reliable design, low noise, smooth operation and long service life；
  • With function of opening doors automatically under power-off state to meet the need of fire-fighting passage；
  • With functions of anti-tail, anti-reverse pass and so on;
  • Card can be set "with memory" or "without memory" functions;
  • With automatic reset function, i.e. after having access to the gate, the gate automatically restores to the locked state if not pass within the time set;
  • With infrared anti-clip function (anti-clip when gate is open or running);
  • Compatible with IC, ID card, scanning and face recognition,etc.
  • Two modes of operation are available: open or closed.
  • Various working modes are available, including two-way card reading and one-way card reading,etc.

OPERATING MODES

• Single passage in the set direction

• Bi-directional single passage

• Free passage in the set direction

• Always free or locked

MATERIALS

• Housing: In stainless steel AISI 304 or AISI316.

• Barrier arm- stainless steel bar.

Technical Data Unit GM537
Passage width mm 600
Throughput rate p/m 30
Power supply V(ac) 100-240
Operational voltage V(dc) 24
Max power consumption w 30
Frequency hz 50-60
prectection level ip >44
Working temperature degree -25 to +70
Dimension excluding bars mm 1400*1300*2230
Net weight including bars Kg 240

Product Size

Full Height Rotor Turnstile Pedestrian Revolving Gate Access Control System Full Height Gate

Full Height Rotor Turnstile Pedestrian Revolving Gate Access Control System Full Height Gate
