Universal manual lathe machine for high-speed steel, hard alloy and ceramic cutting tool

1. Product Discription of Vertical Lathe Machine:

Universal Manual Vertical Turning Lathe Machine is suitable to process ferrous metal, nonferrous metals and partial non-metallic material, and could achieve the processing of turning of the end face, inside and outside cylindrical surface, inside and outside circular conical surface and drilling, expanding, reaming of the hole. The vertical lathe machine cutting action is controlled by the PLC, and feeding axis is driven by the AC asynchronous servo motor, with touch screen display and hand-held pulsed. Main transmission is driven by the spindle AC servo motor, hydraulic gear change and two gears stepless speed regulation. Tool rest adopts the T-type ram manual 5-tool position tool table structure with good rigidity and convenient tool change. Worktable is manual 4-jaw single movement chuck.

2. Main technical data:

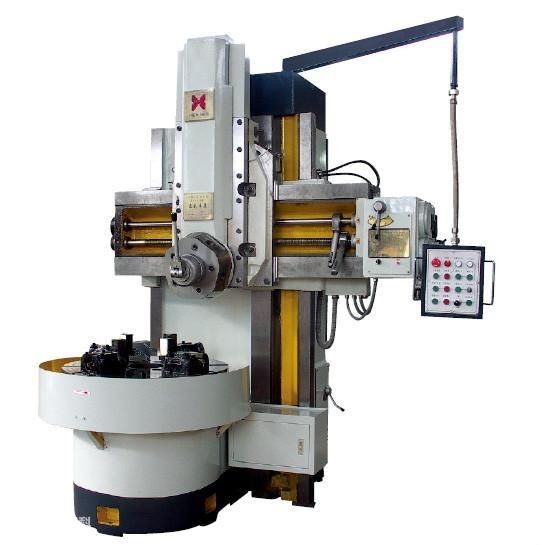

3. Machine picture for your reference:

1. Tool holder

Tool holder’s screws adopt special steel, hardening treatment, guarantee wear well. Pentagon tool holder can be equipped by any tools, such as drilling, boring and turning and so on. Exact position, fast clamping, easy operation.

2. Ram

Ram adopts high strength nodular cast irono, with high compression strength and good abrasive resistance, ensure the stiffness whtile the machine heavy cutting. According to the requirement of workpiece, square ram and pentagon tool can be optional.

3. Spindle bearing

Spindle bearing adopts the inland famous brand, improve the accuracy of the machine, long use period. The construction of the worktable is designed as the standard technological requirements, which can make the strength of the worktable improve greatly and it is not easy to deform and crack, good stability when using for a long time.

4. Worktable

The base of the worktable is annealing treatment, after turning, the guideway and the joint surface of worktable is hand scraping, the closed by oil film to ensure stable run.

5. Worm gear

The worm gear in the elevating box and the feed box adopts the latest allumen to ensure the parts abrade lightly and increase of service life when using.

6. Important faying

The important faying face like beam, slede seat,lathe bed is han d scraping, physical dimension accuracy of scraping face is high, scraping face is combined tightly, which can increase the reserve of lubricatin oil and reduce the friction parameter between faying faces to increase of service life.

7. Motor

The motor adopts the inland famous brand, enough driving force, wear well.

8. Gear box

The gear box adopts 40Cr material, with carburization and quenching treatment,stable run, small noise, make the abrasive resistance of the gear is stronger under the heavy load, increase the service life of the gear box’s gear.

9. Imported or China-made numerial controlling systems can be adopted according to user’s needs.
