Alloy Wheel Single Column Mini CNC Vertical Turret Lathe Boring Machine Price

1. Product Discription of Vertical Lathe Machine:

Vertical Turret Lathe Machine is suitable to process ferrous metal, nonferrous metals and partial non-metallic material, and could achieve the processing of turning of the end face, inside and outside cylindrical surface, inside and outside circular conical surface and drilling, expanding, reaming of the hole. The vertical lathe machine cutting action is controlled by the PLC, and feeding axis is driven by the AC asynchronous servo motor, with touch screen display and hand-held pulsed. Main transmission is driven by the spindle AC servo motor, hydraulic gear change and two gears stepless speed regulation. Tool rest adopts the T-type ram manual 5-tool position tool table structure with good rigidity and convenient tool change. Worktable is manual 4-jaw single movement chuck.

2. Main technical data:

3. Machine picture for your reference:

1. Ram

Ram adopts high strength nodular cast irono, with high compression strength and good abrasive resistance, ensure the stiffness whtile the machine heavy cutting. According to the requirement of workpiece, square ram and pentagon tool can be optional.

2. Spindle bearing

Spindle bearing adopts the inland famous brand, improve the accuracy of the machine, long use period. The construction of the worktable is designed as the standard technological requirements, which can make the strength of the worktable improve greatly and it is not easy to deform and crack, good stability when using for a long time.

3. Motor

The motor adopts the inland famous brand, enough driving force, wear well.

4. Gear box

The gear box adopts 40Cr material, with carburization and quenching treatment,stable run, small noise, make the abrasive resistance of the gear is stronger under the heavy load, increase the service life of the gear box’s gear.

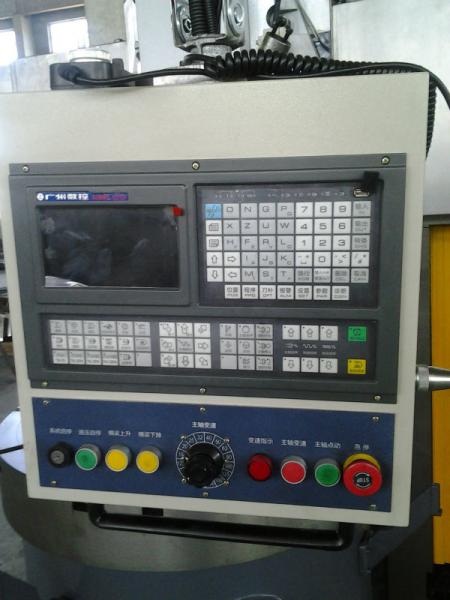

5 .Imported or China-made numerial controlling systems can be adopted according to user’s needs.
