Low Price Single Column Universal Manual VTL Machine Vertical Turning Lathe​

1. Function and features:

1. Vertical Turning Lathe Machine is mostly used to process middle-diameter tire mould and flanges, various valves and pipelines, pressure vessels, screw propeller, steamer machine accessories , plastic mould, shafts and other work-piece

2. Vertical Turning Lathe Machine is suitable for processing the internal/external cylindrical surface, conical surface, end face etc

3. Spindle bearings use domestic famous-brand company products.

4. Headstock takes symmetrical structure to make thermal deformation be even, avoiding the spindle center generates offsets.

5. Gears in headstock and guide way are processed by quenching to ensure accurate transmission and high rigidity.

6. Vertical lathe table inlaids with zinc alloy wear-resistant guide guard and can access pressure oil (0.2-0.4MPA) between the rails for improving load-carrying ability of workbench.

7. Vertical lathe casting has passed through strict artificially aged and vibration aging in order to make sure the rigidity and stability of lathe.

2. Main technical data:

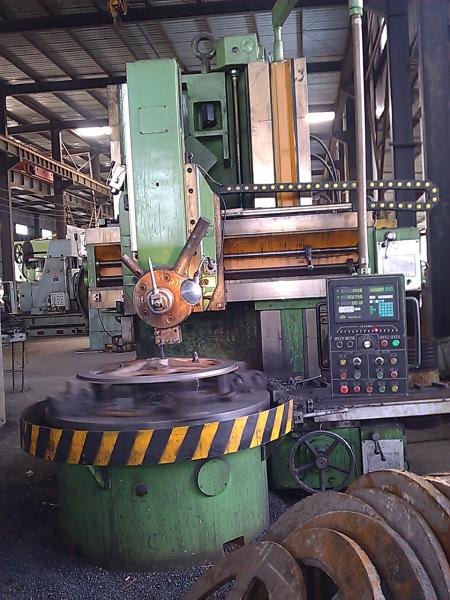

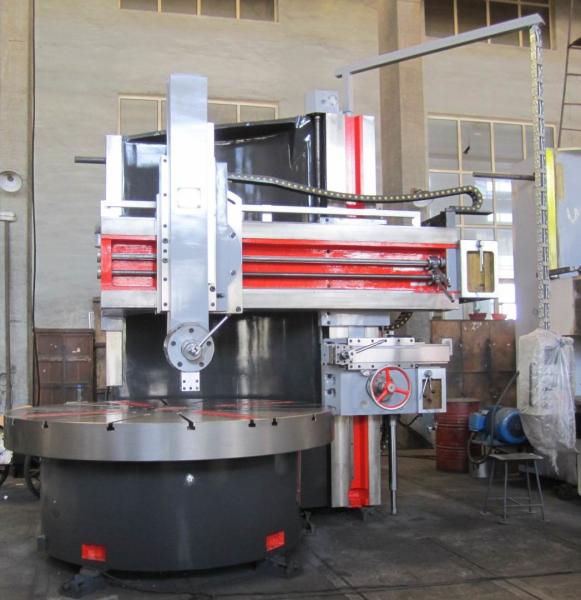

3. Machine picture for your reference:

1. Tool holder

Tool holder’s screws adopt special steel, hardening treatment, guarantee wear well. Pentagon tool holder can be equipped by any tools, such as drilling, boring and turning and so on. Exact position, fast clamping, easy operation.

2. Ram

Ram adopts high strength nodular cast irono, with high compression strength and good abrasive resistance, ensure the stiffness whtile the machine heavy cutting. According to the requirement of workpiece, square ram and pentagon tool can be optional.

3. Spindle bearing

Spindle bearing adopts the inland famous brand, improve the accuracy of the machine, long use period. The construction of the worktable is designed as the standard technological requirements, which can make the strength of the worktable improve greatly and it is not easy to deform and crack, good stability when using for a long time.

4. Worktable

The base of the worktable is annealing treatment, after turning, the guideway and the joint surface of worktable is hand scraping, the closed by oil film to ensure stable run.

5. Worm gear

The worm gear in the elevating box and the feed box adopts the latest allumen to ensure the parts abrade lightly and increase of service life when using.

6. Important faying

The important faying face like beam, slede seat,lathe bed is han d scraping, physical dimension accuracy of scraping face is high, scraping face is combined tightly, which can increase the reserve of lubricatin oil and reduce the friction parameter between faying faces to increase of service life.

7. Motor

The motor adopts the inland famous brand, enough driving force, wear well.

8. Gear box

The gear box adopts 40Cr material, with carburization and quenching treatment,stable run, small noise, make the abrasive resistance of the gear is stronger under the heavy load, increase the service life of the gear box’s gear.

9.I mported or China-made numerial controlling systems can be adopted according to user’s needs.
