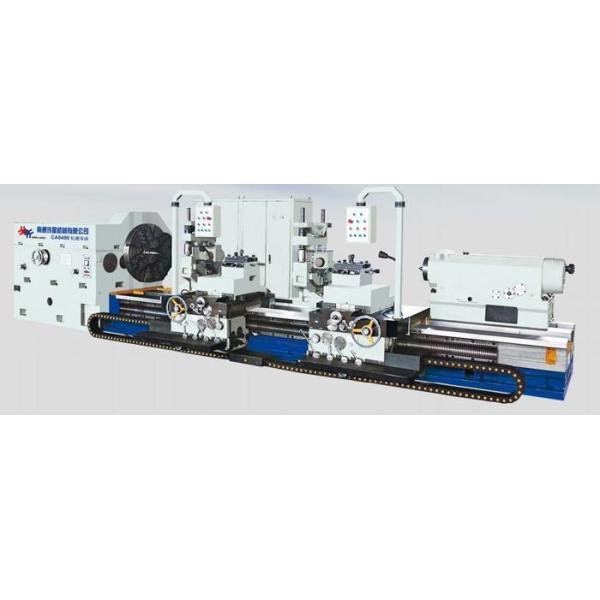

High Precision CNC Horizontal Lathe Machine / Roll Turning CNC Heavy Duty Lathe
High Precision CNC Horizontal Lathe Machine / Roll Turning CNC Heavy Duty Lathe
High Precision CNC Horizontal Lathe Machine / Roll Turning CNC Heavy Duty Lathe
High Precision CNC Horizontal Lathe Machine / Roll Turning CNC Heavy Duty Lathe
High Precision CNC Horizontal Lathe Machine / Roll Turning CNC Heavy Duty Lathe
High Precision CNC Horizontal Lathe Machine / Roll Turning CNC Heavy Duty Lathe
Specifications
Brand Name :
Baishun
Model Number :
C84125
Certification :
ISO; CE
Place of Origin :
China
MOQ :
1 set
Price :
negotiation
Supply Ability :
20 SETS PER MONTH
Delivery Time :
30 days
Packaging Details :
Export package
Max. turning diameter :
500mm
key words :
CNC Horizontal Lathe Machine
name :
cnc mill roll turning lathe machine
Warranty :
12month
Color :
as customer's requirement
Maximum turning length :
2500mm
Description

CK84125 roll turning lathe machine with high quality one warranty and good after-sales service

About CK84 Series CNC Roll Lathe

CK84 Series CNC Roll lathe using Siemens 802D CNC,servo motor drive.The machine tool designed to fully analyze the ATOMAT Italy, Germany HERKULES's roll lathe technical performance indicators, new forms of mechanical structure, at the same time drawing on well-known domestic machine tool companies of similar experiences.The machine tools suitable for a variety of materials roll, roll the compound of the Central and rough, finishing.
4,the overall use of machine tool guide rail+1 auxiliary guide for a high-rigidity machine tool provides a reliable guarantee.
Saddle-bed machine tools, mobile tool using high-rolling rigid rail support and enhance the stability of the machine tools and high-rigid system, as well as sensitivity to ensure that the machine's overall accuracy of intergrated processing, machine-wide stainless steel rail protection.Frequency use spindle motor power 30KW,stepless speed regulation.
Machine tools equipped with special software, interactive operating system can cylindrical roller,pass automatic programming, thereby reducing the cumbersome programming work, improve efficiency.

PROFESSIONAL & SPECIAL DESIGN FOR ROLL TURNING MACHINE.

1. FAST roll turning by CNC.

2. Special European Frame Type tool post support heavy-duty cutting.

3. Germany Brand 'SIEMENS 808D CNC controller offer 0.001mm resolution.

4. Centralized automatic lubrication pump provides automatic lubrication to all key units.

5. Big bore spindle was made by high tensile, forged alloy steel with hardened and precision ground.

Technical Specification

Model CK8450 CK8465 CK8480
Max.swing over bed 500mm 650mm 800mm
Maximum turning length 2500mm 3500mm 5000mm
center height 350mm 470mm 550mm
Maximum weight of workpiece 3500kg 7000kg 14000kg
Max.cutting force for single carriage 20kn 40kn 50kn
Max. Torque for faceplate 5kn.m 12kn.m 14kn.m
spindle speed 2-400r/min 3-315r/min 1.5-250r/min
Step of spindle speeds stepless stepless stepless
spindle speed change way hydraulic auto hydraulic auto hydraulic auto
diameter of faceplate 500mm 650mm 800mm
feed step stepless stepless stepless
Rapid travelling speed of longitudinal 1-3000mm/min 1-3000mm/min 1-3000mm/min
Rapid travelling speed of transverse 1-2000mm/min 1-1500mm/min 1-2000mm/min
Travel of tailstock quill 150mm 150mm 300mm
motor 22KW 37KW 55KW
Torque of servo motor Z-axis 27N.m 36N.m 50N.m
Torque of servo motor X-axis 10N.m 27N.m 27N.m
cover mode stainless stainless stainless
dimension 5546*1875*1400mm 7600*1800*1600mm 9600*2500*2000mm
machine weight 11500kg 15000kg 25000kg
