Bigh Capacity Full Automatic Used Tire Recycling Machine Manufacturer

A: Brief introduction of used tire recycling machine

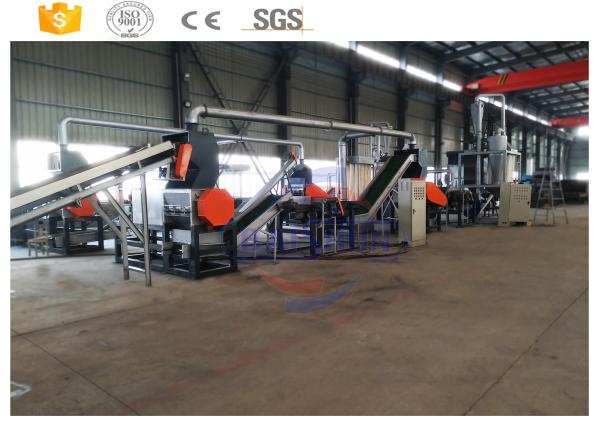

The tire shredding Machine system is designed to produce up to 1.2-10 tons per hour of TDF. TDF systems produce a 25mm to 152mm(1''-6'') rubber chip, which is used as a coal additive for industrial boilers. Many of these facilities are turning to TDF because it burns hotter and cleaner than coal and is more cost effective. Rough shreds can be outputted for use or processed further to remove steel from the rubber resulting in Wire-free TDF.This plant is made of two main parts: double shaft shredder and screen.

B: Unique advantages

C: Tire recycling machine specific machine introduction

a. Steel wire drawing machine introduction and technical data
1. Before cutting and grinding use steel wire drawing machine, it can protect the blades of tire shredder, prolong the service life of the blade and increase the working efficiency of the shredder ;
2. This model is composed of motor, hydraulic system, steel wire retractor, pull mouth, body;
3. The motor drives hydraulic system and oil cylinder, and steel wire retractor is connected to the cylinder pull rod. The movement of oil pump and oil cylinder makes wire retractor do reciprocating movement.

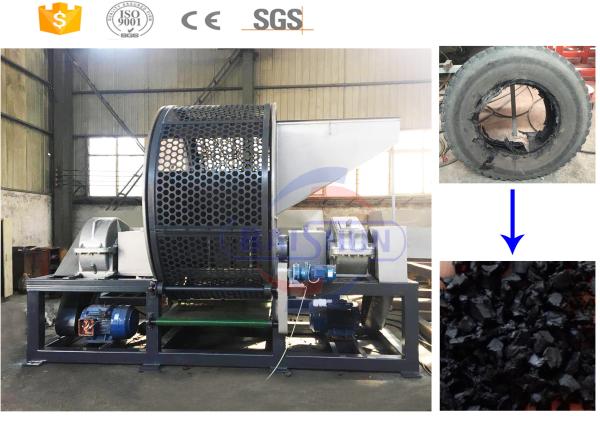

b. Tire shredder machine introduction and technical data
1. The shredder machine has the advantage of compact structure, advanced technology, low consumption, high efficiency;
2. The grinding chamber is of open structure, convenient repair and maintenance;
3. The speed reducer adopts hard-toothed surface reducer, high precision, high transmission efficiency, stable operation, low noise, small volume, light weight, and long service life.
4. Electronic control system is for PLC programming with start, stop, forward, inversion and overload automatic protection function.
5. There is a large application range, it can shed plastic box, cartons, cans, paint bucket, rubber and so on.

c. Steel wire separator machine introduction and technical data
1. Input the rubber with 50*50mm, output the rubber granule with size 10-15mm;
2. This machine can process tire rubber block with the steel wire into rubber granule and separate the steel wire out from rubber with the steel wire, Due to the special design of moving and fixed blades, the machine is high efficient and the blade is strong rigidity, high wear resistance and long service life;
3. Humanized design: more safety, easy operation and maintenance.

d. Rubber Granule Machine introduction and technical data
1. Rubber crushing machine is used to crush the rubber from the shredder machine, and the particle size can reach 1mm after crushing.
2. For this kind of machine, it is suitable for crushing thin and fragile material, such as plastic, 5-20mm rubber granule etc. The radial deflection X-shaped occlusal structure of the moving blade and fixed blade effectively reduces the cutting resistance and improve the cutting performance, so it can increase the output and reduce energy consumption.
3. For the rubber with different shape and thickness, the machine adopts specific cutter body structure, high strength solid shaft and cutter frame which makes crushing efficiency and capacity increase obviously

e.Fiber separator machine introduction and technical data
It is mainly applied to separate the nylon fiber from the mixture of rubber power and nylon fiber, and then get pure rubber powder;

f.Fine grinder machine introduction and technical data

1. The fine grinder is applied to crush rubber powder or rubber granule into more smaller size and it can reach 100mesh or mall smaller;
2. The basic principle is through two millstone relative movement, cutter and milling the materials achieving the final purpose.

E.Detail information (bearing and blade)

F.Packing and shipping

Packing: In plastic wrap, wooden case and container or as required;
Shipping: Within 30 days after receving the deposit
Container: Usually 3 pieces 40GP container will be okay.

H: Why choose us

1. All kinds of agreement can be signed with your company if you have any afraid for our products;

2. Quality is our culture ;

3. With us your money in safe, your business in safe ;

4. we think our product will give you an edge over your competitors ;

5. 7*24 hours multi-language professional after-sales service group .

Please do not hesitate to contact us and we will show you some VIDEOS about tire recycling machine for your reference !!!!
