Specifications
Brand Name :
WEJOIN
Model Number :
WJAT211
Certification :
SO 9001:2008, CE,
Place of Origin :
Shenzhen, China
MOQ :
1 set
Price :
negotiation
Supply Ability :
1, 0000 set / month
Delivery Time :
2-7 working days after payment received
Packaging Details :
Export Wooden Case
Cabinet Material :
304 Stainless steel

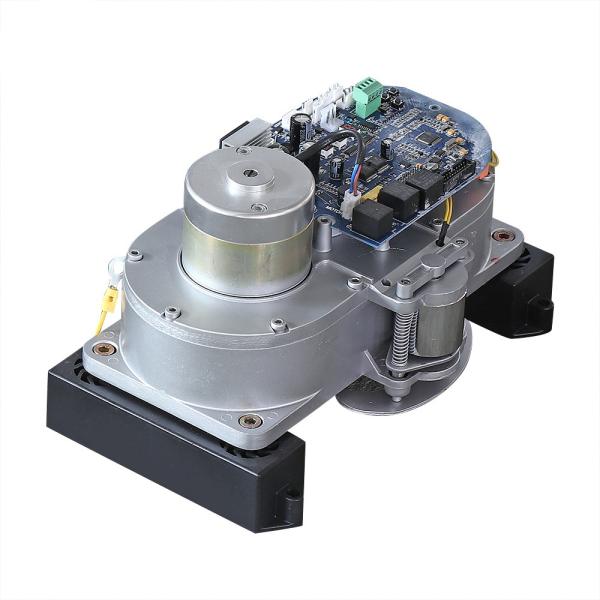

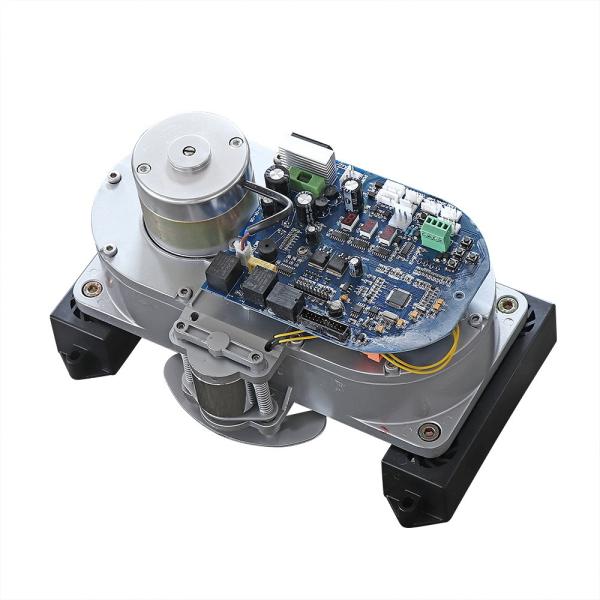

Mechanism :
Die-casting Alloy Aluminum
Communication :
RS232
Feature :
Durable
Warranty :
1 Year
Rotating Direction :
both way
Description

Tripod Turnstile Gate

Applications:
The tripod turnstiles can be used in places such as restaurants, hotels, office buildings, museums, gyms, clubs, metros, bus stations, high class communities, intelligent buildings, hotels, subway stations and other high level venues, ect.

Functions& Features
1). Exquisite rotating plate and self-lock echanism
2). Bi-directional pass/any single direction pass(adjustable)
3). Arm auto-drop when power off and manual rise up when power on
4). Self-lock within 5 seconds
5). Avoid unauthorized access
6). Counter output
7). Fire alarm emergency signal outpu
8). Input interfaces available for left access (L), right access(R), emergency (EM), END

After-sale Service:
1 year warranty
Lifetime Service with charge accordingly

Our Service

Pyment Term Leading Time Minimum Order Supply Ability Package
T/T; West Union 5-7 working days 1 Unit 10,000 Unit/ Month

Paper Carton or Wooden Box



Technical Parameters

Item WJAT211
Material of housing 304 Stainless steel
Dimension of Housing 420*330*980mm
Length of Pole(out of housing) 490mm
Net Weight 50KG
Max load-bearing of pole 3kg
Power Supply AC220V±10%,50HZ;AC110V±10%,60HZ
Working Voltage of motor DC12V
Rated Power 50W
Driving Motor Brush dc motor
Input Interface

DC 12V electrical level signal, more than 1oms, or DC 12V impulse signal
driving current. more than 10ms

Transit speed 25-32 persons/min
Working Temperature -25℃C~+55°C
Working environment Indoor/ Outdoor
Relative humidity <95%, no condensation


Q1: What is your main products?
A: Its main products include automatic barrier gate, tripod turnstile, flap barrier, swing barrier, etc.
Q2: Are you manufacturer? Do you provide ODM / OEM service?
A: Yes, we are manufacturer. WEJOIN provide professional cudtomized serice for global clients.
Q3: I would like to ask if this is with Mifare reader and controller?
A: Yes, there is a controller, our turnstile has control board, can connect with Mifare reader.
Q4: Can we buy this product and grant acess to the user via cell phone app/bar code? What access point options does it come with? Card? Token?
A: Yes, you can connect the turnstile with bar code reader, and other customized access controller.
Q5: What is your MOQ?
A: Any quantity is acceptable.
Q6: How much is 1 set ? Can provide product details? How fast and how much it would cost to ship this item?
A: Please send your inquiry, then we will send you the price and details in time.
Q7: How about payment option?
A: 30% by T/T, 70% by T/T before delivery.
Q8: Do you have a model that can be used outdoors without further shelter?
A: Yes, It can be used outdoor without shelter. But product life will be longer with shelter.
Q9: How much warranty time do you have?
A: Whithin one years, if any problems, we will offer the accessories.
Q10: Do you use wechat? Can we plaese talk on wechat? or whatsapp?
A: Yes,my wechat ID FZ15002051250, my phone number/whatsapp is +86 15002051250, my skype ID wejoin09.
