Infrared photocell Security Products, Access Control Products, Flap Barrier, manufacture of China
Infrared photocell Security Products, Access Control Products, Flap Barrier, manufacture of China
Specifications
Brand Name :
WEJOIN
Model Number :
WJTY201
Certification :
CE ISO SGS
Place of Origin :
CHINA
MOQ :
1 set
Price :
negociate
Payment Terms :
T/T
Supply Ability :
1000 pcs/month
Delivery Time :
3-5 working days
Packaging Details :
wooden
housing material :
stainless steel
motor material :
aluminum alloy
function :
fast speed security
Product name :
Flap barrier
Power supply :
AC220V/110V
Working environment :
Indoor / Outdoor ( Shelter)
Description

Infrared photocell Security Products, Access Control Products, Flap Barrier, manufacture of China

Functions and features

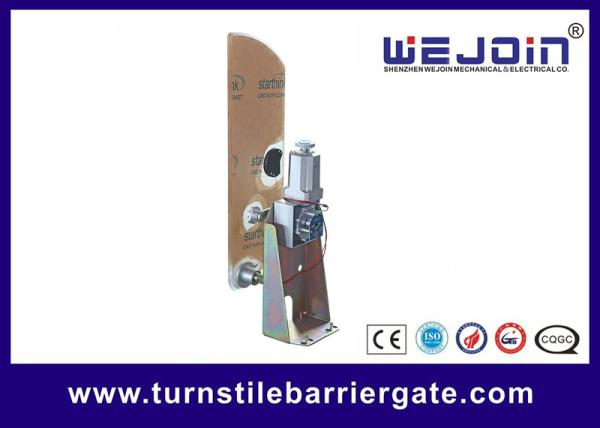

  • a compact electro-mechanical design with unique drive and a self-lock mechanism

  • automatic detection for malfunction

  • input interface for dry contact and switch signal connection

  • adjustable auto-delay closing

  • infrared photocells for safety access

  • alarm for unauthorized access and no access against passenger flow

  • anti-reversing passing

  • auto closing when power on

  • auto open and free access when power off

  • adjustable access directions

  • emergency interface available

  • traffic light indicating passenger access

Technical data

  • Housing dimension: bridge type bevel angle 1400*270*1000mm

  • Flap arm length: 275mm

  • Max arm width: 900mm

  • Housing material: stainless steel 304

  • Power supply/frequency: AC220V±10%, 50HZ

  • AC110±10%, 60HZ

  • Drive motor: 12V direct current brush motor

  • Flow speed: 25~30/minute

  • Input interface: +5V electric level signal or ＞100ms impulse signal, drive current >10mA, dry contact (COM NO).

  • Opening and closing time: 0.5 minute

  • Power on and reset time: 3s

  • IP protection degree: IP 32

  • Working environment:

  • Inner and outer (with shelter)

  • Temperature: -25℃~+50º℃

  • Relative humidity: ≤90%
