Specifications
Place of Origin :
China
Brand Name :
WEJOIN
Certification :
CE,ISO
Model Number :
WJTY312
MOQ :
1pcs
Price :
negotiation
Packaging Details :
Wooden box
Delivery Time :
10-30 days
Payment Terms :
T/T, Western Union
Supply Ability :
50PCS/week
Product name :
Flap barrier
Material :
304 Stainless Steel
Power supply :
AC220V/110V
Type :
single core & double core
Color :
Stainless Steel Color
Direction :
bi-direction adjustable
Description

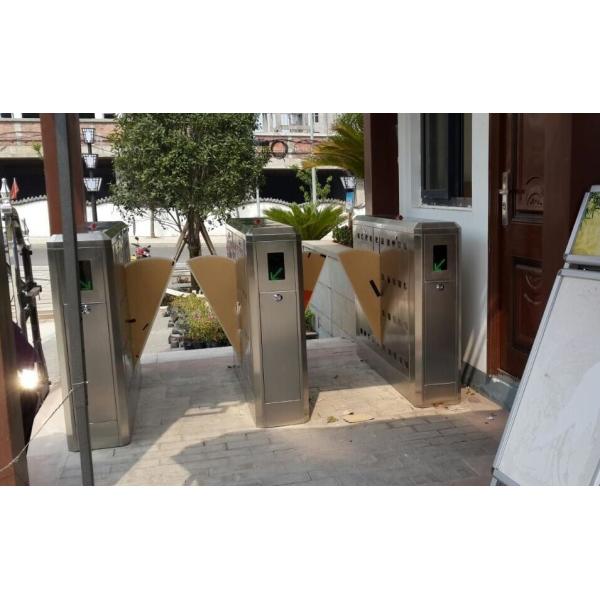

Pedestrian Speed Gate Intelligent optical turnstile For High Class Communities

Description:

1. Intelligent flap barrier is a brand-new product of WEJOIN company. Flap barrier, as the upgraded version of the tripod turnstile and swing barrier, is a hi-tech product for pedestrian access control. WEJOIN flap barrier has features of precise craftsmanship, comprehensive functions and high technology.

2. It has application in high class communities, intelligent buildings, hotels, subway stations and other high level venues.

3. Flap barrier is the combination of machinery, electronic, CPU control and variety of personal authentication identification technology. IC card, ID card, code bar, and fingerprint identification unit are compatible with the flap barrier. Choosing different identification equipment and applying reliable security protection devices, alarm devices, direction indicator to realize the intelligent management of access control is comply with the fire safety requirements.

4. Flap barrier motor can be classified into single motor and double motors. The single one is used for single lane and the double one is used for multi-lanes.

Functions and Features

1. A compact electro-mechanical design with unique drive and a self-lock mechanism (no need regular gear clutch structure).

2. Automatic detection for malfunctions.

3. Input interface available for dry contact and switch signal connection.

4. Adjustable auto-delay closing

5. Infrared photocells for safety access

6. Alarm for unauthorized access and no access against passenger flow

7. Anti-reverse passing

8. Auto-closing when power on

9. Auto-open and free access when power off

10. Adjustable access directions.

11. No battery is needed.

12. Emergency interface available.

13. Traffic light indicating passenger access.

Specifications

Model

WJTY311

Cabinet dimension

1400mm(L)×305mm(W)×1020mm(H)

Stretching-out flap length

440mm

The max lane width

900mm

Cabinet material

304 stainless steel & aluminum alloy

Power supply

AC220V±15%, AC110V±15% 50/60Hz

Motor voltage

DC24V (brush motor)

Access device input voltage

dry contact

Max flow rate

30~40 people per minute

Flap opening/closing time

0.5s ~ 1s

reset time when power on

2s

protection grade

IP32

working environment

outdoors (with shelter) and indoors.

working temperature

-25°C ~ +50°C
