Electronic Car 110v / 220v Toll Gate With Rs485 Converter For Parking System
Electronic Car 110v / 220v Toll Gate With Rs485 Converter For Parking System
Electronic Car 110v / 220v Toll Gate With Rs485 Converter For Parking System
Electronic Car 110v / 220v Toll Gate With Rs485 Converter For Parking System
Specifications
Brand Name :
WEJOIN
Model Number :
WJDZ701
Certification :
CE,ISO
Place of Origin :
Guangdong, China (Mainland)
MOQ :
1 Set
Price :
US $400-600
Payment Terms :
T/T, Western Union
Supply Ability :
100 Set/Sets per Day
Delivery Time :
3 working days
Packaging Details :
carton or wooden package
Color :
red and yellow
Material :
steel housing
Direction :
left & right installed
Speed :
3s ,6s
Motor :
aluminum alloy
Voltage :
110v/220v
power :
120w
Description

110v/220v Toll Gate with RS485 Converter for Parking System

Function & Features:

1.Advanced manual release

2.Boom can rise and fall on left/right sides by setting on the same machine

3.No need to change the balance spring when changing the booms shorter than 6 meters

4.Adopt the 3rd generation WEJOIN machine core

5.Support the INFRARED PHOTOCELL for anti-bumping function (optional)

6.Support the external and internal VEHIVLE LOOP DETECTOR (optional)

7.Auto warming up ,suitable for cold environment.

8.Auto closing

9.RS485 communication module (optional)

10. Thermal radiates rapidly, no thermal protection

11.Die-casting aluminium alloy machine core and advanced double-stage driving motor effectively solve the problem of machanism block up

12.Special art and craft makes out the most modernized and fashionable housing

13.Safety photoelectricity limit switch

Technical Data:

1) Beam length: <=6m

2) Opening (Closing) time: 4s, 6s, 8s

3) Center height: 0.83m

4) Machine core working temperature: -40 degrees to +75 degrees

5) Electric working temperature: -40 degrees to +75 degrees

6) Rated voltage: AC 220V (10%) 50Hz/60Hz, 110V (10%) 50Hz/60Hz

7) Rated power: 120W

8) Relative humidity: <=90%

9) Remote control distance: >=30m

10) Net weight: 70KGS

11) Protection grade: IP44

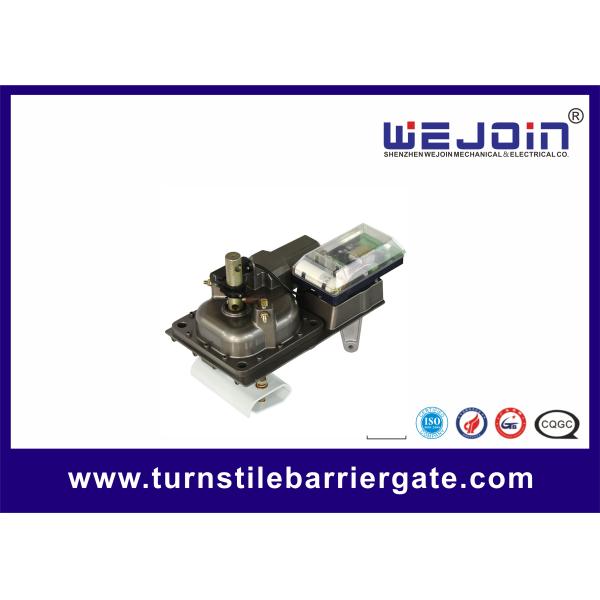

Mechanism Core
