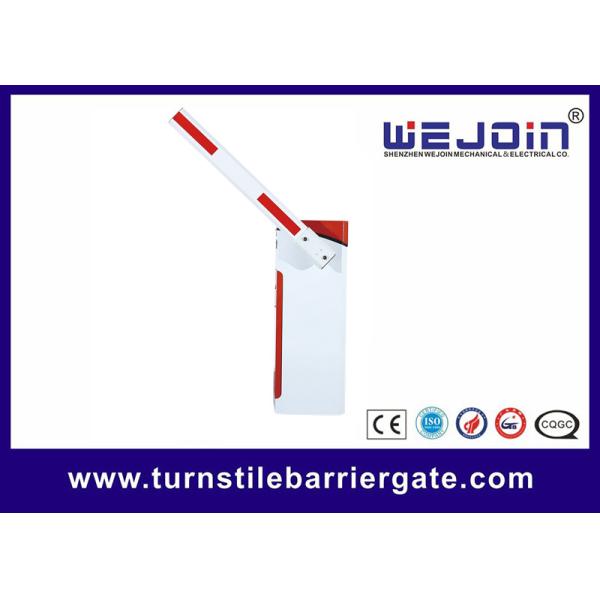

Remote Control 150W 6M Boom Parking Gate Barrier
Remote Control 150W 6M Boom Parking Gate Barrier
Specifications
Brand Name :
WEJOIN
Model Number :
CB01SV
Certification :
CE ISO SGS
Place of Origin :
CHINA
MOQ :
1 set
Price :
negotiation
Payment Terms :
T/T, Western Union
Supply Ability :
10000 sets/month
Delivery Time :
12 working days after payment received
Packaging Details :
carton
Boom Type :
Straight boom
Housing color :
white and blue
Application :
parking lot
Speed :
1-2s/3-5s speed adjustable
Boom length :
Max 6M (customized)
Arm material :
Aluminum alloy
Description

Remote Control Parking Barrier Road Automatic Mid-speed Gate Barrier

Vehicle Barrier Gate Functions & Features
1). DC permanent magnet synchronous motor(PMSM), servo control.
2). The motor has the same performance as the main motor of the CNC machine tool and the electric vehicle motor, it has high control precision, high torque density, good torque balance, low power consumption, high efficiency, and low noise.
3). Bi-direction boom holder design: left-installation and right-installation can be exchanged easily and quickly.
4). Manual clutch design: when power-of, turn the handwheel a little, then move the boom by hand.
5). Double tension spring crank transmission design, for a more stable and reliable structure.
6). No limit switch design, accurate encoder detection, detecting boom position when power on. And open/close speed is adjustable.
7). More sensitive and reacting faster when reversing on obstacles.
8). With counting, delay auto-closing, and auto-aging test function.
Technical Data

Model

WJCB01SV-I

Running Speed

3/4/5S

5S

5S

5S

5S

Boom-Type

Straight

90° Folding

180° Folding

2 Fence

3 Fence

Max Boom Length

4.5M~6M

5M

4M

4.5M

4M

Input Voltage

AC220V±10%, AC110V±10%

Frequency

50/60HZ

Motor Voltage

DC310V

Enclosure Rating

IP54

Working Temperature

-35°C ~ +85°C

MTBF

6000000 times

Traffic Flow Application

24 hours of uninterrupted operation

Max Motor Power

150W

Max Motor Speed

36r/min

Max Torque

240N.m

FAQ
Q: Are you a trading company or manufacturer?
A: We are a factory.

Q: How long is your delivery time?
A: Generally it is 2-5 days if the goods are in stock. or it is 5-7 days if the goods are not in stock, it is according to quantity.

Q: Do you provide samples ? is it free or extra?
A: Yes, we can't offer the sample for free charge.
