Security Entrance Parking Lot Barriers , Vehicle Barrier Gates Manual Clutch Design
Security Entrance Parking Lot Barriers , Vehicle Barrier Gates Manual Clutch Design
Specifications
Brand Name :
WEJOIN
Model Number :
WJDZ04SV
Certification :
CE ISO SGS
Place of Origin :
CHINA
MOQ :
1 set
Price :
Negotiable
Payment Terms :
T/T, Western Union
Supply Ability :
10000 sets/month
Delivery Time :
3-5 working days after payment received
Packaging Details :
carton
Motor :
Die Casting Aluminum Alloy
Speed :
3~5s adjustable
Power :
150W
Voltage :
AC220V; AC110V
Application :
parking lot
Boom length :
Max 6M (customized)
Description

Security entrance access control automatic car parking lot barrier gate

Parking Barrier Gate Quick Detail

WEJOIN Mid-Grade Servo Barrier Gate WJDZ04SV

DC Brushless Servo Motor

Higher Stability, Longer Service Life and Easier Operation

Parking Barrier Gate Technical Data

Model WJDZ04SV1 (speed 3~5s adjustable)
Running Speed 3S 4S 5S 5S 5S 5S
Boom Type Straight Straight Straight 90° Folding 2 Fence 3 Fence
Max Boom Length 4.5M 5M 6M 5M 4.5M 4M
Model WJDZ04SV2 (speed 1.5~5s adjustable)
Running Speed 1.5s 2/3/4/5s 5s 5s 5s
Boom Type Straight Straight 90° Folding 2 Fence 3 Fence
Max Boom Length 3.5m 4.5m-6m 4m 4.5m 4m
Housing Dimension 362*325*1030mm
Input Voltage AC220V±10%,AC110V±10%
Frequency 50/60HZ
Motor Voltage DC310V
Enclosure Rating IP54
Working Temperature -35°C~+85°C
MTBF 5000000 times
Traffic Flow Application 3000 times/24hours
Max Motor Power 150W
Max Motor Speed 24r/min
Max Torque 240N.m

Parking Barrier Gate Application

Suitable for indoor as well as outdoor parking area
Parking lots, goods yard, railway crossing, commercial premises, apartment block access shopping malls, hospitals, stadiums, business centers,etc.

Parking Barrier Gate Functions & Features

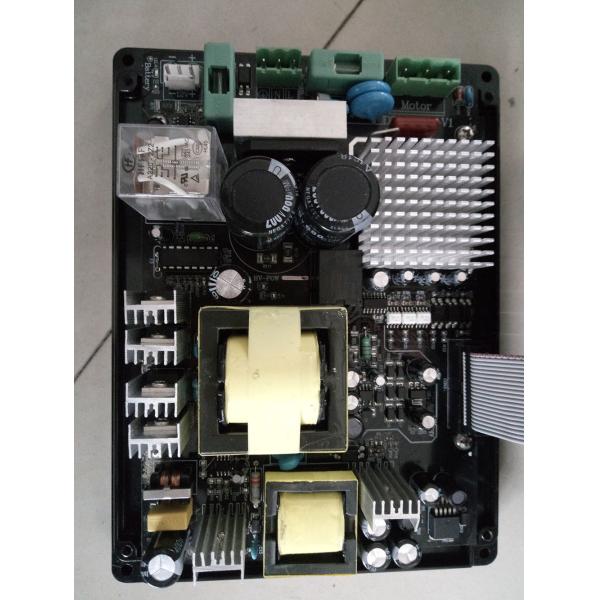

1). DC permanent magnet synchronous motor(PMSM), servo control.
2). The motor has the same performance as the main motor of the CNC machine tool and the electric vehicle motor, it has high control precision, high torque density, good torque balance, low power conaumption, high efficiency and low noise.
3). Bi-direction boom holder design: left-installation and right-installation can be exchanged easily and quickly.
4). Manual clutch design: when power-of, turn the handwheel a little, then move the boom by hand.
5). Double tension spring crank transmission design, for more stable and reliable structure.
6). Integrated RS485 communication, infrared photocell and loop detector interface. RJ45 network, loop detector, and radar module can be added.

Parking Barrier Gate Packing List

Name

Specification

Quantity

Unit

Application

Screw, Nuts, Flat Pad

M12*70

2

sets

Fixing the boom

Boom Fixing Bar

1

pcs

Fixing the boom

Boom Holder Plastic Cover

1

sets

Optional

Cabinet Fixing Bar

2

pcs

Fixing the boom

Expansion Screws

M16*150

4

sets

Fixing the boom

Support Post

1

pcs

Optional

Radio Emitter

1

pcs

Optional

Keys

2

pcs

For cabinet door

Remote Controller

2

pcs

Manual

1

pcs
