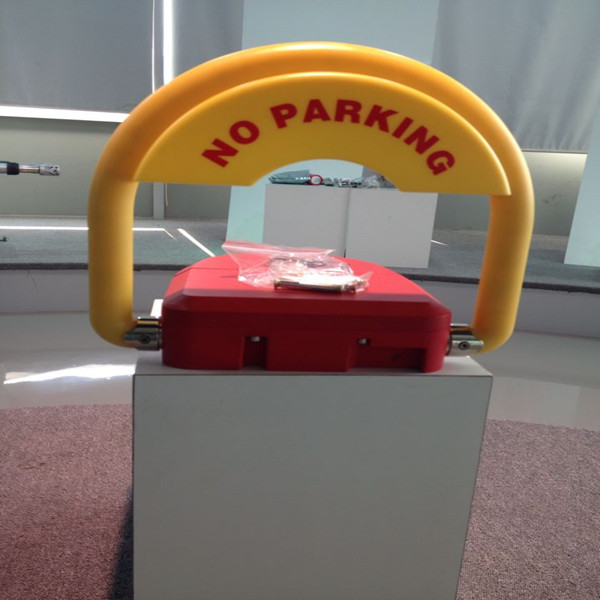

Heavy Duty Parking Lock Device Intelligent Self Re - Positioning Noise Free
Heavy Duty Parking Lock Device Intelligent Self Re - Positioning Noise Free
Heavy Duty Parking Lock Device Intelligent Self Re - Positioning Noise Free
Heavy Duty Parking Lock Device Intelligent Self Re - Positioning Noise Free
Specifications
Brand Name :
WEJOIN
Model Number :
WJCS101
Certification :
CE,ISO,SGS
Place of Origin :
SHENZHEN
MOQ :
1 SET
Price :
USD 150-200 SET
Payment Terms :
Western Union, T/T
Current :
0.4A
Running time :
4~6s
Dimension :
357*370*82.5mm
Warranty :
12 months
Type :
Car Parking Space Lock
Color :
yellow
Description

High quality heavy duty remote control car safety automatic parking lock

Parking Lock Technical Specification

Standard Voltage

DC12V

Battery Voltage

DC12V, 7Ah

Dimension

357*370*82.5MM

Operational Current

0.4A

Up to Down Time

4~6 Seconds

Vertical Position Height

340MM

Horizontal Position Height

82.5MM

Remote Control Distance

15M

Working Temperature

-35°c~+55°c degree centigrade

Maximum Bearing Weight

5 tons

Protection Grade

IP68

Parking Lock Product Description
1. Energy-saving
2. Safe & Hermetic
3. Intelligent self re-positioning
4. Noise-free & Burglarproof

Parking Lock Functions & Features:

1. Energy-saving; the battery is a best product in China and the power in it will last for half a year.

2. Safe; the power connection is anti-disconnecting design in case that the user misplaces the battery causing short circuit; battery installation is easy.

3. Durable; the cabinet is made of die-casted Zinc alloy with high quality, and the maximum weight of load-bearing is 5 tons; the cabinet is coated with varnish, being water-proof and anti-rust in harsh weather. The sway arm is made of fiber-reinforced nylon, and it will not deform even after car crushing.

4. Hermetic; the cabinet is tightly closed, and Protection Grade is IP68. It is waterproof and dustproof. It can be used broadly.

5. Auto re-positioning; the external force could not change the sway arm position when it is vertical; when the sway arm is forced to a horizontal position, it will re-position vertically, unless the user uses remote control to put it horizontally.

6. Noise-free; bearing transmission design of the motor makes almost zero noise. It is beneficial
for battery and motor longevity and lesser friction.
7. Burglarproof; the mounting bolts are placed inside of the cabinet. No one can open it without
key.
8. Easy Installation: four prepared holes at the bottom of the cabinet makes it easy to install.

Heavy Duty Parking Lock Device Intelligent Self Re - Positioning Noise Free
