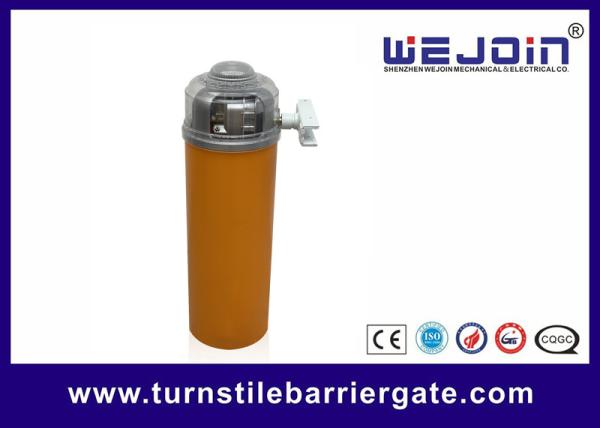

No Spring Mechanism Parking Barrier Gate DC Variable Frequency Control System
No Spring Mechanism Parking Barrier Gate DC Variable Frequency Control System
Specifications
Brand Name :
WEJOIN
Model Number :
SCB02
Certification :
CE ISO SGS
Place of Origin :
CHINA
MOQ :
1 set
Price :
negotiation
Payment Terms :
T/T, Western Union
Supply Ability :
10000 sets/month
Delivery Time :
12 working days after payment received
Packaging Details :
carton
Boom Type :
Straight round boom
Housing color :
Orange
Application :
parking lot
Speed :
0.3 seconds MAX
MTBF :
8,000,000 times
Arm material :
Aluminum alloy
Description

DC variable-frequency control system no-spring mechanism 3D parking barrier gate

3D Barrier Gate Technical Data

1. Working temperature (motor): -35℃~ + 70℃

2. Power supply input voltage: AC110±10%, AC220V±10%

3. Controller input voltage: DC24V±10%, 10A

4. Motor power: up and down power 180W; horizontal power 60W

5. Relative Humidity: 30%~80%, No condensation

6. Distance of remote control: L≥30M

7. Running Speed: 0.3 seconds MAX

8. MTBF: 8,000,000 times

Barrier Gate Maintenance

Name

Specification

Quantity

Unit

Application

Screw, Nut, Plastic Cover

M8*10

1

sets

Fixing the boom

Expansion Screws

M16*150

4

sets

Fixing the cabinet

Support Post

1

pc

Optional

Radio Emitter

1

pcs

Optional

Keys

2

pcs

For cabinet door

Remote Controller

2

pcs

Manual

1

pcs

Parking barrier Common Malfunctions and Solutions

Malfunction Phenomenon:The LED digital tube of the slave motor displays IdLE

Possible Causes:

1.The slave motor sensor plug is not plugged in or the wire is loose;

2. Slave motor sensor failure

Solution:

1. Check the slave motor sensor plug

2. Replace the slave motor

Malfunction Phenomenon:LED Prompt: motor sensor is not detected

Possible Causes:

1.The main motor sensor plug is not plugged in or the wire is loose

2. Main motor sensor failure

Solution:

1. Check the main motor senor plug, and plug well

2. Replace the main motor

No Spring Mechanism Parking Barrier Gate DC Variable Frequency Control System
