Specifications
Brand Name :
Hongchuangwei
Model Number :
CW404
Certification :
CE
Place of Origin :
China
MOQ :
2
Price :
USD299~499 per piece
Payment Terms :
T/T
Supply Ability :
1000 pieces weekly
Delivery Time :
6-10 working days
Packaging Details :
wooden case/carton
Name :
Swing turnstile barrier gate
Housing Material :
Stainless Steel
Thickness of case :
0.93mm
Top cover Thickness :
1.13mm
lane width :
500mm
pass direction :
bidirectional
waterproof :
IP55
outdoor use :
support
cutimization :
acceptable
Description

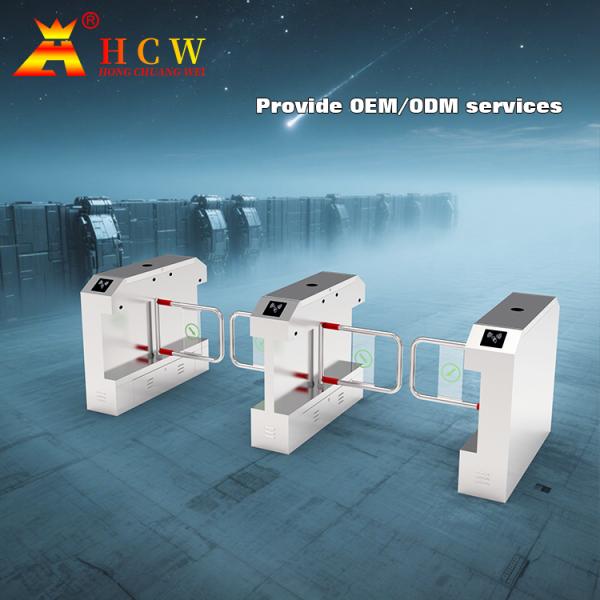

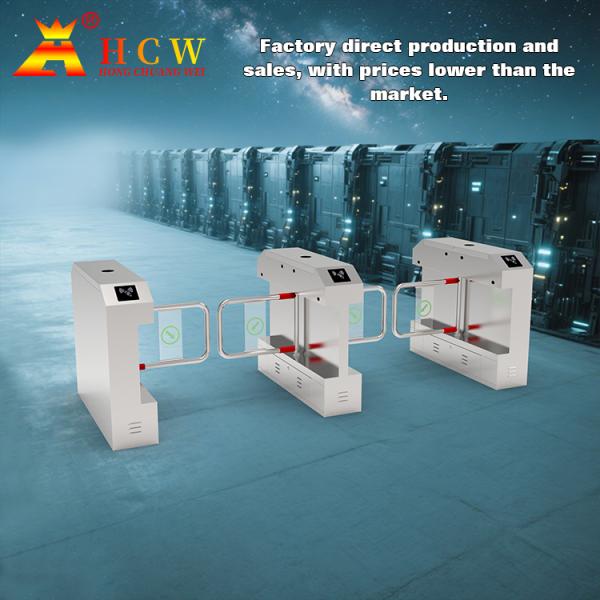

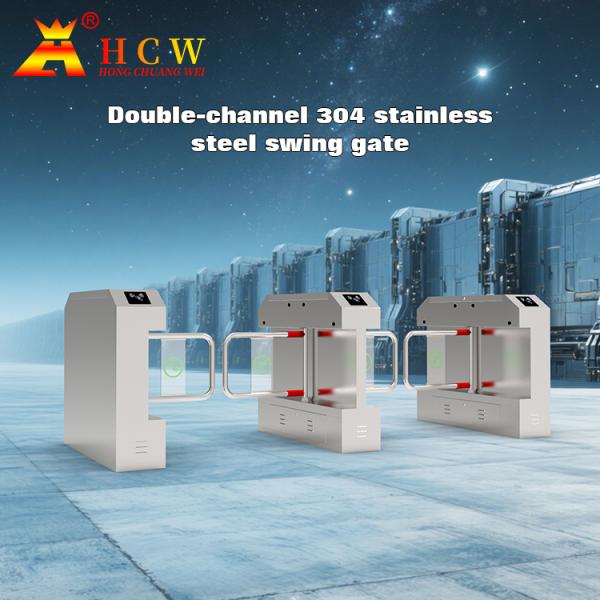

500mm Width Swing Barrier Gate Single Pole Trolley Barrier Gate

Feature & Function

1. Flap barrier is with 485 interface for long-distrance control concern.
2. Anti-rush function: If there is no open single, arm will be holding tightly.
3. When power off, arm open automatically and power on again, arm will be held automatically.
4. When valid card read and passenger passed, arm can be delayed to close from 1-60s which can be set in the control panel.
5. Auto-reposition function: After card read, passenger not pass within regulated time period, full-height turnstile will cancel this passing right. And the regulated time period for passing can be set by managers.
6. If passenger pass without card read or valid card read, flap barrier will alarm untill passenger get back from the flap barrier and then take a valid card to be read for passing.
7. Problem-self-checking function.
8. Many options of working ways: Bi-direction card reading; One direction card reading and another no reading; One direction card reading and another freely. And single direction photocell controlled passing and close. Working ways can be set in the control panel.
9. Stable running with little noise.

1.The electric control adopts DC motor to drive stable and reliable, and has low failure rate. Ultra high light traffic indicator function: directional instructions are designed with ultra bright LED lights, indicating more prominently;

2.In the case of the person who has not swiped the card into the passageway, the equipment alarm will prompt the traveler to swipe the card.

3.The function of the reverse alarm system: when a pedestrian swipes the card, the device alarms the alarm.

4.Check the following function: when the first person swipes the card, the second person doesn't swipe the card and the device will alarm.

5.The bicycle delay function: prevent the gate from hitting the bicycle;

6.Various control functions: by set the setting, the brake machine can be set at special time to the regular open mode, which satisfies a large number of people.

7.The mode of choice: to meet the different requirements, it can be set up as a two-way credit card or a one-way credit card and free pass.

8.Various control functions: external button, remote control, bar code, IC or ID, etc. 9.Remote control function: the RS485 can be connected to RS485 by computer and the RS485 remote control brake machine.

10.Automatic reset function: after the credit card has not passed in the specified time, the lock will return the lock to cancel the pass, time 1-60 seconds.

Indicator
Green means passage
Power supply for core
AC100~220V 50/60Hz
Operational voltage
DC 24V ±5%
Voltage of indicator
DC12V ±5%(standard)
Power consumption
30W
Working environment
Indoors or outdoors(outdoor is optional)
