High Speed Access Control Automatic Entrance Wing Turnstile Gate for Subway
High Speed Access Control Automatic Entrance Wing Turnstile Gate for Subway
High Speed Access Control Automatic Entrance Wing Turnstile Gate for Subway
High Speed Access Control Automatic Entrance Wing Turnstile Gate for Subway
High Speed Access Control Automatic Entrance Wing Turnstile Gate for Subway
High Speed Access Control Automatic Entrance Wing Turnstile Gate for Subway
Specifications
Brand Name :
Hongchuangwei
Model Number :
CW507
Certification :
CE
Place of Origin :
Shenzhen,China
MOQ :
10 piece
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
100 pieces per day
Delivery Time :
5-8 working days
Packaging Details :
wood cases
Case Material :
S304
Supply voltage :
AC220V±10%，50/60HZ
Production Process :
CNC Laser Cutting
Working temperature :
-25℃+70℃
Communication :
RS485 electrical standard
Way to control :
full automatic
Relative humidity :
≤90%, no condensation
Switching time :
1 second
Description

High Speed Access Control Automatic Entrance Wing Turnstile Gate for Subway

Product introduction


A unique incomplete gear transmission system is adopted to make the gate lock and unlock at the zero position more accurate and reliable.There are a variety of working modes to choose from, you can read the card in both directions, or you can read the card while reading the card in the other direction, and the driver's working mode can be set through the supporting software
When the power is cut off,the door wing automatically retracts into the environment,and it is in an unobstructed state at any time,and personnel can pass freely to prevent panic.

Flap turnstile, one type of the access management equipment, is mainly used for pedestrian access management,with the fast opening safe and convenient characteristics, is the ideal pedestrian high frequency access mangment equipment,organically integrating machinery electronics microprocessor control,and all kinds of different reading and writing equipment. Through figuring all kinds of different reading and writing equipment,and adopting reliable performance safety protection devices real-time alarm system, and direction indicator interface, realizing the access intelligent control and management by the mutual coordination .

Parameter

Product model CW507

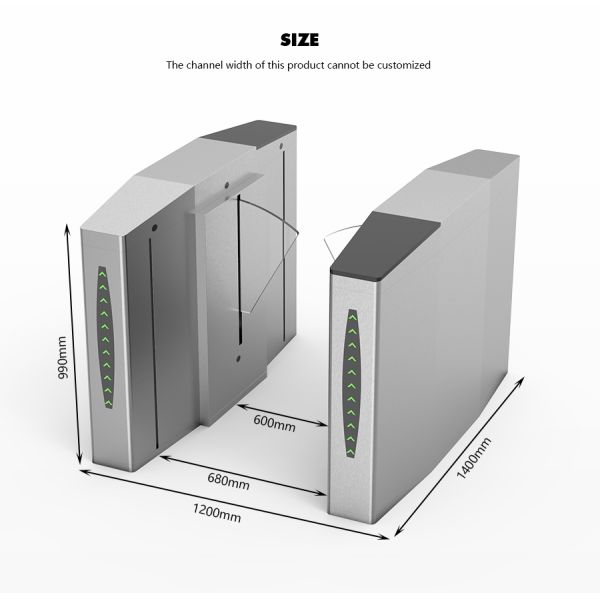

Chassis size 1400*300*990mm
Motor DC 40W
Rated power 70W
Channel width 600mm
Infrared 4 pairs
Door wing material 15mm plexiglass wing door
Operation speed 30~40 people/minute
Trouble-free running times 5 million times

Advantages

1.Unauthorized personnel cannot pass through, and an audible and visual buzzer will sound when breaking in.

2.It has an automatic reset function. After opening the door, if there is no passage within the specified time, the system will automatically cancel the user's permission for this passage, and the passage time can be set.

3.When the power is off, the swing arm automatically opens the chassis and the passage is unobstructed, allowing people to pass freely to prevent panic.

4.Normally open and normally closed modes can be flexibly selected, allowing two-way traffic. The door wing opening and closing speed can also be set according to the flow of people to improve equipment work efficiency.

High Speed Access Control Automatic Entrance Wing Turnstile Gate for Subway
