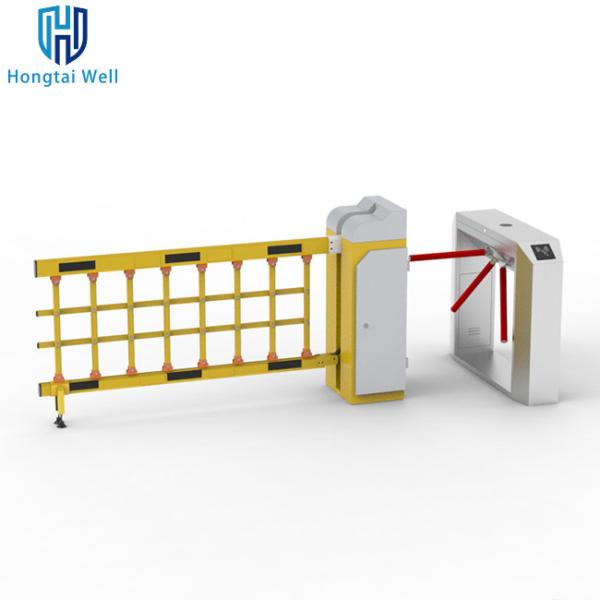

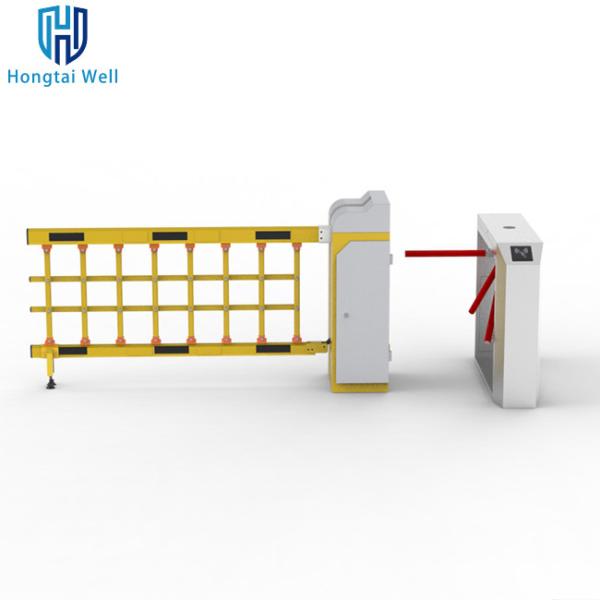

Pedestrian passage gate access control card swiping tripod turnstile
Product Features
CW309 Intelligent bridge-type tripod turnstile,use industrial-grade MCU chip,long life and high stability,high efficiency and anti-tailing,supporting various IC/ID readers,barcode readers,ID card readers,etc.,easy to link with the access control system catch.Widely used in CBD business center,government and enterprise office buildings,high-end residential areas,etc.entrance and exit control.
Can support face recognition, ID card recognition, attendance system, construction site system, access control system, external LED screen
Chrome plating process, high hardness, wear resistance, not easy to deform and wear, good rust resistance, still bright as new after many years
304 stainless steel material, thickened plate, corrosion-resistant, high temperature, rust-proof, durable
Bottom machine cooling holes, details determine quality, cooling holes increase service life to a certain extent
1.Type:full automatic, arm will fall down when power off,and rise when power on automatically.
2.Motor:DC motor
3.Power supply: AC220V±10%,50±10Hz
4.working environment:-25℃ to 70℃
5.Relative humidity,≤90% no condensation
6.Number of passers:30 persons/minute
7.Normal service life: 4 million times
8.Chassis material: standard 304 stainless steel
9.Clear channel width: 550mm
10.The shape of the chassis can be customized according to requirements
| Technical Parameter |
| Product model | CW309 |
| Motor | Brushless motor 24V/60W |
| Power supply | AC220V±10%,50HZ±10% HZ |
| Working environment temperature | -25℃-70℃ |
| Relative humidity | 5%--90% |
| Number of passers | 20~30/min |
| Communication interface | RS485 |
| Normal service life | 5 million times |
| Channel width size | 550mm |
| Boom material | stainless steel |
| Product size | L 1200mm x W 280mm x H 990 mm |
| Chassis frame | Chassis 1.0thiickness Top cover 1.3mm 304 stainless steel |
| Packing weight | About 45KG(single channel) |
Main Functions
1. With fault self-checking and alarm prompt function,it is convenient for users to maintain and use.
2. It can be connected to any control signal or button or remote control output by any control device to realize single and two-way control.
3. Can be arbitrarily set single,two-way free passage.
4. Automatic reset function: automatically reset every 120 degrees of rotation,or the systemwill automatically cancel the permission to pass this time when the pass is not passed within a specified time (the delay is multi-speed adjustable.
5. Light indication: high-brightness traffic light status indication,guide traffic.
6. Anti-tailing function:every time a person turns 120 degrees,if someone is tailing the gate,it will automatically lock and alarm.
7. Fire protection input:It can be connected with the fire alarm signal to realize constant power down and always open.
8. Memory function:Precise signal memory,when receiving legal signals multiple times in succession,it will automatically reset after detecting the last person passing,which greatly improves the speed of passage.
9. Alarm prompt function: automatic alarm prompt when passing illegally or rushing the gate
10. Brake lever is automatically locked and an alarm is issued.When the reverse external force disappears,the passage will automatically resume.
11. Anti-buffer function:When illegally passing or rushing,the brake lever automatically rotates to a corresponding angle and locks,realizing humanized anti-injury.Automatically reset when the external force disappears.
12. Unattended: Automatically drop the pole when power is off, and automatically move on when the power is on
13. Fast and silent: electric power assist, zero mechanical wear.make an appointment 45-60/min
14. Dynamic reminder: When accepting a legal pass signal, the brake lever automatically rotates about 5 degrees,and then softly rotates to the next reset point and then stops.
FAQ
1. How strong is your company?
We have more than 200 employees,50-person R&D team,2 factories,more than 30,000 squares producing factory and 200 product patents.
2. How is the quality of your products?
We use leading brand accessories from Germany,Japan,and China to ensure product quality from the source
3. How do you do after-sales service?
We provide life-long technical support online through e-mail,video,telephone, etc.,7*24 hours a day service
4. How about the lead time?
It takes 7-10 working days for regular products.It takes 15-20 working days for customized products.
5. How long is your warranty period?
One year warranty
6.payment method
T/T, Western Union.
7.The way of Transportation
DHL, UPS, EMS,FedEx,air freight.Ocean freight.
8.How about packaging?
Firstly,we will wrap our goods with protective film.Then will put it in a cardboard box, into a standard export wooden box to protect the goods.
9.If can do OEM and ODM sevice?
Yes,we can
