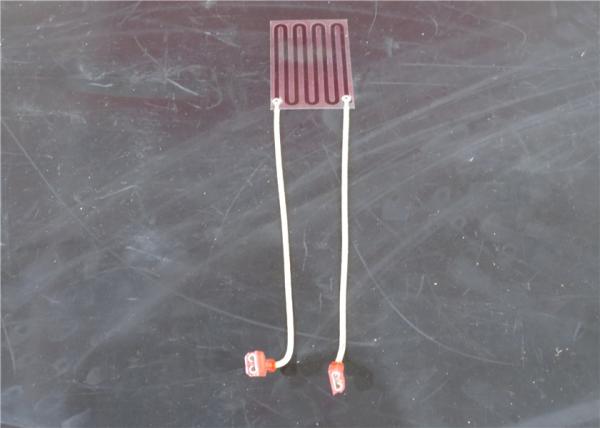

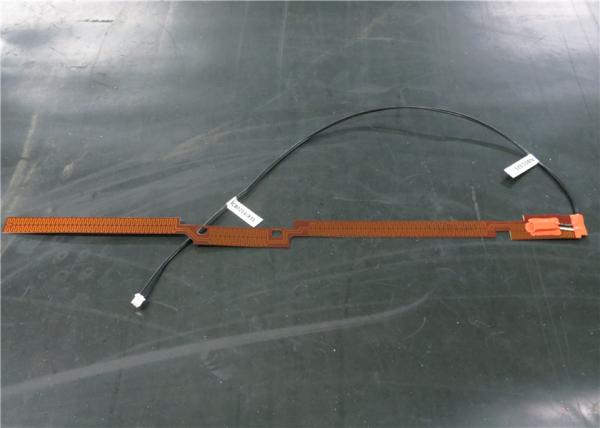

12V 3D Printer Kapton Heater, thin and lightweight organic polymer film

Description for Kapton Insulated Flexible Heater

Kapton Heater is a thin, lightweight organic polymer film which provides excellent tensile strength, tear resistance and dimensional stability.

Salon equipment, car rear view mirror, car wiper, seat heating , shoes gloves heating, anti fog bath mirror,
pet heating pad, insulation cup, melting wax and other small household electrical appliances and plastic injection molding machine.

Rapid heating circuit, holding circuit and temperature control circuit, all these realize the automatic control of the electric heating element. Accurate temperature control, thermal inertia star little, we keep temperature accuracy within 2%.

Specification:

Temperature: -60-130℃ Thickness: Min 0.15mm
Length:Max 500mm,Min 5mm
Width : Max 250mm,Min 5mm
Wattage: Max 1150W,Min 1W
Voltage: Max 240V,Min 3V
Shape: Special design for customer
Mounting: Screw hole,Tape,Spring clip

Applications

1. Medical diagnostic instruments: Heat sample trays, reagent bottles, etc.
2. Stabilize optoelectronic components
3. Test or simulate integrated circuits
4. Enable cold weather operation of outdoor electronics such as laptap, ATM, LCD’s
5. Protect aircraft electronic and mechanical devices in cold weather / area.

Operating temperature: Less than 130℃

Kapton heater can be installed with pressure sensitive adhesive (PSA) directly to heat sinks. This proprietary process installation offers excellent bonding and good heat transfer capability.

According to mounting status, usage, temperature control method, watt density will change over a great range, so please contact us for more consulting.
