Single Head Compressed Air Heater Various Styles For Packaging Machinery
Single Head Compressed Air Heater Various Styles For Packaging Machinery
Single Head Compressed Air Heater Various Styles For Packaging Machinery
Single Head Compressed Air Heater Various Styles For Packaging Machinery
Single Head Compressed Air Heater Various Styles For Packaging Machinery
Single Head Compressed Air Heater Various Styles For Packaging Machinery
Single Head Compressed Air Heater Various Styles For Packaging Machinery
Single Head Compressed Air Heater Various Styles For Packaging Machinery
Specifications
Brand Name :
Tutco
Model Number :
220V-480V
Certification :
UL
Place of Origin :
China
MOQ :
1
Packaging Details :
Exporting Packing
Price :
negotiation
Material :
SS304;SS316,SS321
Reisistance wire element :
Ni-Cr or FeCr
Working temperature :
750ºG max.
Voltage :
240V
Life :
≥4years
Warranty :
18 months
Description

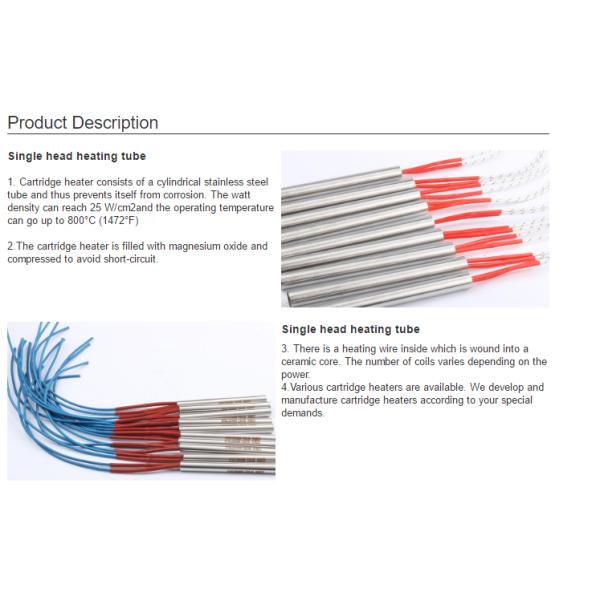

Single head heating pipe wire cartridge heater compressed air heating

Single Head Compressed Air Heater Various Styles For Packaging Machinery

Technical Detail:

1 Tube diameter: Φ3mm-Φ30mm

2 Tube Material:SS304;SS316,SS321,NICOLOY800 etc

3 Insulation Material:High-purity Mgo

4 Reisistance wire element:Ni-Cr or FeCr

5 Lead Connection Option: Crimped or Swaged leads

6 Lead and type of connection leads, 10" Fiberglass Standard(Wire options,silicone high temperature frberglass).

Heat intensity Not exceeding 30Wcm2 (advisable)
Power Depends on the dimension
Escape of current (when cold) <=0.1mA a 242 v.
Insulation (when cold) 5 Min Ohmios 500 Watts minimum
Dielectric strength 1500v. 1/seg
Working temperature 750ºG max.
Tolerance of length +/-1.5%
Tolerance of diameter -0.01 a -0.06 m/m
Tolerance of cut of connexion +/-15 mlm
Power tolerance (w) 5 % - 10 %
Cold areas Depends on length and diameter 5-25mm

Feature:

Commom cartridge can be devideded :

1) High power density (heat area sufuce power 10~25w/cm2)

Working temperature≤450 degrees.

2) Middle,low power density (heat area sufuce power 5~11/cm2)

working temperature≤ 300 degrees

Votage:12~250V (or as requirment)

High Density Construction
High-quality stainless steel construction provides long-lasting protection even in the most rugged industrial environments

Protected with a stainless steel sheath, their watt density can reach 50 W/cm2 and their operating temperature can go up to 800°C.
