Center Dia 35.8mm Twin Screw Plastic Extruder , 500 - 700kg / H Waste Plastic Extruder
Center Dia 35.8mm Twin Screw Plastic Extruder , 500 - 700kg / H Waste Plastic Extruder
Center Dia 35.8mm Twin Screw Plastic Extruder , 500 - 700kg / H Waste Plastic Extruder
Center Dia 35.8mm Twin Screw Plastic Extruder , 500 - 700kg / H Waste Plastic Extruder
Center Dia 35.8mm Twin Screw Plastic Extruder , 500 - 700kg / H Waste Plastic Extruder
Center Dia 35.8mm Twin Screw Plastic Extruder , 500 - 700kg / H Waste Plastic Extruder
Center Dia 35.8mm Twin Screw Plastic Extruder , 500 - 700kg / H Waste Plastic Extruder
Center Dia 35.8mm Twin Screw Plastic Extruder , 500 - 700kg / H Waste Plastic Extruder
Specifications
Brand Name :
ADVS
Place of Origin :
SiChuan, China
MOQ :
1 set
Payment Terms :
L/C, D/A, D/P, T/T
Model Number :
HPL51
product name :
HPL51 twin screw extruder
advantages :
high efficiency ; high quality
service :
integrate control of the whole production layout and equipment
output :
500-700kg
color :
blue
application :
reinforce modification
Price :
USD 34000-200000
Description

PHL51 Twin Screw Extruder Center Diameter 35.8mm Output 500-700kg

1 . Product Description :


Sichuan Advance technology Co . , Ltd is dedicate to develop , design , and manufacture co-rotation , counter- rotation parallel twin screw

extruder production line . we integrate and upgrade these experiences to create our transmission concept and form our core technology "

bilateral gear symmetrical driving system " . The technology enables our extruders have the advantages of " High torque , high efficiency , low

energy-consumption , high price / performance ratio , long service life . " We keep pace with the first class extruder manufactures in the world .


2. Configuration Feartures of HPL51 Screw Extruder :


A . gearbox : bilatral symmetry gear drive system ; design service life more than 72000hrs , average torque coefficient=10.4 , brand of bearing are Sweden SKF and Germany INA ;


B .Torque limiter : torque limiter imported from Germany ;


C . Barrel : integrated wear-resistant alloy steel liner ; Channel of barrel is annular jet type , not easy to belocked ;


D . Scew shaft : material of screw element is W6Cr5Mo4V2 ; Material of shaft is high imported from Finland .


3 . Technical dates of HPL51 standard extruder :

Screw diameter Center distance T / A3 Max . Speed Motor power OD/ID Output range
HPL51 51 mm 42 mm 12 nm/cm3 1200 rpm 200 kw 1.55 460 - 700 kg/h
HPL51 51 mm 42 mm 11.5 nm/cm3 1000 rpm 160 kw 1.55 300 - 500 kg/h


4 . Typical application :

Special Engineering Plastic : PEEK , PEI , PPS , PPSU , PA6T , PA9T , LCP , etc .


High compouding dispersion extrusion : nano material , powder coating and fiber grade masterbatch ;


Reaction extrusion : polyreaction andpolycondension ;

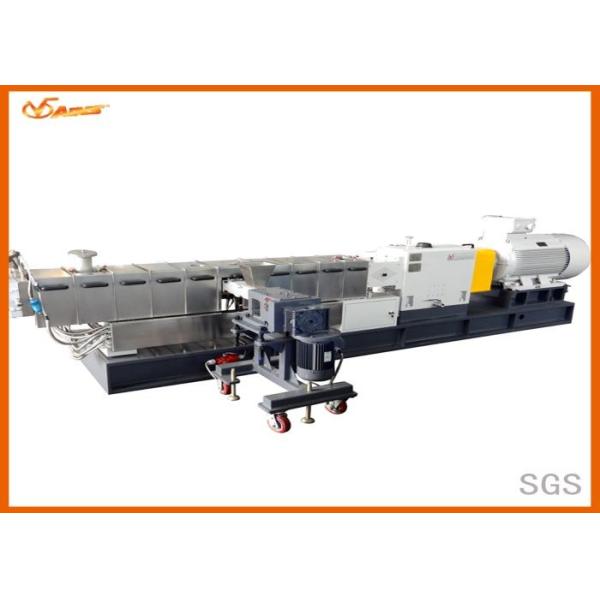

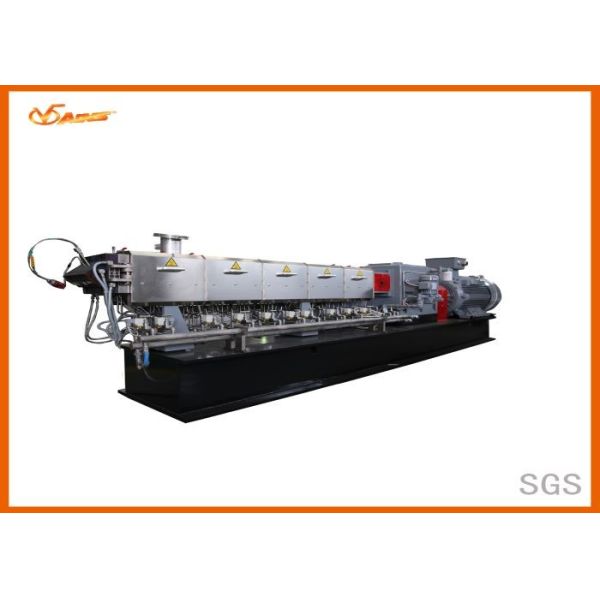

5 . Pictures :

Center Dia 35.8mm Twin Screw Plastic Extruder , 500 - 700kg / H Waste Plastic Extruder

Center Dia 35.8mm Twin Screw Plastic Extruder , 500 - 700kg / H Waste Plastic Extruder
