150 - 500mm Two Stage Extruder , Long Fiber Reinforced Thermoplastics Molding
150 - 500mm Two Stage Extruder , Long Fiber Reinforced Thermoplastics Molding
150 - 500mm Two Stage Extruder , Long Fiber Reinforced Thermoplastics Molding
150 - 500mm Two Stage Extruder , Long Fiber Reinforced Thermoplastics Molding
Specifications
Brand Name :
ADVS
Model Number :
HLFT-D
Certification :
ISO9001
Place of Origin :
SiChuan, China
MOQ :
1
Price :
USD 140000-280000
Payment Terms :
T/T
Supply Ability :
100 sets per year
Delivery Time :
90 days after payment of deposit
Packaging Details :
Wooden base plate, damp proof plastic lining
Application :
Direct molding of thermoplastics
Polymer :
PP,PA
Molding way :
Press Moulding
QTY. of extruder :
1 SET
Description

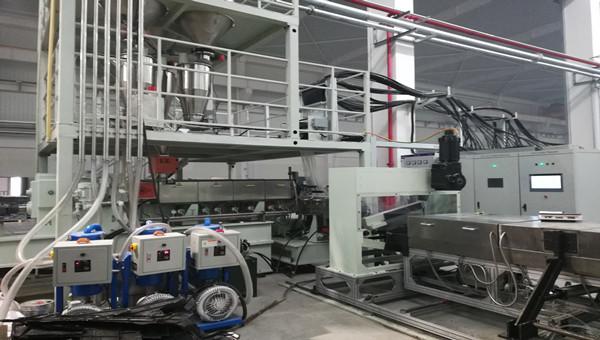

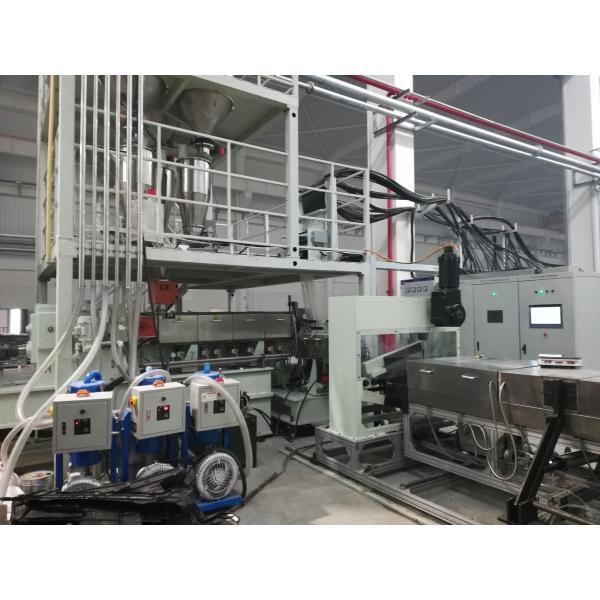

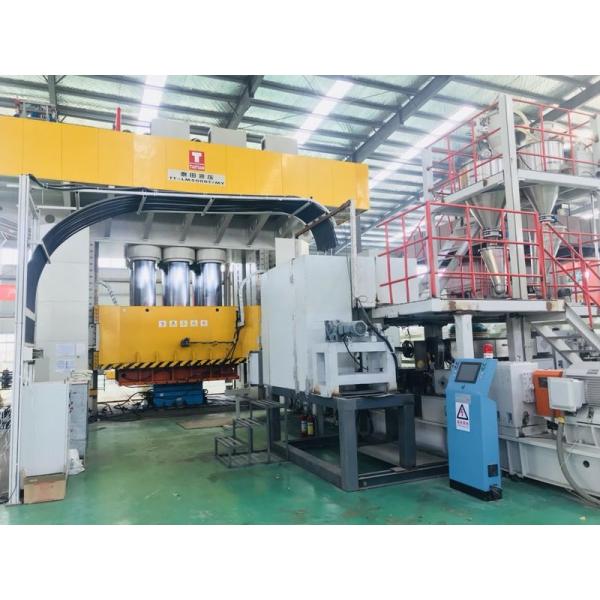

Long-Fiber Reinforced Thermoplastic-Direct Line(LFT-D)two-stage extruder, PP+GF

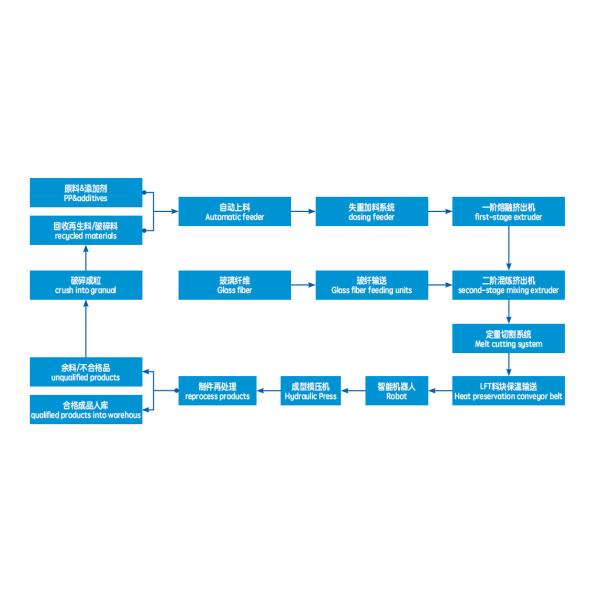

Process of LFT-D line(Two stage)

150 - 500mm Two Stage Extruder , Long Fiber Reinforced Thermoplastics Molding

Technical advantages of LFT-D production lin( two stage)

Parts of line

Advantages description

Transmission gearbox

the most advanced ones: bilateral symmetry gear drive system; the same with the gearbox of German Flanders, Austria EssenBas.Now, the first-line extruder manufacturers in the world, such as Corperion,Berstorff, Leistritz, Toshiba, JSW are using the transmission structure; servcie life of the gearbox≥72000hrs.

 150 - 500mm Two Stage Extruder , Long Fiber Reinforced Thermoplastics Molding
LFTD special screw shaft

special soft mixed screw components. The patented flexible screw element independently developed by our company solve the technical problems of non-cutting and non-uniform dispersion of glass fibers.

 150 - 500mm Two Stage Extruder , Long Fiber Reinforced Thermoplastics Molding
Glass fibre preheating and yarn dividing device makes the glass fibre better preheating and yarn dividing function and better dispersing function when the glass fibre enters the extruder. 150 - 500mm Two Stage Extruder , Long Fiber Reinforced Thermoplastics Molding
Cutter Five kinds of dimension blocks in one molding cycle, precise cutting with smooth surface and no rags. Thickness of products can be continuously adjustable automaticlly. 150 - 500mm Two Stage Extruder , Long Fiber Reinforced Thermoplastics Molding

Technical datas

Type LFTD300B LFTD600B LFTD1200B

LFTD2000B
Extrder output 300KG/H 600KG/H 1200KG/H

2000KG/H
Width of die plate 150mm 200mm 300mm

500mm
Thickness of die plate 8-30mm 10-40mm 10-50mm

15-65mm
Pies. Of GF 48 60 72

120
GF content ~45% ~45% ~45%

~45%
First stage extruder HPL40 HPL62 HPL77

HPL95
Second stage xtruder HPL62 HPL77 HPL95

HPL136
Cutting drive mode Pneumatic/servo Pneumatic/servo Pneumatic/servo

Pneumatic/servo
Press 1000~1500T 2000~5000T 5000~8000T

6000~12000T

150 - 500mm Two Stage Extruder , Long Fiber Reinforced Thermoplastics Molding

150 - 500mm Two Stage Extruder , Long Fiber Reinforced Thermoplastics Molding

About us

We are dedicate to develop, design, and manufacture co-rotation, counter-rotation parallel twin-screw extruder production line.Our extruders have the advantages of “high torque, high efficiency, low energy-consumption, high price/performance ratio, long service life ” (designed service life of gearbox as long as 72000 hrs). We keep the same step with the most advanced extruder manufaturers in the world.
We can supply :Twin screw extruder production line;
High torque gearbox;Automatic long fiber reinforced thermoplastic composites (LFT - D) production line;Counter-rotation parallel twin screw extruder;Differential concentration mixer;
Repairing and machining large parts; Design, machine all of screw elements on Japan and Germany extruders.
