90KW 250mm Twin Screw Extruder Center Distance 186mm
90KW 250mm Twin Screw Extruder Center Distance 186mm
90KW 250mm Twin Screw Extruder Center Distance 186mm
90KW 250mm Twin Screw Extruder Center Distance 186mm
90KW 250mm Twin Screw Extruder Center Distance 186mm
90KW 250mm Twin Screw Extruder Center Distance 186mm
90KW 250mm Twin Screw Extruder Center Distance 186mm
90KW 250mm Twin Screw Extruder Center Distance 186mm
Specifications
Brand Name :
ADVS
Model Number :
ORP-250/10
Place of Origin :
CHINA
MOQ :
1 set
Price :
USD 350000-450000
Payment Terms :
T/T
Delivery Time :
120 work days
Packaging Details :
wooden case
Supply Ability :
20 set/year
product name :
250mm twin-screw evaporation extruder
model :
ORP-250/10
diameter :
246mm
L/D raiton :
7.5
Power (kW) :
90
DO/DI :
2
center distance :
186mm
warranty :
1 year (12 months)
Description

ORP-250/10 twin-screw evaporation extruder

1,SPECIFICATIONS:

NO. ITEMS SPECIFICATIONS QTY
1 Extruder ORP-250/10 1 unit
2 Control system MC-25A electric control cabinet 1 set
3 Vacuum system 1 set
4 Heat conduction system Oil circulation temperature control machine 1 set
5 Parts 1 set
6 Special disassembly tool 1 set
2,TECHNICAL PARAMETERS:
NO. ITEMS PARAMETERS
1 diameter 246 mm (max)
2 L/D 7.5
3 DO/DI 2
4 Center distance 186 mm
5 Power 90 KW
6 Speed ratio 1:4
7 Gearbox speed ratio 18.75:1
8 Shaft A speed 0-20 rpm
9 Shaft B speed 0-80 rpm
10 Barrel length 640 mm/unit
11 Effective volume ≈ 160L

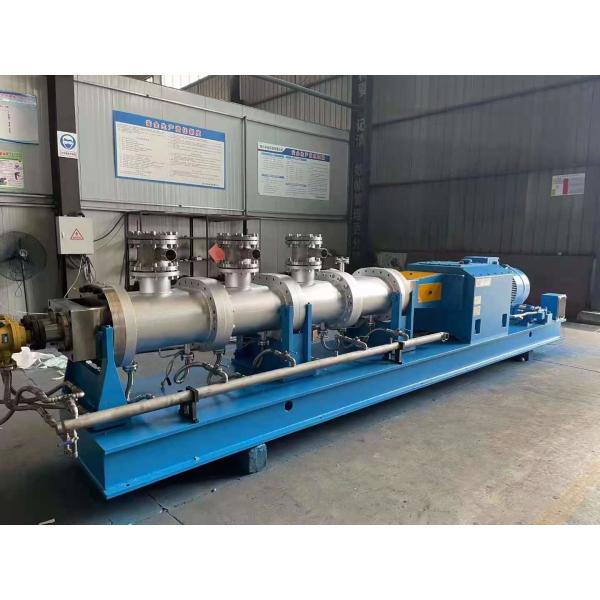

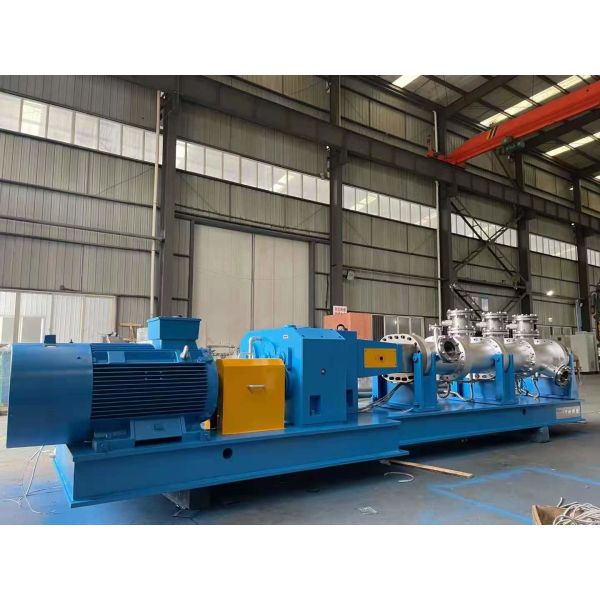

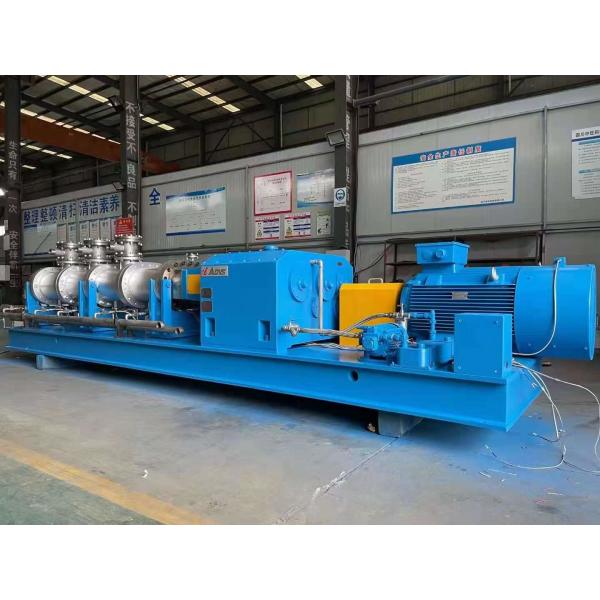

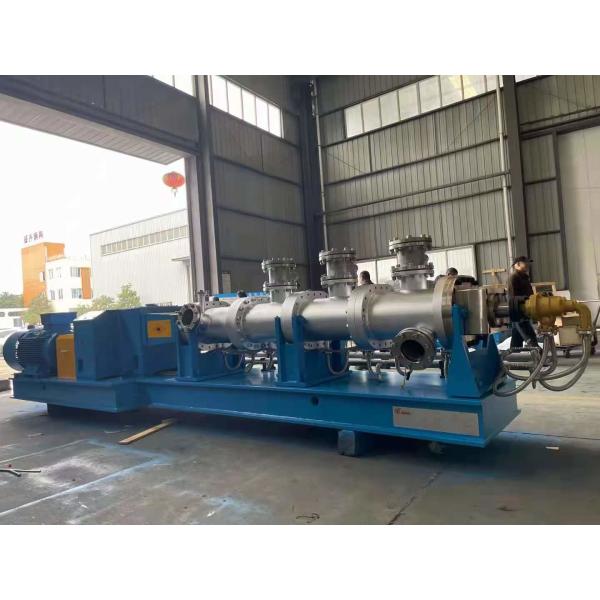

3,Photos:

90KW 250mm Twin Screw Extruder Center Distance 186mm90KW 250mm Twin Screw Extruder Center Distance 186mm90KW 250mm Twin Screw Extruder Center Distance 186mm90KW 250mm Twin Screw Extruder Center Distance 186mm
