316L Model 75 Extruder Machine Parts CNC Machining Standard Screw Elements
316L Model 75 Extruder Machine Parts CNC Machining Standard Screw Elements
316L Model 75 Extruder Machine Parts CNC Machining Standard Screw Elements
316L Model 75 Extruder Machine Parts CNC Machining Standard Screw Elements
316L Model 75 Extruder Machine Parts CNC Machining Standard Screw Elements
316L Model 75 Extruder Machine Parts CNC Machining Standard Screw Elements
316L Model 75 Extruder Machine Parts CNC Machining Standard Screw Elements
316L Model 75 Extruder Machine Parts CNC Machining Standard Screw Elements
Specifications
Brand Name :
Joiner
Model Number :
As request
Certification :
ISO9001
Place of Origin :
Sichuan,China
MOQ :
1 piece
Price :
USD10
Supply Ability :
5000piece/year
Delivery Time :
30-60 days
Packaging Details :
Wood
Material :
Corrosion resistance
Heat treatment :
Vacuum Quenching
Surface treatment :
Sand Blast/polishing
Hardness :
HRC 55-58
Application :
Twin Screw Extruder
Technics :
CNC Machining
Warranty :
6 months
Standard :
GB/ DIN etc.
Payment Terms :
T/T ,L/C
Description

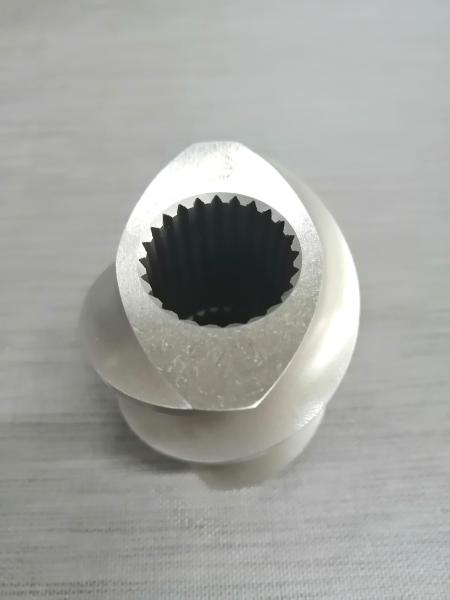

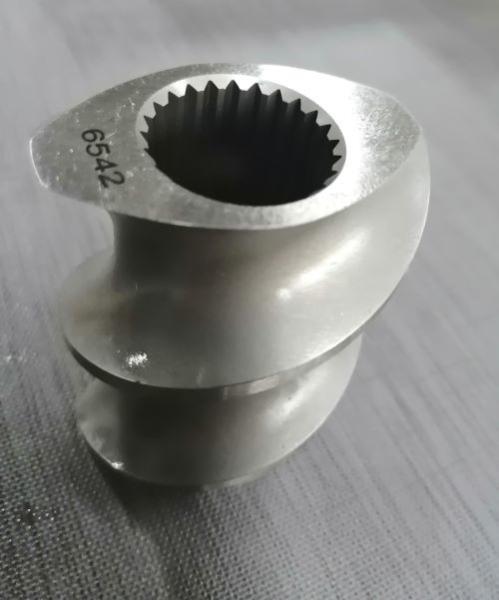

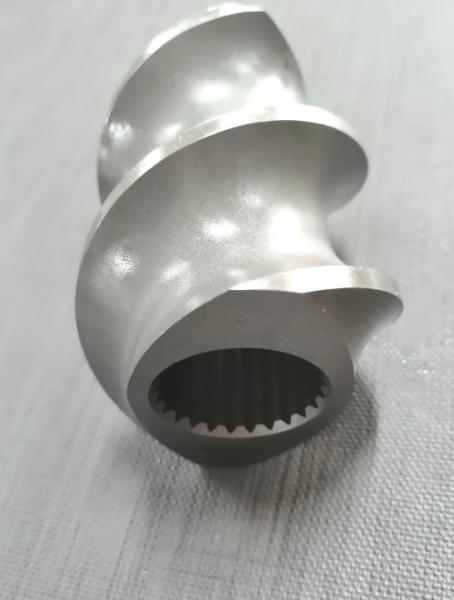

CNC Machining Durable Involute Inner Spline Standard Screw Elements

1. Screw Element​ Details:
Screw Design Double-Screw 316L Model 75 Extruder Machine Parts CNC Machining Standard Screw Elements
Hardness 58-60HRC
Brand Name Jioner
Surface Treatment Polishing/Sand Blasting
Materials SAM10/WR2/WR5/WR14 etc.
Place of Origin Sichuan, China
Warranty 6 months
Screw Range Φ 15.6 - Φ 430mm
Suit For Pharmaceuticals Extrusion Chemical Extrusion Food Extrusion Powder Coating Extrusion

2. Materials:
※ For wear application:
Tool steel: W6Mo5Cr4V2
PM-HIP materials: SAM10, SAM26, SAM39, CPM 10V,CPM9V.
※ For corrosion application:
Nitrided steel: 38CrMoAl
PM-HIP materials: WR4, SAM26, SAM39, CPM 10V,CPM9V.
※ For wear and corrosion application:
PM-HIP materials: SAM26, SAM39, CPM 10V,CPM9V
※ Other materials:
304, 316L, C276 etc.
316L Model 75 Extruder Machine Parts CNC Machining Standard Screw Elements

3. Series Extruder Screw Elements:

Special Screw Segment Convey Screw Element
Mixing Screw Element Kneading Block and disk
Transition Screw Element Screw Element for Side Feeder
Screw Element for Side Feeder

316L Model 75 Extruder Machine Parts CNC Machining Standard Screw Elements

4. Process of making:

316L Model 75 Extruder Machine Parts CNC Machining Standard Screw Elements

5.Heat treatment:

As we all know, heat treatment is very important in the screw production process. In order to ensure the quality of products, Joiner has purchased professional heat treatment equipment to produce, so that we can control the construction process by ourselves. In China, we are the only company that does heat treatment by ourselves, and the heat treatment of screw components made by Nanjing factory is processed by outsiders, so the quality of products can not be completely guarantee.


316L Model 75 Extruder Machine Parts CNC Machining Standard Screw Elements

6. Extruder Screw Elements Packing & Delivery:
Packing Details : Standard packing for Joiner Extruder twin screw extruder parts/extruder spare parts

To product antirust processing ,and then use the paper package,bubble,fixed in the wooden case,after confirm the delivery.
Delivery Time: Shipped in 60 days after payment .
316L Model 75 Extruder Machine Parts CNC Machining Standard Screw Elements

7. Extruder Screw Elements Testing Reports for Our customer
We will send Inspection reports for every our customer.
a.General Dimension Inspection Report
b. Material certificate for customer.

316L Model 75 Extruder Machine Parts CNC Machining Standard Screw Elements
