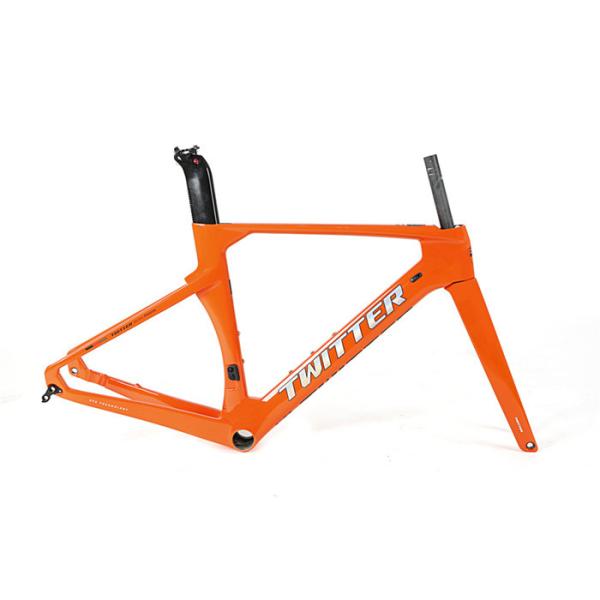

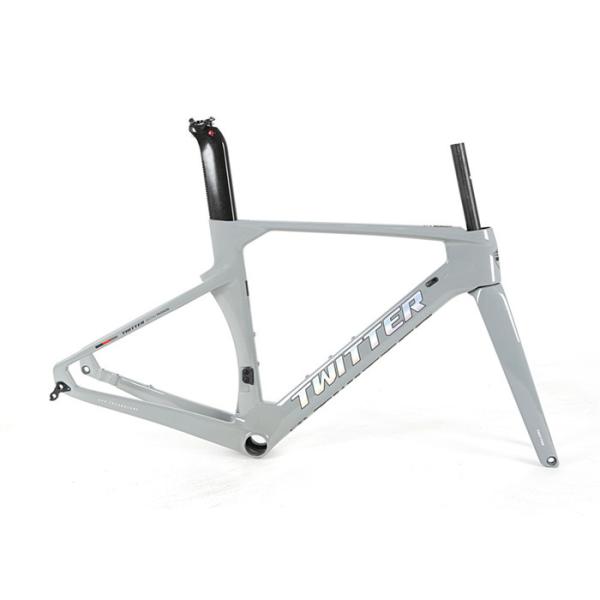

ODM R10 Disc Carbon Road Bike Frame High Strength For Gravel Bike
ODM R10 Disc Carbon Road Bike Frame High Strength For Gravel Bike
ODM R10 Disc Carbon Road Bike Frame High Strength For Gravel Bike
ODM R10 Disc Carbon Road Bike Frame High Strength For Gravel Bike
Specifications
Brand Name :
TWITTER
Model Number :
R10 disc frame
Certification :
CE RoHS REACH ISO9001
Place of Origin :
CHINA
MOQ :
10PC
Payment Terms :
T/T, L/C, D/A, D/P, T/T, Western Union, alipay
Supply Ability :
30000pc per month
Delivery Time :
7-15 working days
Packaging Details :
1.Foam plastic packaging,carton packaging outside.2.Size: 140cm*75cm*20cm.One bike into per carton.3.Container size:290-296pcs into a 40HQ container.120-125pcs into a 20GP container.
Price :
Negotiable
Frame :
R10 disc brake
Size :
46cm / 48cm / 50cm / 52cm / 54cm
Color :
Red Black DarkGray CementGray Silver Orange Blue Yellow White
For BB :
BB86*46 Pressed
Head tube :
52*52&Cover,
Process :
Aero-design, EPS, Inner-Cables, Gloss,UV laser colorful decals
Weight :
Frame 1.39KG, Fork 0.53KG, Seat post 0.25KG
Material :
High modulus Carbon fiber(T800 mix)
OEM/ODM :
Acceptable
Feature :
Hanging fixed to FD
Description

Thru Axle Carbon Disc Road Bike Frame Full Hidden Cable With Carbon Fork

size A B C D E F G H I J K
BB Center to Top of Seat Tube Effective Top Tube Horizontal BB offset Chainstay Length Seat angle Head Angle Front Center Head Tube Length Fork Offset Reach Stack
mm mm mm mm ° ° mm mm mm mm mm
XS - 46cm 450 505 -72 410 75 71.5 577 100 55 370 505
S - 48cm 480 520 -72 410 74.5 72 584 115 55 375 521
M - 50cm 500 535 -72 410 74 72.5 590 135 55 380 542
L - 52cm 520 550 -72 410 73.5 73 595 155 55 384 563
XL - 54cm 540 565 -72 410 73.2 73.5 602 175 55 389 584

Brand:TWITTER
Model/Name:R10-disc carbon road Frame+Fork+Seat post+Headsets+Lever
Frame Size(Height):46cm / 48cm / 50cm / 52cm / 54cm
Material:High modulus Carbon fiber(T800 mix)
ASSY Size:700C, BB86*46 Pressed+Head tube 52*52&Cover, Hanging fixed to FD, Thru axle F12*100_R12*142mm, Flat-mount post, Inner fixed to seat post, max 700*28C tyre
Process:Aero-design, EPS, Inner-Cables, Gloss,UV laser colorful decals
Weight:Frame 1.39KG, Fork 0.53KG, Seat post 0.25KG

R10-disc carbon road Frame+Fork+Seat post+Headsets+Lever

Frame specification:

ODM R10 Disc Carbon Road Bike Frame High Strength For Gravel Bike


Customized Service

1. If you design by yourself, it is better if could provide us your design.

Or we could design for you according to your requirement.

2. MOQ is 300pcs/model

3. Customized logo can be accepted.

4. Color combination is available

After-Sales Service

1. Frame and fork: 1 year's warranty

2. AII the electric components (including the battery); 2 year’s warranty

3. Mechanical parts: 1/2 year's warranty

Feedback

Your satisfaction and positive feedback will be our best return for serving you.
If you feel satisfied with our products and services, please leave us your positive feedback. Your feedback will be highly appreciated and will help us to serve you better. Thank you!If you are not happy with our products and services, please contact us before you submit a negative feedback. Once there is a problem reported, all of our staffs will try best to help you out of the issueoccurred.

Carbon fork


ODM R10 Disc Carbon Road Bike Frame High Strength For Gravel Bike

Why Chose Us

- Factory price

- Logo customized

- Customized packages

- A lots of color for your choice

- OEM manufactured and popular design

- CE, SGS, and other certificates

- Lifelong aftersales tracking

- Stable supply and fast delivery

Inner-Cables, Gloss,UV laser colorful decals

ODM R10 Disc Carbon Road Bike Frame High Strength For Gravel Bike

FAQ

1. how can we guarantee quality?

Always a pre-production sample before mass production;

Always final Inspection before shipment;

2. what can you buy from us?

Bicycle, Bicycle-parts, E-bike

3. why should you buy from us not from other suppliers?

Our company has 10 years experiences in R & D and manufacturing for High-end bicycles, Electric bicycle and related products.
