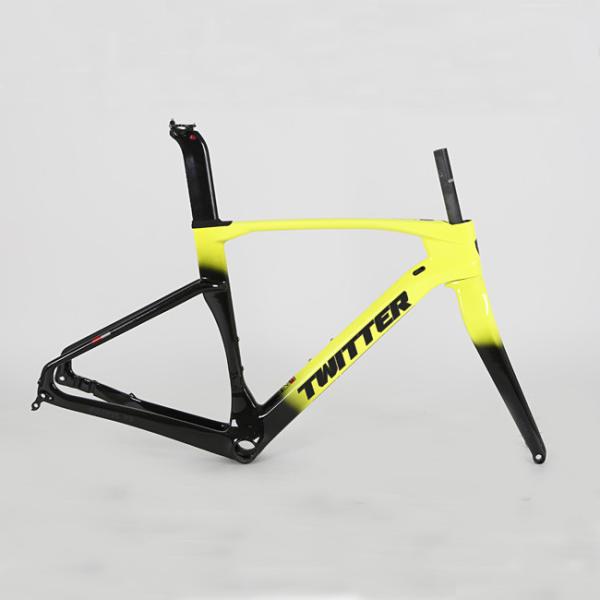

45cm Carbon Road Bike Frame , Hybrid Bike Frameset For 700x40C Tyre
45cm Carbon Road Bike Frame , Hybrid Bike Frameset For 700x40C Tyre
45cm Carbon Road Bike Frame , Hybrid Bike Frameset For 700x40C Tyre
45cm Carbon Road Bike Frame , Hybrid Bike Frameset For 700x40C Tyre
45cm Carbon Road Bike Frame , Hybrid Bike Frameset For 700x40C Tyre
45cm Carbon Road Bike Frame , Hybrid Bike Frameset For 700x40C Tyre
45cm Carbon Road Bike Frame , Hybrid Bike Frameset For 700x40C Tyre
45cm Carbon Road Bike Frame , Hybrid Bike Frameset For 700x40C Tyre
Specifications
Brand Name :
TWITTER
Model Number :
GRAVEL-V2
Certification :
CE, RoHS, REACH,ISO9001
Place of Origin :
Shenzhen CHINA
MOQ :
1PC
Payment Terms :
T/T
Supply Ability :
10000pc per month
Delivery Time :
7-15 working days
Packaging Details :
1.Foam plastic packaging,carton packaging outside.2.Size: 105cm*50cm*25cm.two frames into per carton.
Price :
Negotiable
Product Name :
Carbon Road Bike Frame
Model/Name :
GRAVEL-V2
Frame Size(Height) :
45cm / 48cm / 51cm / 54cm
Applicable wheel Size :
700*40C
Material :
GRAVEL-V2, high modulus Carbon fiber,XC,EPS,Inner-Cable
BB :
BB86*46*24mm, pressed
Color :
Black ( Red / DarkGray / CementGray / Silver / Orange / Blue / Yellow ), RedWhite
Description

Carbon Fiber Gravel Hybrid Road Bike Carbon Frame For 700*40C Tyre

GRAVEL BIKE FRAME SPECIFICATION:

Model/Name GRAVEL-V2-disc carbon road Frame+Fork+Seat post+Headsets+Lever
Size(Height) 45cm / 48cm / 51cm / 54cm
Material High modulus Carbon fiber(T800MIX)
Aplicated wheel size 700*40C
BB BB86*46 Pressed
Head tube 52*52&Cover
Thru axle F12*100_R12*142mm, Flat-mount post,
Color Black ( Red / DarkGray / CementGray / Silver / Orange / Blue / Yellow ), RedWhite
Process Aero-design, EPS, Inner-Cables, Gloss,UV laser colorful decals
Weight Frame 1.39KG, Fork 0.53KG, Seat post 0.25KG
Finished Matt or Glossy

Carbon Fiber Road Bike Frame Features
1. Internal cable routing system, easy for cables slip through.
2. Tapered head tube design, together with the tapered and straight fork design, which offers a better stiffness for steering and acceleration.
3. Strong chain stay and seat stay design, which offers super stiffness and strength for racing
4. DI2 system available too
5. Maximized stiffness-to-weight ratio design, have a excellent balance for weight-stiffness-strength.

Hybrid road bike frame, shows on detail

45cm Carbon Road Bike Frame , Hybrid Bike Frameset For 700x40C Tyre45cm Carbon Road Bike Frame , Hybrid Bike Frameset For 700x40C Tyre

Road bike frame with EPS Technology

45cm Carbon Road Bike Frame , Hybrid Bike Frameset For 700x40C Tyre

Size of the Frame

45cm Carbon Road Bike Frame , Hybrid Bike Frameset For 700x40C Tyre

Size A B C D E F G H I J K
BB center to top of seat tube effective top tube horizontal BB off set Chainstay length Seat angle Head angle Front center Head tube length Fork off set Reach Stack
mm mm mm mm / / mm mm mm mm mm
XS-45 450 510 -74 425 74.3 70 589 100 55 365 516
S-48 480 525 -74 425 74.3 71 596 114 55 375 534
M-51 510 540 -74 425 74.3 71.5 607 130 55 385 550
L-54 540 555 -74 425 74.3 72 618 150 55 395 572
FRAME SIZE WITH RIDER HEIGHT
FRAME SIZE(A) 45cm-XS 48cm-S 51cm-M 54cm-L
Rider Height 160~170cm 165~175cm 175~185cm 185-195cm

Carbon road bike frame with UV laser colorful decals

45cm Carbon Road Bike Frame , Hybrid Bike Frameset For 700x40C Tyre

Different Viewing Angel for the GRAVEL Road bike frame.

45cm Carbon Road Bike Frame , Hybrid Bike Frameset For 700x40C Tyre45cm Carbon Road Bike Frame , Hybrid Bike Frameset For 700x40C Tyre

Mutil Color for optional of the GRAVEL Hybrid road bike frame

45cm Carbon Road Bike Frame , Hybrid Bike Frameset For 700x40C Tyre

Warranty

European quality level

1) Quality is our number 1 focus for the entire team.

2) The design, injection, QA & packaging are all done in-house for efficiency and to standardized a high level of quality control.

3) Warranty is 5 years under normal using (not manmade damage).

4) All of carbon bike frames will be tested before shipping.

5) If you received some not working can show the pictures to us or send it back to us to repair or replace.

Company service

We can provide document when you need export shipping document like CE, Third-party inspections, Certificate of Origin, Form A/B/E, etc.

Our engineering sales will help you choose the very suitable bikes, and we also have the professional international team with more than ten years experiences to give you proposals or guide to import bike cargos from here.
