Bafang Motor Alloy Frame Mountain Bike Electric 48V 10A Battery 350W-750W
Bafang Motor Alloy Frame Mountain Bike Electric 48V 10A Battery 350W-750W
Bafang Motor Alloy Frame Mountain Bike Electric 48V 10A Battery 350W-750W
Bafang Motor Alloy Frame Mountain Bike Electric 48V 10A Battery 350W-750W
Bafang Motor Alloy Frame Mountain Bike Electric 48V 10A Battery 350W-750W
Bafang Motor Alloy Frame Mountain Bike Electric 48V 10A Battery 350W-750W
Specifications
Brand Name :
TWITTER
Model Number :
E5-MID-NX-11S
Certification :
CE CCC ISO9001
Place of Origin :
Shenzhen CHINA
MOQ :
50PCS
Payment Terms :
T/T
Supply Ability :
10000pcs/month
Delivery Time :
20-35 days
Packaging Details :
Dimensions:140*75*20cm/ctns l 120-125pcs/20GP container, l 290-295pcs/40HQ container
Product Name :
electric mountain bike
Model/Name :
electric bicycle E5-MID
Frame Size(Height) :
15"/ 17"/19"
Material :
Aluminum alloy AL6061,Smooth welding&inner Cable
Derailleur :
SRAM NX-11S
Fork :
Aluminum alloy, Coil suspension, Manual-lockout
Tire :
INNOVA, 27.5"/29"×1.95"
Brake :
Z.STAR cable-pull Disc brake
Battery :
LH18650 Power Lithium, 48V10Ah
Motor :
BAFANG-BBS,Mid drive,48V350W / 500W / 750W
Monitor :
BAFANG,LCD digital display control instrument
Wheel size :
27.5"/29"
Description

48V10A Battery 350W-750W Bafang motor

SRAM NX 11 speed electric mountain bike bicycle

Company information

Quality is our number 1 focus for the entire team.The design, injection, assembly, QA & packaging are all done in-house for efficiency and to standardized a high level of quality control.Warranty is 1 year under normal using(not man made damage).All of bikes will be tesed before shipping.If you received some not working can show the pictures to us or send it back to us to repair or replace.

Shenzhen First bicycle technology Co., Ltd specialize in Road bike,mountain bike,folding bike,e bike,children bike and accessories(bike frame,fork,wheels and etc) for 15 years.Exported products all over the world .Our markets include: Southest of Asia markets;America , Europe Middle East and etc.Our teams are full of passion and professional.

Bike Model E5-Mid Electric Parameters Specification
ConfRev 48V10A350W (500W / 750W) Riding mode Electric Power Assist (5 Shifts)
Wheel Size 27.5“ / 29" Pure Electric (5 shifts)
Frame Height 17" / 19" Pure Human Riding (10S)
Bike Color BlackRed / BlackGreen / BlackGray Endurance Mileage Electric Power Assist,90~130KM
Net Weight ≈19.9 KG Pure Electric,50~70KM
Frame E5, alloy AL6061,Smooth welding&inner Cable,Matte,UV decals Motor Assist speed Max 40KMH, Optional speed limit 25KMH
Handelbar Sets Alu alloy with Matte,Hb31.8*680,St90,Sp31.6*350mm Max Load 150 KG
Clamps Alu alloy,Quick Release 34.9mm Battery LH18650 Power Lithium, 48V10Ah
Fork KST Alu alloy, Coil suspension, Manual-lockout with USB2.0 port 5V2A (For phones, etc.)
Head Sets Alu alloy CNC 44mm Full charging Time 4-6 Hours
Washer Alu alloy 3×28.6×10mm Charging Times >1000 Times
Derailleur Lever RETROSPEC(LTWOO)-10 speeds Charging Protect Overvoltage,Overcurrent Protection,etc.
Front Derailleur None ShortCircuit,ReversecConnection Protection,etc.
Rear Derailleur RETROSPEC(LTWOO)-10S Motor BAFANG-BBS,Mid drive,48V350W / 500W / 750W
Cranksets Matching with Mid Motor 44T with cover DC Brushless,Toothed,Low resistance&noise
Cassettes SUGEK-10S,11-36T Max Torque ≈80 N.M
Chain YBN-10S Waterproof grade IP65
BB Matching with Mid Motor Controller BAFANG,5 Shifts IC control system,Built-in Motor
Brake Z.STAR cable-pull Disc brake Sine wave intelligent control
Hub RS Alu alloy, 2-sealed Bearings, Disc brake, Slotted Monitor BAFANG,LCD digital display control instrument
Rim Alu alloy with Double-wall&Rivets, W24×H19mm Display Function MPH,Miles,Electricity,Shift,Failure,etc
Spoke SHUNJIU, Circular 14G, Bend head Setting Function Mileage cleared,Wheel size,etc
Tire INNOVA, 27.5"/29"×1.95" Waterproof Grade IP65
Grips Circular, 22.2×130mm&2-locking ring,Comfortable Assist Sensor Built-in motor, Speed(cadence)
Saddle Comfortable and Thickened for MTB Throttle Stepless speed regulation Lever
Pedals WP-625 Alu alloy with lubricating for MTB Brake power off Power off brake Lever and Pedal Stop
Cables JAGWIRE,Internal cables,External cables Speed sensing External speed sensor to Wheel
Accessories Steel rear kickstand+Tools Wire connector All waterproof quick connector

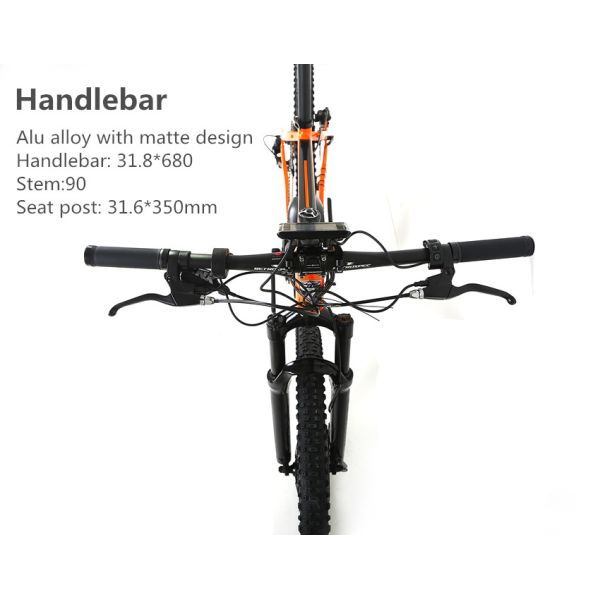

Frame feature: Alu alloy with Matte,Hb31.8*680,St90,Sp31.6*350mm

Bafang Motor Alloy Frame Mountain Bike Electric 48V 10A Battery 350W-750W

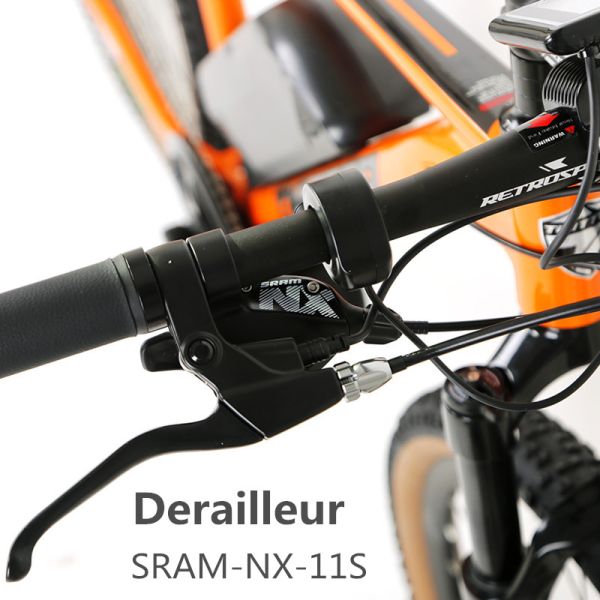

Derailleur Lever: SRAM NX-11S

Bafang Motor Alloy Frame Mountain Bike Electric 48V 10A Battery 350W-750W

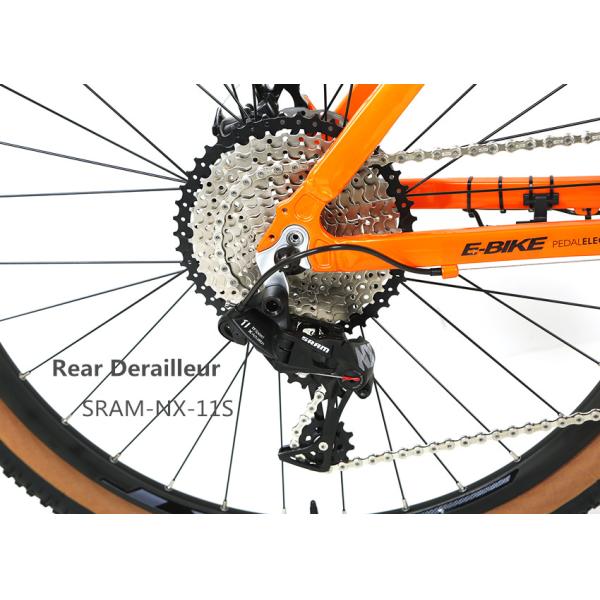

Rear Derailleur: SRAM NX-11S

Bafang Motor Alloy Frame Mountain Bike Electric 48V 10A Battery 350W-750W


Packaging & Shipping

Bafang Motor Alloy Frame Mountain Bike Electric 48V 10A Battery 350W-750W

Why Chose Us

- CE, SGS, and other certificates
- Factory price
- Logo customized
- Customized packages
- A lots of color for your choice
- OEM manufactured and popular design
- Lifelong aftersales tracking
- Stable supply and fast delivery

After-Sales service
1.12 hours /day 6 days /week on-line service.
2. Professional technician and engineer service.
3. Free instructions of driving or riding.
4. Spare parts and components support.
5. Replacement or repair if it is under warranty.

Bafang Motor Alloy Frame Mountain Bike Electric 48V 10A Battery 350W-750W

Bafang Motor Alloy Frame Mountain Bike Electric 48V 10A Battery 350W-750W
