Specifications
Brand Name :
TWITTER
Model Number :
FOREST
Certification :
CE, RoHS, REACH,ISO9001
Place of Origin :
Shenzhen CHINA
MOQ :
10PC
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
10000pc per month
Delivery Time :
7-15 working days
Packaging Details :
Carton Size:105CM*52CM*23CM and Container Quantity:20GP-400pcs
Model/Name :
FOREST full suspension carbon MTB frame
Wheel Size :
27.5'' / 29"
Frame size :
15"/17"/ 19"
Apply to max :
27.5*3.0&29*2.35 tyre
Process :
XC-Lever, Inner-Cables
Finishing :
Gloss&UV laser colorful decals
Description

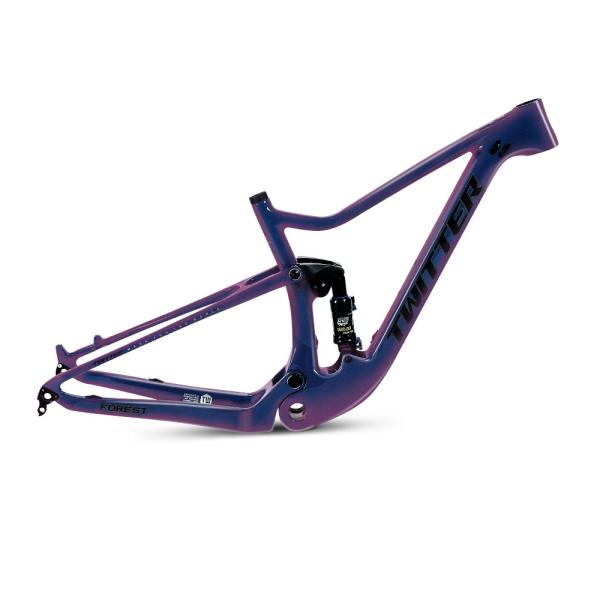

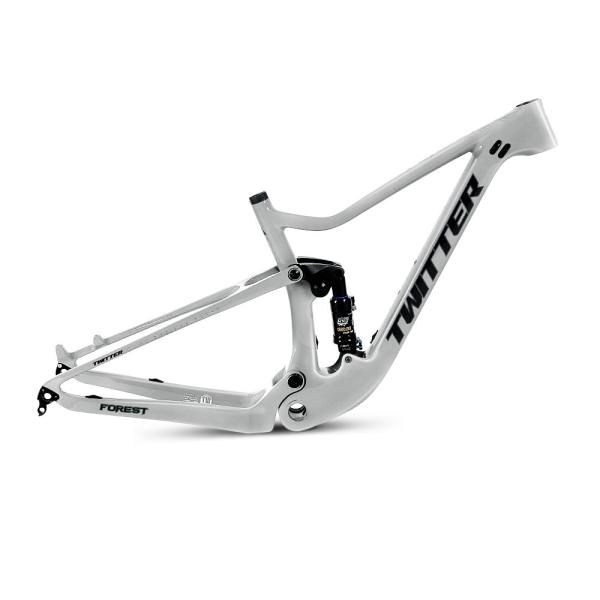

15"17" 19" Carbon Fiber Full Suspension MTB Frame With DNM Rear Shox

Carbon Fiber Full Suspension MTB Frame Mountain Bike Frame With DNM Rear Shox

Brand TWITTER / OEM
Model FOREST full suspension carbon MTB frame
Name Carbon mtb Frame
Wheel Size 29"/27.5"
Frame size 15"/17"/ 19"
Material Carbon T900
Seat post size 31.6mm
Clamp size 34.9mm
Head tube size 42*52mm Tapered
BB width BSA73 threaded
O.L.D 120mm
Apply to tyre max 27.5*3.0&29*2.35 tyre
Brake Disc Brake
Cable Routing Internal
Compatible with Fork Tapered
Level XC, AM
Weight about 2.19KG(17", excluding Rear shox)
OEM Available

FOREST full suspension carbon MTB frame angles:

15

Frame size with Rider Height
Frame size 27.5"*15" 27.5"*17" 27.5"*19" 29"*15" 29"*17" 29"*19"
Rider Height 155-170cm 165-180cm 175-190cm 165-180cm 175-190cm 185-205cm

FRAME GEOMETRY(FOREST)
29ER(27.5+)
SIZE O H E F D C A B K G L R S
S 410 570 663.5 450 42 46 73.8° 68.5° 1110.2 90 500 403.3 573.7
M 440 600 694 450 42 46 73.8° 68.5° 1140.7 95 500 432 578.4
L 490 630 724.9 450 42 46 73.8° 68.5° 1171.7 105 500 459.3 587.7
XL 540 650 745.8 450 42 46 73.8° 68.5° 1192.7 115 500 476.6 597

FOREST full suspension carbon MTB frame colors:

15

FOREST full suspension carbon MTB frame details:

15151515

Our Advantages
1. Competitive Factory Price !
2. Strict quality assurance !
3. Timely & Professional after-sales service !
Company Introduction
>1. Twitter Bicycle factory is located in Longhua Shenzhen and it is an enterprise focusing on the design and development,production and sales for middle-to-high range bicycles, which has more than 100 employees and over 5000 square meters of factory.
>2. The company adheres to excellent design, High-quality products, perfect service, pragmatic prices to meet customer needs and continue tracking of domestic and foreign advanced technology, and strengthen the development of new products.
>3. We main lining bikes(Road bike,mountain bike,folding bike,e bike,children bike and etc) and accessories(bike frame,fork,wheels and etc).Exported products to over the world.
>4. There are 40% in the Southest of Asia markets;10% in the America markets;10% in the Europe markets;10% in the the Middle East and etc.

FAQ
1. Q: Can I get sample and how long will it take?
A: Yes. We can supply sample. And you need to pay for the sample and courier. About 10days after receiving the payment, we will send it out.
2. Q: What's the MOQ?
A: Our MOQ is 50 pcs.
3. Q: Can I have my own customized product?
A: Yes. Your customized requirements for color, logo, design, package, carton mark, your language manual etc. We are very welcome.
4. Q: Can I mix different models in one container?
A: Yes. Different models can be mixed in one container.
5. Q: What's the delivery time?
A: It will take about 25-35 days to finish an order. But the exact time is according to actual situation.
