High Hardness Ungalvanized Steel Wire 1500-1800MPA For Cushion Spring
High Hardness Ungalvanized Steel Wire 1500-1800MPA For Cushion Spring
Specifications
Brand Name :
Fuxing
Model Number :
1.65mm
Certification :
ISO9001, CE, Lloyd's, ISO14001, OHSAS18001
Place of Origin :
China
MOQ :
1 TONS
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
3000 Tons per month
Delivery Time :
20-30 Days
Packaging Details :
Packin in Coils or Z2 Packing.
Steel Grade :
Ungalvanized steel wire
HS Code :
72171000
Standard :
ASTM, BS, DIN, GB, JIS
Wire Gauge :
0.65-4.0
Raw Material :
60#， 65#， 70#，72A
Surface :
Uncoated
Tensile Strength :
1520-1720MPA
Usage :
Used For Binging, Hauling
Description

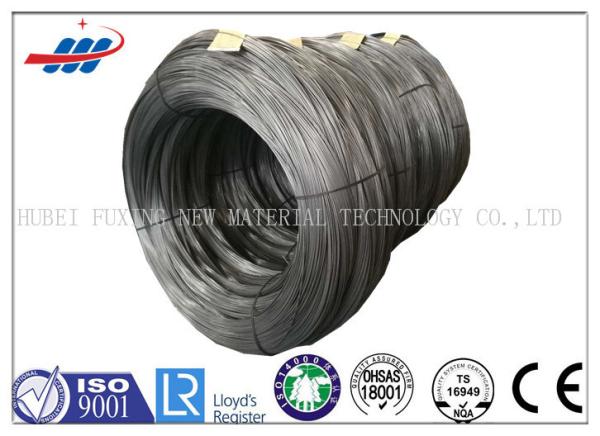

Ungalvanized Steel Wire Used For Cushion Spring , High Carbon Steel Wire , Black Color, Packed in Soft Coils

PRODUCTS DESCRIPTION:

Features:

  • High corrosion resistance after galvanized.
  • High hardness.
  • High tensile strength.
  • High elastic limit.
  • High fatigue resistance.
  • Low weldability and cold plastic deformability.

Specification:

  • Material: 65#, 70#, 72A,
  • Surface treatment: un-galvanized, dip-galvanized.
  • Diameter range: 0.45mm - 5.0mm.
  • Tensile strength: 1500-1800MPA.
  • Elongation: 2.5% - 5.22%.
  • Standard: ASTM,DIN, GB, JIS
  • Packing: spools or coils.

Applications:
High carbon steel wires and its related products are widely used in various fields.

  • The high carbon steel wire ropes used in the lifting tackles and cranes.
  • The high tensile springs required by automobile industry.
  • The welded or woven mining meshes or screens for sizing, sorting and filtrating of different materials used in mining industry.
  • The manufacture of prestressed concrete steel wires or steel strands in construction industry.
  • The manufacture of technical needles and pins use in textiles and light industry.
  • The manufacture of high tensile steel brushes.
  • Used to reinforce tire and high pressure hoses.
  • Working as cable cores or cable armoring.
  • Working as binding wire for bundle bale or other goods and so on.

TECHNOLOGY DETAIL

Used For Spring Of Indoor Decoration.

Carbon spring steel wires
Suitable for using the springs in machinery GB4357-89
Diameter mm Tensile Strength ,MPa
B C D
0.40 1910-2300 2250-2650 2600-2990
0.45 1860-2260 2200-2600 2550-2940
0.50 1860-2260 2200-2600 2550-2940
0.55 1810-2210 2150-2550 2500-2890
0.60 1760-2160 2110-2500 2450-2840
0.63 1760-2160 2110-2500 2450-2840
0.70 1710-2110 2060-2450 2450-2840
0.80 1710-2060 2010-2400 2400-2840
0.90 1710-2060 2010-2350 2350-2750
1.00 1660-2010 1960-2300 2300-2690
1.20 1620-1960 1910-2250 2250-2550
1.40 1620-1910 1860-2210 2150-2450
1.60 1570-1860 1810-2160 2100-2400
1.80 1520-1810 1760-2110 2010-2300
2.00 1470-1760 1710-2010 1910-2200
2.20 1420-1710 1660-1960 1810-2110
2.50 1420-1710 1660-1960 1760-2060
2.80 1370-1670 1620-1910 1710-2010
3.00 1370-1670 1570-1860 1710-1960
3.20 1320-1620 1570-1810 1660-1910
3.50 1320-1620 1570-1810 1660-1910
4.00 1320-1620 1570-1760 1620-1860
4.50 1320-1570 1520-1760 1620-1860


PRODUCTION LINE

High Hardness Ungalvanized Steel Wire 1500-1800MPA For Cushion Spring
High Hardness Ungalvanized Steel Wire 1500-1800MPA For Cushion Spring

TEST EQUIPMENT

High Hardness Ungalvanized Steel Wire 1500-1800MPA For Cushion Spring

High Hardness Ungalvanized Steel Wire 1500-1800MPA For Cushion Spring

High Hardness Ungalvanized Steel Wire 1500-1800MPA For Cushion Spring

Marketing and Services
We located in Hubei which is the thoroughfare of nine provinces, the company enjoys significant advantages in traffic location; our company is only 2 km from Hanjiang, 3 km from Hanyi Railway. We have our own logistics company, and can carry out the transportation through waterway, highway and railway. We have set up powerful marketing network, with more than 60 offices and distribution divisions. Adhering to the marketing principle of "Putting personal morality before work", we provide pre-sales, sales and after-sales services for the clients. Based on 24 hour tracking all the way, we can serve the companies in a prompt and considerate manner.
