Dia 2mm High Tension Galvanized Steel Wire Zinc Coated For Mesh Building
Dia 2mm High Tension Galvanized Steel Wire Zinc Coated For Mesh Building
Specifications
Brand Name :
FUXING
Model Number :
2.0mm
Certification :
ISO9001, CE, Lloyd's, ISO14001, OHSAS18001
Place of Origin :
China
MOQ :
1 TONS
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
3000 Tons per month
Delivery Time :
20-30 Days
Packaging Details :
Packin in Coils or Z2 Packing.
Steel Grade :
Galvanized steel wire
HS Code :
72172000
Standard :
ASTM, BS, DIN, GB, JIS
Raw Material :
60#， 65#， 70#，72A
Type :
Galvanized
Tensile Strength :
1520-1720MPA
Special Use :
Cold Heading Steel
Description

PRODUCTS DESCRIPTION:

1) HS Code: 72172000
2) Standard: Both GB/T 4357-89 , DIN& EN are available.
3) Tensile Strength: 1570 Mpa, 1670Mpa,1770 Mpa,1860Mpa 1960 Mpa etc.
4) Package: Packing in soft coils or Z2, Z3 packing etc.

5) Delivery Time: 30 days after the final confimation of order

How to order:

1. Size: Diameter of the wire in millimeter or inches

2. Coating: Bright(ungalvanized), galvanized or Grease.

3. Packing: In small coils wrapped with oil paper and 2 or 3 big coils packed into one pallet..

4. Grade of wire: Tensile strength of wires.

5. Quantity: By number of coils or reels, by length or weight.

6. Lubrication: Whether lubrication is desired or not, and required lubricant.

7. Purpose: For which steel wire will be used.

8. Breaking Load: Minimum or calculated breaking load in tones or pounds.

9. Remarks: Shipping marks and any other special requirement.

TECHNOLOGY DETAIL

Used For Spring Of Indoor Decoration.

Carbon spring steel wires
Suitable for using the springs in machinery GB4357-89
Diameter mm Tensile Strength ,MPa
B C D
0.40 1910-2300 2250-2650 2600-2990
0.45 1860-2260 2200-2600 2550-2940
0.50 1860-2260 2200-2600 2550-2940
0.55 1810-2210 2150-2550 2500-2890
0.60 1760-2160 2110-2500 2450-2840
0.63 1760-2160 2110-2500 2450-2840
0.70 1710-2110 2060-2450 2450-2840
0.80 1710-2060 2010-2400 2400-2840
0.90 1710-2060 2010-2350 2350-2750
1.00 1660-2010 1960-2300 2300-2690
1.20 1620-1960 1910-2250 2250-2550
1.40 1620-1910 1860-2210 2150-2450
1.60 1570-1860 1810-2160 2100-2400
1.80 1520-1810 1760-2110 2010-2300
2.00 1470-1760 1710-2010 1910-2200
2.20 1420-1710 1660-1960 1810-2110
2.50 1420-1710 1660-1960 1760-2060
2.80 1370-1670 1620-1910 1710-2010
3.00 1370-1670 1570-1860 1710-1960
3.20 1320-1620 1570-1810 1660-1910
3.50 1320-1620 1570-1810 1660-1910
4.00 1320-1620 1570-1760 1620-1860
4.50 1320-1570 1520-1760 1620-1860

Tensile strength table of steel wire(Mpa)

Group Tensile strength
A1 1180-1380
A2 1380-1580
A3 1580-1780
A4 1780-1980
A5 1980-2180
A6 2180-2380

Diameter tolerance of steel wire

Diameter of steel wire(mm) Grade of allowable tolerance
h10 h11 h12
Allowable tolerance
>0.30-0.60 ±0.01 ±0.02 ±0.03
>0.60-1.00 ±0.01 ±0.02 ±0.03
>1.00-3.00 ±0.02 ±0.03 ±0.05
>3.00-5.00 ±0.02 ±0.03 ±0.05

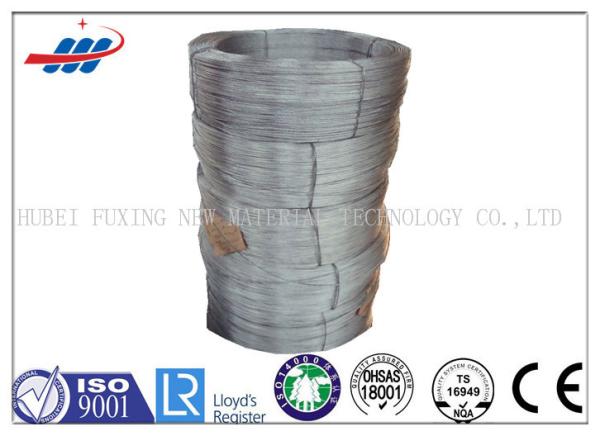

PRODUCT PHOTO

Dia 2mm High Tension Galvanized Steel Wire Zinc Coated For Mesh Building
