Handheld Directional Mimo Panel Antenna Shield Type 428MHz-438MHz
Handheld Directional Mimo Panel Antenna Shield Type 428MHz-438MHz
Handheld Directional Mimo Panel Antenna Shield Type 428MHz-438MHz
Handheld Directional Mimo Panel Antenna Shield Type 428MHz-438MHz
Handheld Directional Mimo Panel Antenna Shield Type 428MHz-438MHz
Handheld Directional Mimo Panel Antenna Shield Type 428MHz-438MHz
Handheld Directional Mimo Panel Antenna Shield Type 428MHz-438MHz
Handheld Directional Mimo Panel Antenna Shield Type 428MHz-438MHz
Handheld Directional Mimo Panel Antenna Shield Type 428MHz-438MHz
Handheld Directional Mimo Panel Antenna Shield Type 428MHz-438MHz
Handheld Directional Mimo Panel Antenna Shield Type 428MHz-438MHz
Handheld Directional Mimo Panel Antenna Shield Type 428MHz-438MHz
Specifications
Place of Origin :
Guangdong, China
Brand Name :
flysafe
Price :
Negotiable
panel directional antennaFrequencyRange :
428-438/860-930/1160-1280/1560-1620/2400-2500/5150-5350/5700-5900MHz
Maximum input power(W) :
50W
Antenna weight(kg) :
3.4kg
Dimensions(Height/Width/Depth) :
390*390*50mm
MOQ :
1
Delivery Time :
7-15 work days
Payment Terms :
LC, T/T
Description
Shield-type Handheld Directional Antenna

Product Description

The 39cm Handheld Panel Directional Antenna is an antenna device specifically designed for use with a particular 39cm handheld device. It realizes wireless communication by receiving and transmitting electromagnetic waves from the 39cm handheld device. The flat plate shape is designed to efficiently focus and direct the signal, thereby increasing the strength and stability of the signal. Its interior usually contains a series of antenna elements and circuits that work together to amplify the weak signals received and focus the transmitted signals in a specific direction. In mobile communications, satellite communications, wireless LANs, etc., the 39cm Handheld Panel Directional Antenna can be used as a base station antenna or terminal equipment antenna to provide a stable signal connection.

Product Paramenters

Electrical Specifications
panel directional antennaFrequencyRange
428-438/860-930/1160-1280/1560-1620/2400-2500/5150-5350/5700-5900MHz
Gain(dBi)
428-438MHz 7dbi
860-930MHz 8dbi
1160-1280MHz 12dbi
1560-1620MHz 12dbi
2400-2500MHz 14.5dbi
5150-5350MHz 17dbi
5700-5900MHz 17.5dbi
VSWR
≤2
Polarization
428-438MHz V
860-930MHz V
1160-1280MHz V
1560-1620MHz V
2400-2500MHz V
5150-5350MHz V
5700-5900MHz H
Horizontal Beamwidth(0º)
428-438MHz 65±10º
860-930MHz 65±10º
1160-1280MHz 65±10º
1560-1620MHz 65±10º
2400-2500MHz 35±5º
5150-5350MHz 22±3º
5700-5900MHz 22±3º
Vertical Beamwidth(0º)
428-438MHz 65±10º
860-930MHz 65±10º
1160-1280MHz 35±10º
1560-1620MHz 35±10º
2400-2500MHz 35±5º
5150-5350MHz 32±3º
5700-5900MHz 32±3º
Front-to-back ratio(dB)
≥20
Electrical lower inclination(0º)
0º
Input Impedance(Ω)
50Ω
Maximum input power(W)
50W
Inpur connector type
1500mm match 7*N-J
Lightning Protection
DC Ground
Dimensions­mm(Height/Width/Depth)
390*390*50mm
Packing size(mm)
430*430*150mm
Antenna weight(kg)
3.4kg
Rated Wind Velocity(m/s)
60m/s
Operational Humidity(％)
10- 95
Radome Color
Black
Radome material
ABS
Operating temperature(ºC)
-30～70 º
Installation Method
handhold
Mounting hardware(mm)
￠30～￠75
Mechanical tilt(º)
0-10º

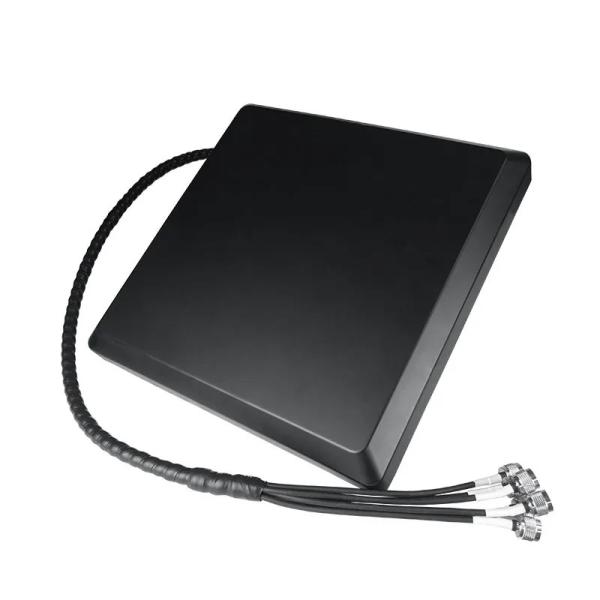

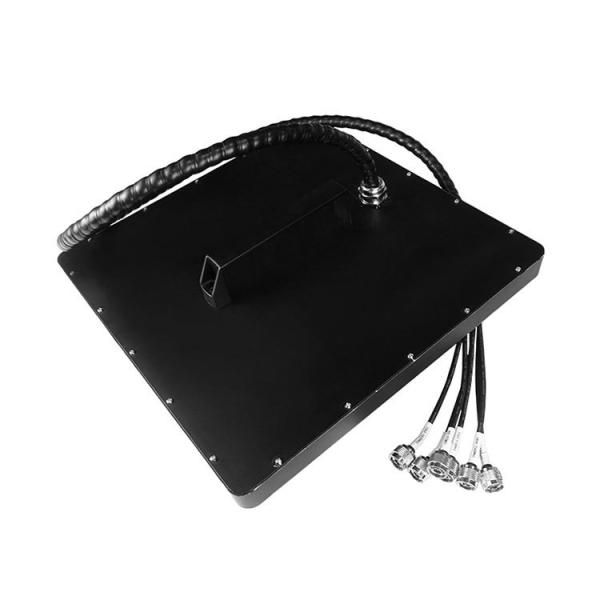

Details Images

Handheld Directional Mimo Panel Antenna Shield Type 428MHz-438MHz
Handheld Directional Mimo Panel Antenna Shield Type 428MHz-438MHz
