Single Board pCB Directional Anti Drone Antenna 1.5G 11dBi For Lora Communication
Single Board pCB Directional Anti Drone Antenna 1.5G 11dBi For Lora Communication
Single Board pCB Directional Anti Drone Antenna 1.5G 11dBi For Lora Communication
Single Board pCB Directional Anti Drone Antenna 1.5G 11dBi For Lora Communication
Single Board pCB Directional Anti Drone Antenna 1.5G 11dBi For Lora Communication
Single Board pCB Directional Anti Drone Antenna 1.5G 11dBi For Lora Communication
Single Board pCB Directional Anti Drone Antenna 1.5G 11dBi For Lora Communication
Single Board pCB Directional Anti Drone Antenna 1.5G 11dBi For Lora Communication
Single Board pCB Directional Anti Drone Antenna 1.5G 11dBi For Lora Communication
Single Board pCB Directional Anti Drone Antenna 1.5G 11dBi For Lora Communication
Single Board pCB Directional Anti Drone Antenna 1.5G 11dBi For Lora Communication
Single Board pCB Directional Anti Drone Antenna 1.5G 11dBi For Lora Communication
Specifications
Place of Origin :
Guangdong, China
Brand Name :
flysafe
Price :
Negotiable
Frequency Range :
1560-1620MHz
Gain(dBi) :
11±1dBi
Maximum input power(W) :
50W
Dimensions(Height/Width/Depth) :
75*130*1mm
Antenna weight(kg) :
0.15Kg
MOQ :
1
Delivery Time :
7-15 work days
Payment Terms :
LC, T/T
Description

1.5G 11dBi Single Board Directional Antenna

Product Description

This 1.5G 11dBi Single Plate Directional Antenna is specially designed for drone defense field. The directional antenna is lightweight and mobile.

The 1.5G 11dBi Single Panel Directional Antenna is compatible with most devices and can significantly increase the range and strength of Wi-Fi

signals. This is a panel antenna that can be used for many types of devices such as gun jammers.

Product Paramenters

Frequency Range
1560-1620MHz
Gain(dBi)
11±1dBi
VSWR
≤1.8
Polarization
vertical
Horizontal Beamwidth(0º)
55±8º
Vertical Beamwidth(0º)
45±5º
Front-to-back ratio(dB)
≥15
Electrical lower inclination(0º)
0º
Input Impedance(Ω)
50Ω
Maximum input power(W)
50W
Input connector type
SMA-K
Lightning Protection
DC Ground
Dimensions­mm(Height/Width/Depth)
75*130*1mm
Antenna weight(kg)
0.15Kg
Operational Humidity(％)
10- 95
Radome Color
Black
Radome material
Epoxy resin double-sided copper clad laminate
Operating temperature(ºC)
-30～70 º
Installation Method
Build-in
Mounting hardware(mm)
￠30～￠75
Mechanical tilt(º)
0-10 º

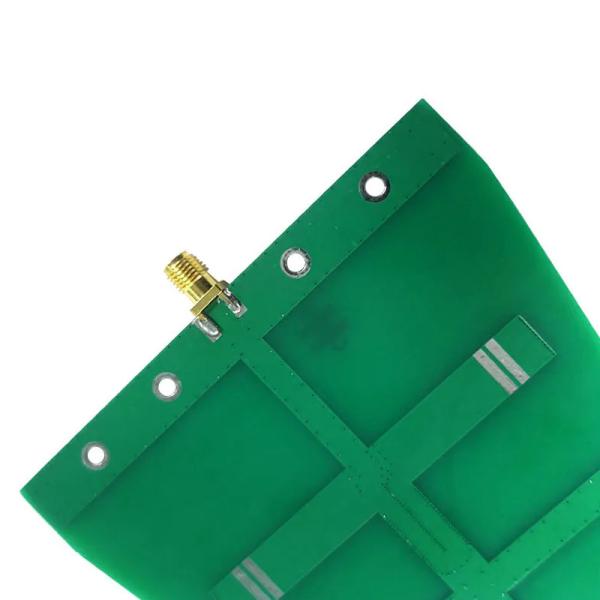

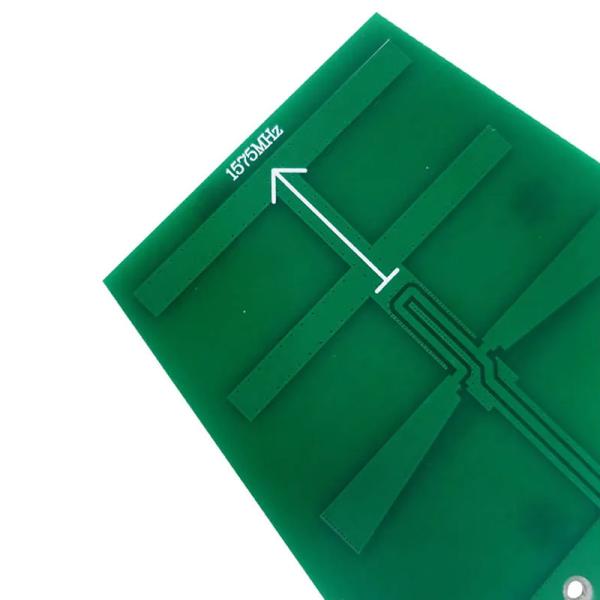

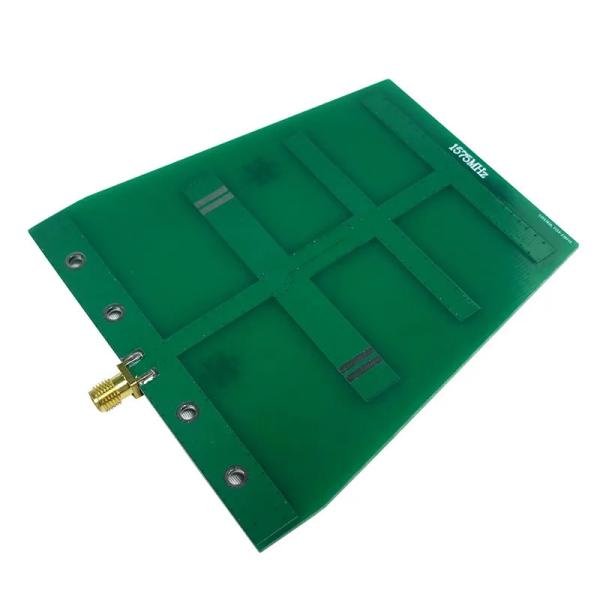

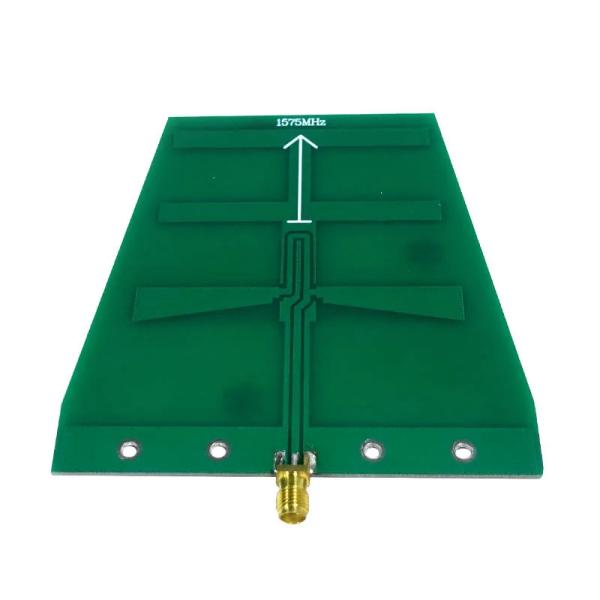

Details Images

Single Board pCB Directional Anti Drone Antenna 1.5G 11dBi For Lora Communication
Single Board pCB Directional Anti Drone Antenna 1.5G 11dBi For Lora Communication
