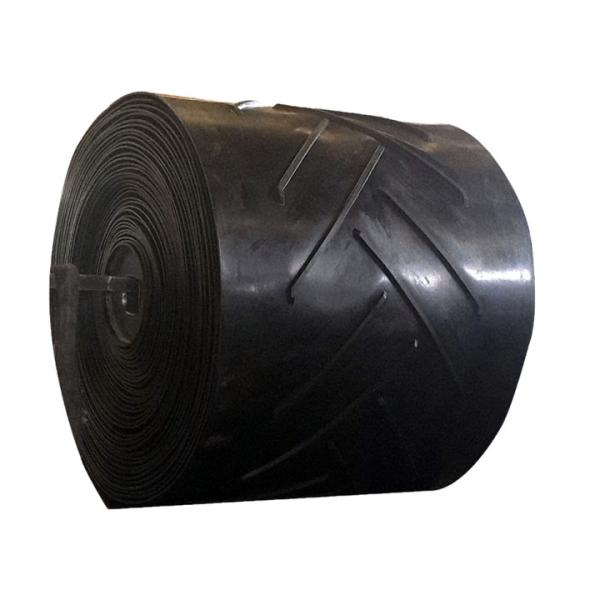

Herringbone Pattern Rubber Conveyor Belts for Smooth Material Conveying
Herringbone Pattern Rubber Conveyor Belts for Smooth Material Conveying
Herringbone Pattern Rubber Conveyor Belts for Smooth Material Conveying
Herringbone Pattern Rubber Conveyor Belts for Smooth Material Conveying
Herringbone Pattern Rubber Conveyor Belts for Smooth Material Conveying
Herringbone Pattern Rubber Conveyor Belts for Smooth Material Conveying
Herringbone Pattern Rubber Conveyor Belts for Smooth Material Conveying
Herringbone Pattern Rubber Conveyor Belts for Smooth Material Conveying
Herringbone Pattern Rubber Conveyor Belts for Smooth Material Conveying
Herringbone Pattern Rubber Conveyor Belts for Smooth Material Conveying
Herringbone Pattern Rubber Conveyor Belts for Smooth Material Conveying
Herringbone Pattern Rubber Conveyor Belts for Smooth Material Conveying
Specifications
Brand Name :
UCER
Model Number :
EP100/EP150/EP200/EP250/EP300
Certification :
Enterprise credit rating AAA
Place of Origin :
China
MOQ :
100 meters
Price :
Negotiable
Payment Terms :
L/C, D/P, T/T
Supply Ability :
10000 per month
Delivery Time :
10-30 days
Packaging Details :
Iron packing, iron frame or other
Color :
Black
Bandwidth :
300mm
Pattern height :
5mm
National Standard :
GB/T7984-2001
Core material :
EP/NN/CP
Pattern type :
Herringbone pattern
Inclination angle :
0-40°
Composition :
Belt and the pattern
Description

Pattern Bandwidth 300～800mm Rubber Conveyor Belts

The pattern conveyor belt is an inclined conveyor belt composed of a cover rubber with a pattern-like working surface and a flat cover rubber with a non-working surface and a belt core. There are "herringbone" patterns on the belt surface that are higher than the belt body. The patterns can be open or closed. Each pattern can be divided into three types: high, medium and low.

The pattern conveyor belt is an inclined conveyor belt composed of a cover rubber with a pattern-like working surface and a flat cover rubber with a non-working surface and a belt core.

Why Choose a Chevron Pattern? This profile is designed for one directional drive pulleys and is also excellent at dispersing liquids and other sticky substances. It is more flexible when compared to the plain rubber option due to gaps in the rubber, which allows the lagging extra room to bend and move with the conveyor belt. The added flexibility also allows the rubber to keep in contact with the same section of conveyor belt and helps reduce overall belt slippage.

1. Features


1) Core material: ordinary cotton canvas (CC), polyester-cotton blended canvas (CP), nylon (NN), polyester (EP), etc.
2) Bandwidth: 300～800mm
3) Pattern height: 5, 10, 15, 20mm Note: The pattern shape can be designed according to user requirements.
4) Features: Suitable for conveying materials with an inclination angle of 0-40° to prevent materials from sliding down.
